DESCRIPTION OF THE DEVICE

Features
The dancefloor as lighting effect
• Extraordinary decoration floor module with LED-technology
• Every panel can carry up to 160 kg due to an especially stable window-pane
• Panel with 288 LEDs
• RGB-colour mixing for 7 static colours and multicolor
• Perfect for halls, discotheques, stages, clubs or even the living room
• Square fields 610 x 610 mm can be extended individually so that complete dancefloors can be created
• Advantages of LED-technology: extremely long life of the LEDs, low power consumption, minimal heat
emission, defacto maintenance free with brilliant light radiation
• Control via optional FUTURELIGHT LC-01 controller
• Booster must be installed after every 25 PPP-60 panels
• After every 30 PPP-60 panels, the fixtures must have a renewed connection with the power mains
Overview

INSTALLATION

This device is only constructed for a standing installation.
The device must only be installed absolutely planar at a vibration-free, oscilation-free and fire-resistant
location. Make sure that the device is installed absolutely planar by using a water-level.
Attention: After every 30 PPP-60 panels, the fixtures must have a renewed connection with the power
mains.
Attention: A booster must be installed after every 25 PPP-60 panels for signal enforcement.
14/30

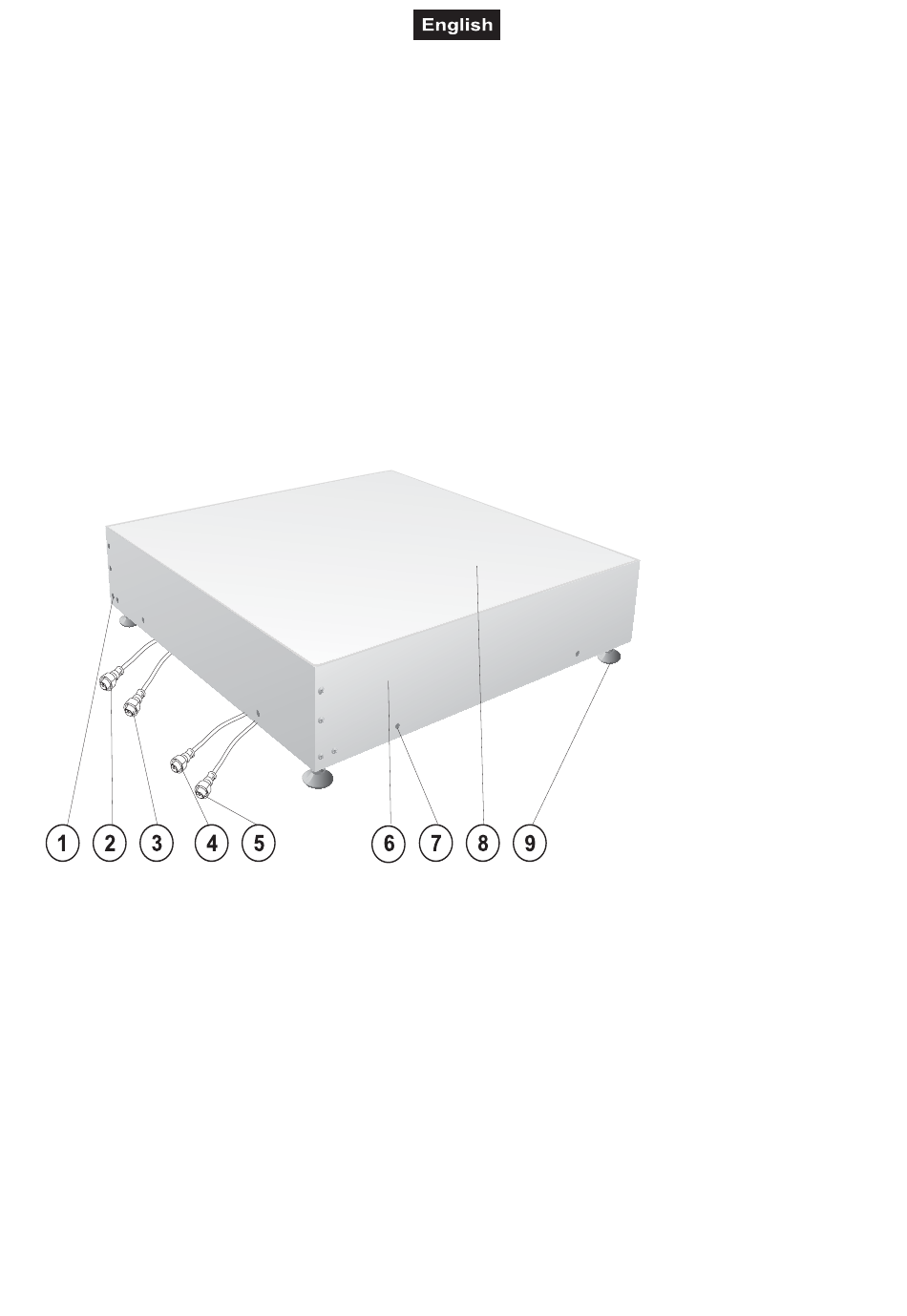

(1) Housing screw
(2) Power supply, 3-pins
(3) Signal input, 5-pins
(4) Power supply output,
3-pins
(5) Signal output, 5-pins
(6) Metal frame
(7) Locking eye for
mounting further panels
(8) Glass plate
(9) Foot
00016794.DOC, Version 1.2
