Product Description
ACROSS THE LINE
JOCKEY PUMP CONTROLLERS
The XTJP jockey pump controllers operate
across-the-line. Full voltage is applied to the
motor for starting by the use of a single motor
starter. Starting inrush current is approximately
600% of rated full load amperes.
WYE-DELTA (Star-Delta)
JOCKEY PUMP CONTROLLERS
When six or twelve-lead delta connected jockey
pump motors are started wye (star) connected,
approximately 58% of line voltage is applied
to each winding. The motor develops 33% of
full-voltage starting torque and draws 33% of
normal locked-rotor current from the line. After
an adjustable time delay (during which the
motor accelerates), it is reconnected for normal
operation.
Product Features
Combination Motor Controllers
All jockey pump controllers are supplied with
EATON combination motor controllers, which
combine the circuit breaker and overload in one
device.
Sealed Rotary Handle Mechanism
The rotary handle mechanism can be padlocked
in the OFF position

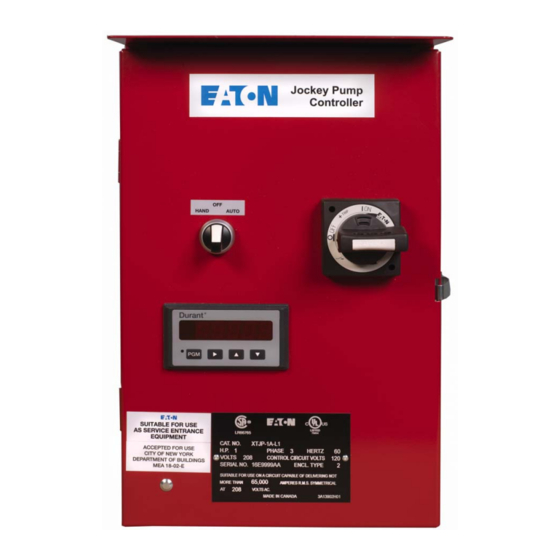

XT SERIES Jockey Pump Controllers
Features
XT Series Jockey Pump Controllers
XT Power Controls
The XT Series of Jockey Pump Controllers
incorporate Eaton's XT Power Controls which
are designed for the global marketplace. The XT
controls carry global ratings, are small in size
and are available in a wide variety of operating
voltages. They are easy to install and maintain,
due to their modular, plug-in design.
120V Control Power Transformer
All jockey pump controllers are wired with a
120V control power transformer as standard.
Technical Data
ACROSS-THE-LINE (Direct On Line) JOCKEY PUMP CONTROLLERS
Line Voltage
200 - 208V 220 - 240V 380 - 415V
Motor Horsepower
1/3 - 15Hp 1/3 - 40Hp 1/3 - 50Hp
WYE-DELTA (Star-Delta) JOCKEY PUMP CONTROLLERS
Line Voltage
200 - 208V 220 - 240V
Motor Horsepower
1/3 - 15Hp 1/3 - 40Hp
(0.74 - 11.03KW) (0.74 - 29.42KW)
Standards & Certification
The XT Series of Jockey Pump Controllers meet
or exceed the requirements of Underwriters Lab-
oratories, Underwriters Laboratories Canada,
the Canadian Standards Association and the
New York City Building Code.
N. Y. C.
APPROVED
For more information visit: www.chfire.com
Digital Display
Eaton's XTJP and XTJY series of jockey pump
controllers are supplied standard with an 1/8
DIN, NEMA 4X digital panel meter that displays
current pressure and hi and low setpoints on a
4-digit, superbright LED display. Pressure input
is provided by a 4-20mA pressure sensor.
NEMA 2 Enclosures
Enclosures have an oven baked powder paint
finish and are supplied with NEMA 2 rating,
unless otherwise ordered. Available options
include: NEMA 3R, 4, 4X, 12.
440 - 480V 550 - 600V 120V 1 ph
1/3 - 50Hp 1/3 - 50Hp 1/3 - 5Hp
380 - 415V 440 - 480V
1/3 - 50Hp 1/3 - 50Hp
(0.74 - 36.78KW) (0.74 - 36.78KW)
1 - 1
March 2012
240V 1 ph
1/3 - 10Hp
550 - 600V
1/3 - 50Hp
(0.74 - 36.78KW)
BR05805077K
