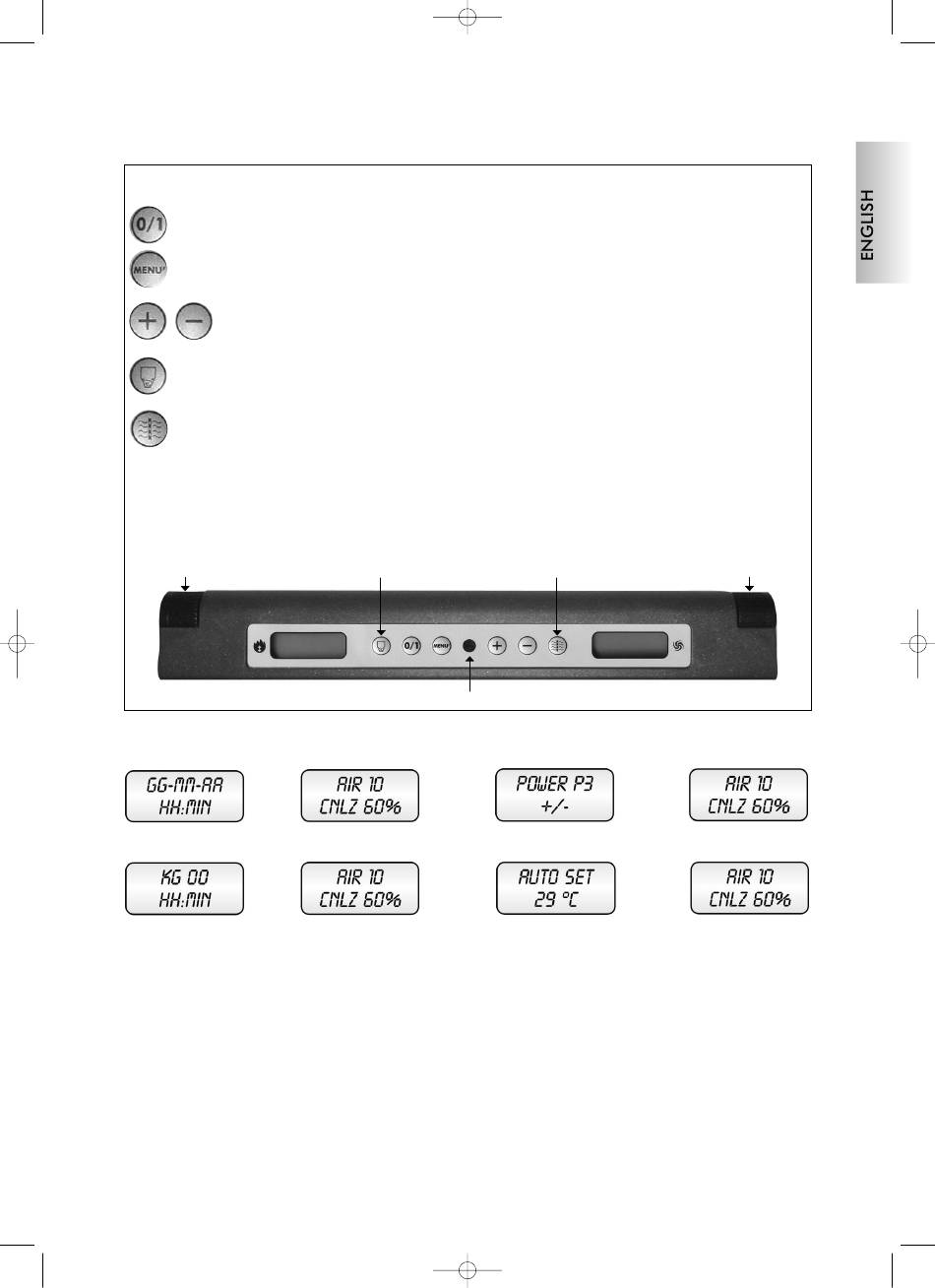

THE INTERFACE
MIMIC PANEL
hold down for 2 seconds to turn stove on or off
opens the menu
(pellet load/reserve key) pressed once it tells the stove that a 15 kg. sack of pellets has been loaded, enabling
the reserve to be monitored (see following page)
(ducting adjustment key) manages hot air flow to ducts, used together with the +/– keys
RH knob: to adjust ventilation (from 1 to 10)
LH knob: to adjust power (from 1 to 5)
Ventilation and ducting levels are displayed on the RH DISPLAY.
The power level or temperature and the reserve or date and time are displayed on the LH DISPLAY.
Power knob
POSSIBLE VIEWS
increases/decreases the various settings
Pellet load / reserve
LH Display
in STAND-BY
03/05/2011
Ducting
Remote control receiver
37
16.36 Pagina 38
Ventilation knob
RH Display
in MANUAL
in AUTOMATIC
