DUCTING INSTALLATION ExAMPLES

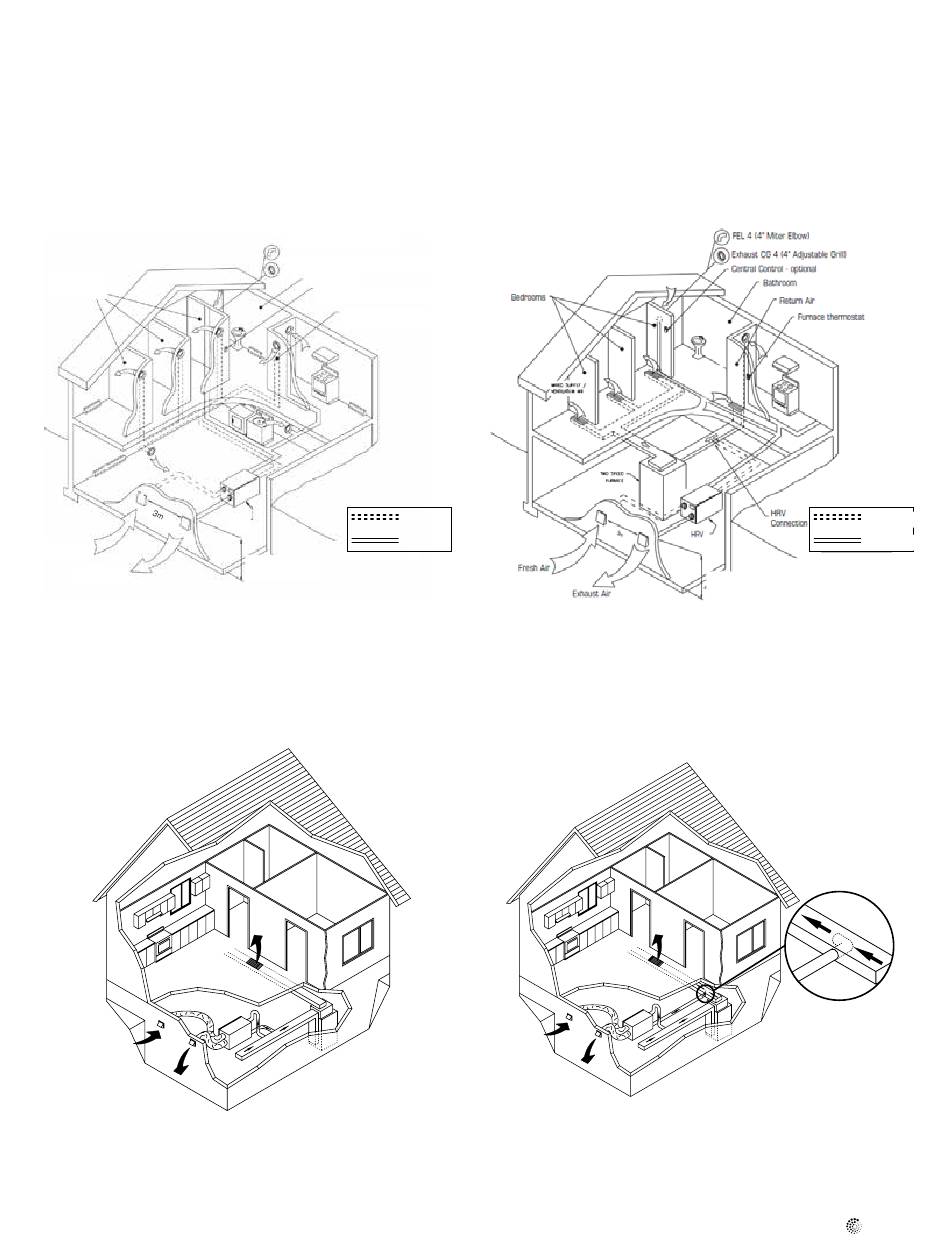

Fully dedicated system

Bedrooms
Fresh Air
Exhaust Air
Simplified installation - Option 1
FEL 4 (4" Miter Elbow)
Exhaust CG 4 (4" Adjustable Grill)
Bathroom
Central Control - optional
Fresh air to living room
Supply
HRV
Exhaust
460 mm

Partially dedicated system

Simplified installation - Option 2
Supply
Exhaust
460 mm
fantech
11
