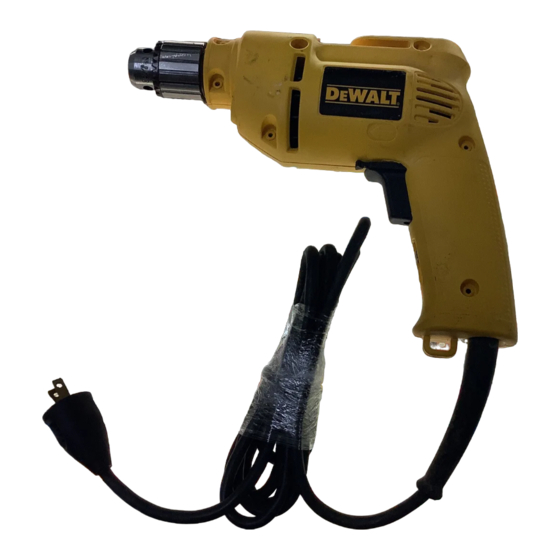

DeWalt DW100 Guide D'utilisation

D WALT Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286
E
Printed in U.S.A. (JUN00-CD-1) Form No. 385907-01
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY D
CALL US TOLL FREE AT:
1-800-4-DEWALT (1-800-433-9258)
General Safety Instructions for All Tools
WARNING! Read and understand all instructions. Failure to follow all instructions listed
below, may result in electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
WORK AREA
• Keep your work area clean and well lit. Cluttered benches and dark areas invite acci-
dents.
• Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust
or fumes.
• Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
• Double insulated tools are equipped with a polarized plug (one blade is wider than
the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit
fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician
to install a polarized outlet. Do not change the plug in any way. Double insulation
eliminates the need for the three wire grounded power cord and grounded power supply
system.
• Avoid body contact with grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is grounded.
• Don't expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
• Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an
outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace dam-
aged cords immediately. Damaged cords increase the risk of electric shock.
• When operating a power tool outside, use an outdoor extension cord marked "W-A"
or "W." These cords are rated for outdoor use and reduce the risk of electric shock.
Minimum Gage for Cord Sets
Volts Total Length of Cord in Feet
120V 0-25
240V 0-50
Ampere Rating
More Not more AWG
Than Than
0 - 6 18
6 - 10 18
10 - 12 16
12 - 16 14
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use tool while tired or under the influence of drugs, alcohol, or medica-
tion. A moment of inattention while operating power tools may result in serious personal
injury,
• Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your
hair, clothing , and gloves away from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
• Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with
your finger on the switch or plugging in tools that have the switch on invites accidents.
• Remove adjusting keys or wrenches before turning the tool on. A wrench or a key that
is left attached to a rotating part of the tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. Proper footing and bal-
DW100 Copyright © 1998,2000
26-50 51-100 101-150
51-100 101-200 201-300
16 16 14
16 14 12
16 14 12
12 Not Recommended
ance enables better control of the tool in unexpected situations.
• Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes,
hard hat, or hearing protection must be used for appropriate conditions.
TOOL USE AND CARE
• Use clamps or other practical way to secure and support the workpiece to a stable
platform. Holding the work by hand or against your body is unstable and may lead to loss
of control.
• Do not force tool. Use the correct tool for your application. The correct tool will do the
job better and safer at the rate for which it is designed.
• Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled
with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making any adjustments, changing
accessories, or storing the tool. Such preventative safety measures reduce the risk of starting
the tool accidentally.
• Store idle tools out of reach of children and other untrained persons. Tools are dan-
gerous in the hands of untrained users.
• Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools,
with sharp cutting edges are less likely to bind and are easier to control.
• Check for misalignment or binding of moving parts, breakage of parts, and any other
condition that may affect the tools operation. If damaged, have the tool serviced
before using. Many accidents are caused by poorly maintained tools.
• Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for one tool, may become hazardous when used on anoth-
er tool.
SERVICE
• Tool service must be performed only by qualified repair personnel. Service or mainte-
nance performed by unqualified personnel could result in a risk of injury.
• When servicing a tool, use only identical replacement parts. Follow instructions in
the Maintenance section of this manual. Use of unauthorized parts or failure to follow
Maintenance Instructions may create a risk of electric shock or injury.
Additional Specific Safety Instructions for Drills
• Hold tool by insulated gripping surfaces when performing an operation where the
cutting tools may contact hidden wiring or its own cord. Contact with a "live" wire will
make exposed metal parts of the tool "live" and shock the operator.
• Wear safety goggles or other eye protection. Hammering and drilling operations cause
chips to fly. Flying particles can cause permanent eye damage.
• Keep handles dry, clean, free from oil and grease. it is recommended to use rubber
gloves. This will enable better control of the tool.
• Do not overreach while operating the tool. Maintain a balanced working stance at all times.
When necessary, use only properly positioned, safe, platforms and scaffolding. WORK SAFE.
• CAUTION:DO NOT TOUCH ANY METAL PARTS OF THE TOOL when drilling or driving into
walls, floors or wherever live electrical wires may be encountered! Hold the tool only by insulat-
ed grasping surfaces to prevent electric shock if you drill or drive into a live wire.
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other con-
struction activities contains chemicals known to cause cancer, birth defects or other reproduc-
tive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber (CCA).
Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are specially designed to filter out
microscopic particles.
• The label on your tool may include the following symbols.
V ..........................volts
A ..........................amperes
Hz ........................hertz
W ........................watts
min ......................minutes
........................alternating current
WALT TOOL,
E
n o ........................no load speed
.......................... Class II Construction
.../min ..................revolutions or reciprocation per minute
........................earthing terminal
........................safety alert symbol
Motor Brushes
D WALT uses an advanced brush system which automatically stops the drill when the brush-
E
es wear out. This prevents serious damage to the motor.
Switches
To start drill, depress trigger switch; to stop drill, release trigger. To lock trigger in "ON" posi-
tion for continuous operation, depress trigger and push up locking button "A" Figure 1, then
gently release trigger. To release locking mechanism, depress trigger fully, then release it.
Before using the tool (each time) be sure that the locking button release mechanism is work-
ing freely.
Do not lock the switch "ON" when drilling by hand so that you can instantly release the trigger
switch if the bit binds in the hole.
The locking button is for use only when the drill is mounted in a drill press stand or otherwise
held stationary.
Be sure to release the locking button before disconnecting the plug from the power supply.
Failure to do so will cause the tool to start immediately the next time it is plugged in. Damage
or injury could result.
THE VARIABLE SPEED TRIGGER SWITCH permits speed control—the farther the trigger is
depressed, the higher the speed of the drill.
NOTE: Use lower speeds for starting holes without a center punch, drilling in metal or plas-
tics, driving screws or drilling ceramics. Higher speeds are better for drilling wood and com-
position boards, and for using abrasive and polishing accessories.
THE REVERSING LEVER is used for withdrawing bits from tight holes and removing screws.
It is located above the trigger switch (B)Figure 2). To reverse the motor, release the trigger
switch FIRST and then push the lever to the right. After any reversing operations, return lever
to forward position.
Operation
DRILLING
1. Always unplug the drill when attaching or changing bits or accessories.
2. Use sharp drill bits only. For WOOD, use twist drill bits, spade bits, power auger bits, or
hole saws. For METAL, use high speed steel twist drill bits or hole saws. For MASONRY,
such as brick, cement, cinder block, etc., use carbide-tipped bits.
3. Be sure the material to be drilled is anchored or clamped firmly. If drilling thin material, use
a wood "back-up" block to prevent damage to the material.
4. Always apply pressure in a straight line with the bit. Use enough pressure to keep drill bit-
ing, but do not push hard enough to stall the motor or deflect the bit.
5. Hold tool firmly to control the twisting action of the drill.
6. IF DRILL STALLS, it is usually because it is being overloaded or improperly used.
RELEASE TRIGGER IMMEDIATELY, remove drill bit from work, and determine cause of
stalling. DO NOT CLICK TRIGGER OFF AND ON IN AN ATTEMPT TO START A
STALLED DRILL—THIS CAN DAMAGE THE DRILL.
7. To minimize stalling or breaking through the material, reduce pressure on drill and ease the
bit through the last fractional part of the hole.
8. Keep the motor running when pulling the bit back out of a drilled hole. This will help pre-
vent jamming.
9. With variable speed drills there is no need to center punch the point to be drilled. Use a
....................direct current
