Before making connections, place all speakers in their respective positions. The positioning of the speakers is important
because it controls the whole sound quality of this system.
Place the speakers depending on your listening position by following the instructions below.

Speaker configuration

< >
NS-P100
This speaker package employs a 6 speaker configuration: 2
main speakers, 2 rear speakers, a center speaker and a
subwoofer.
The main speakers emit main source sound. The rear
speakers emit surround sounds, and the center speaker
emits center sounds (dialog etc.). The subwoofer emits
reinforcing low frequencies on your audio system.
< >
NS-P106
This speaker package employs a 7 speaker configuration: 2
main speakers, 2 rear speakers, a center speaker, a rear
center speaker and a subwoofer.
The main speakers emit main source sound. The rear and
rear center speakers emit surround sounds, and the center
speaker emits center sounds (dialog etc.). The subwoofer
emits reinforcing low frequencies on your audio system.
Note
In this speaker package, the same speakers (NX-E130)
are used for the main and rear speakers (and rear
center speaker for NS-P106).
Main L Center
Rear L Rear center
(for NS-P106)

SETTING UP THE SPEAKERS

Main R
Subwoofer
Rear R

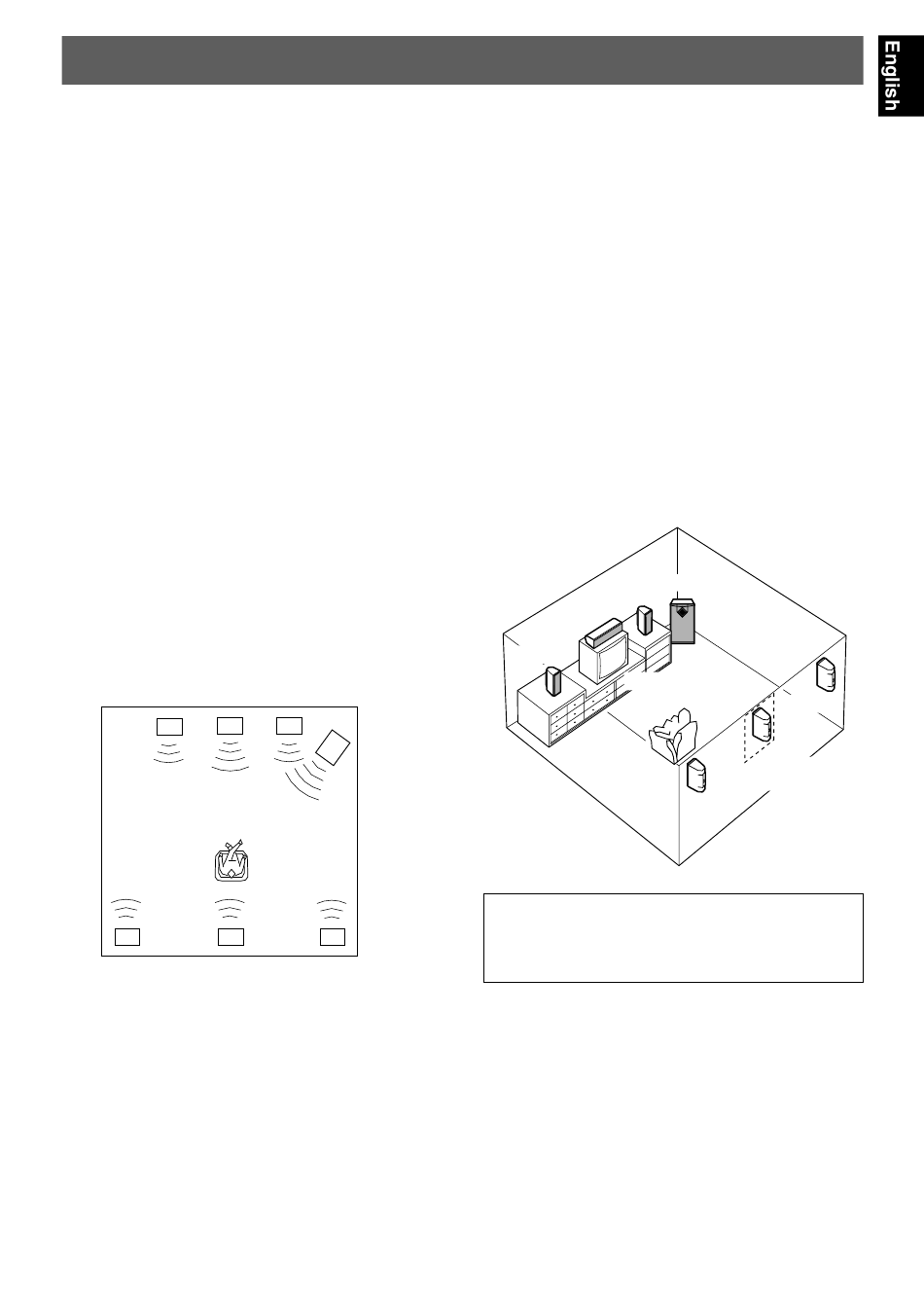

Placing speakers

Main speakers: On both sides of and at approximately
the same height as the TV set.
Rear speakers: Behind your listening position, facing
slightly inward. About 1.8 m (approx. 6
feet) from the floor.
Center speaker: Precisely between the main speakers.
Rear center speaker (for NS-P106):
Precisely between the rear speakers.
Subwoofer: The position of the subwoofer is not so
critical because low bass tones are not
highly directional.
Refer to "Placing the subwoofer" on
page 4 for a recommended positioning
of the subwoofer.
Main R
Center
Main L
TV-set
These speakers feature a magnetically shielded design,
but there is still a chance that placing them too close to a
TV set might impair picture color. Should this happen,
move the speakers away from the TV set.
Subwoofer
Rear R
Rear center
(for NS-P106)
Rear L
