Safety and operating instructions

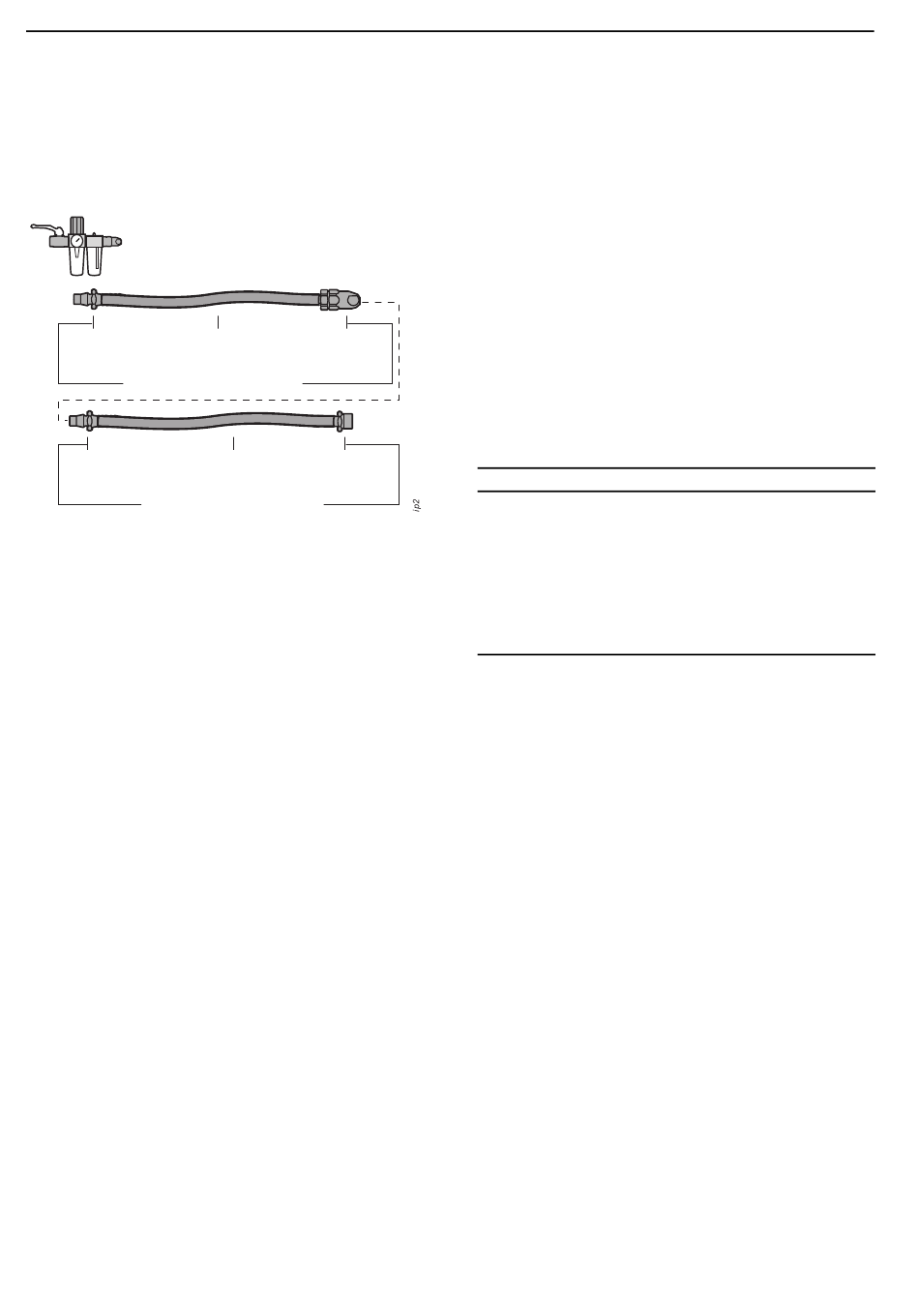

Installation proposal
Choosing the correct couplings, hose and clamps can
be a troublesome digging into details. To save your
time and to ensure correct capacity of the airline in-
stallation, from the tapping point to the tool, we offer
you an installation proposal.
Filtered, regulated and oil fog lubricated air for a
max. air flow of 10 l/s
BALL VALVE + MIDI F/RD 15 + ERGOQIC 10
8202 0829 11
ErgoNIP 10 5 m PVC 10
5 m RUBAIR 10
8202 1180 18 / 8202 1180 43
ErgoNIP 10 0.7 m CABLAIR 10
0.7 m RUBAIR 10
8202 1180 19 / 8202 1180 42
For more information please read, Atlas Copco In-
dustrial Power Tools catalogue Ordering No. 9837
3000 01.
Handling
Start and operation
When starting the machine both rivet punch/percuss-
ive mechanism and throttle valve must be pushed in.
The throttle valve can alternatively – depending
of application type – be operated before or after the
above mentioned step.
For effective vibration damping the mechanism
must operate within its free travel by pushing in the
rivet punch together with the percussive mechanism.
Optimal feed force is given under "Declaration of
noise and vibration emission".
Power control
A
Adjustment can only be carried out when the
machine is disconnected from the air line.
The striking power of riveting hammer can be step-
lessly controlled by turning the valve knob. Maxim-
um power is obtained when the pin and the "+"-sign
in the knob is set in its lower position.
6
EN
ErgoQIC 10
ErgoNIP 10 M08
Nipple
Male 1/4" BSPT
© Atlas Copco Industrial Technique AB - 9836 9751 00
Maintenance
Lubrication
When the riveting hammer is in use, it should be
oiled once per shift. The oil (fluid type), which
should be applied in an amount of 1 cm
dropped into the air hose. When the machine is in
continuous service, installation of an Atlas Copco
oil-fog lubricator is recommended.
A
An excessive amount of oil will prevent the
main valve from functioning. It is therefore
vitally important to lubricate in strict accord-
ance with the recommendations.
Use lubricants of good quality. The oils and grease
delivered by the oil companies mentioned in the table
are examples of lubricants which are recommended.
Grease guide
Brand Grease
BP Energrease LS-EP2
Esso Beacon EP2
Q8 Rembrandt EP2
Mobil Mobilegrease XHP 222
Shell Alvania EP2
Texaco Multifak EP2
Molycote BR2 Plus
Overhaul
If the riveting hammer is used every day, it should
be overhauled and cleaned once every six months.
Regarding instructions for dismantling and assembly,
see separate Service Manual.
The filter behind the adapter should be cleaned
frequently to prevent choking with resultant decrease
in capacity.

Useful information

C Log in to Atlas Copco www.atlascopco.com
You can find information concerning our products,
accessories, spare parts and published matters on our
website.
Ergonomic guidelines
Consider your workstation as you read through this
list of general ergonomic guidelines and see if you
can identify areas for improvement in posture, com-
ponent placement, or work environment.
• Take frequent breaks and change work positions
frequently.
• Adapt the workstation area to your needs and the
work task.
RRH 04P-01
3
, can be
Air lubrication
Energol E46
Arox EP46
Chopin 46
Almo Oil 525
Torcula 32
Aries 32
