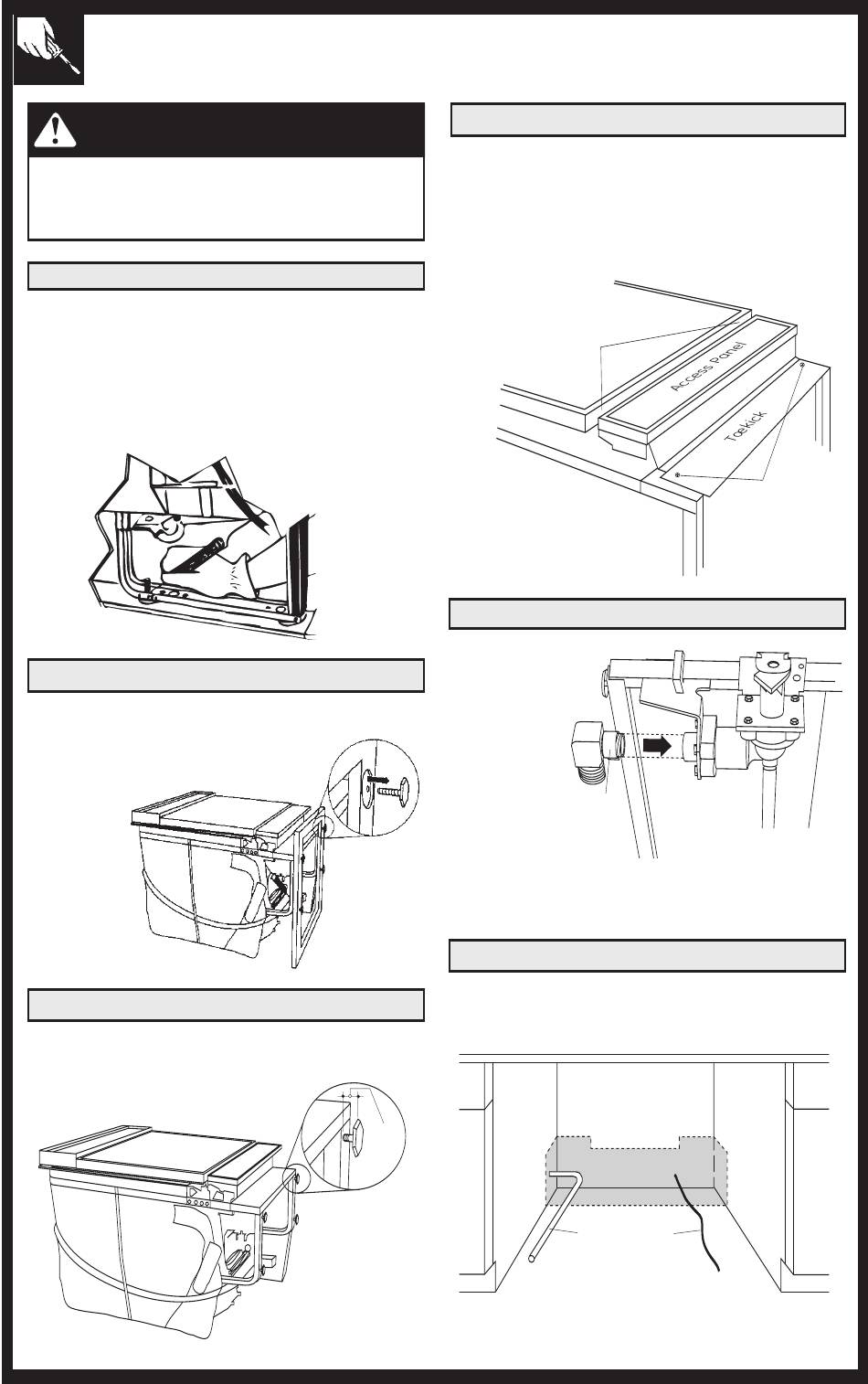

CAUTION
CAUTION
Do not remove the wood base until you are
ready to install the dishwasher. The dishwasher
will tip over when the door is opened.
Check door balance before wood base is removed
Check door balance by opening and closing door.
If necessary latch door and adjust one or both
springs before the wood base is removed.
Moving spring hook to rear hole increases spring
tension.
Spring hook MUST be turned to the outside.
Step 1. Remove leveling legs and wood base
Move the dishwasher close to the cabinet and lay it
on its back. Remove the four leveling
legs with an adjustable wrench.
Remove and
discard the
wood base.
Do not
"Kick"
wood base
off, damage
will occur.
Step 2. Install Leveling legs
Screw leveling legs back into the dishwasher frame.
The legs should extend approximately 3/4" away
from the frame.
16

INSTALLATION INSTRUCTIONS

INSTALLATION INSTRUCTIONS
Figure G
Approx.
3/4"
Figure H
Step 3. Remove access panel and toekick
Unscrew partially the two screws on the top of the
access panel. Remove the two screws below the
access panel and set aside for reuse. Remove access
panel by sliding the access panel sideways. The
junction box is located behind the access panel.
Unscrew partially
2 screws
Figure I
Step 4. Install 90° elbow
Install the 90°
elbow fitting to
the water valve
using thread
seal tape on the
threads. The
water valve
requires 3/8"
NPT fitting
Thread
Seal
with external
Tape
threads. The
opposite end
should fit water supply line. Position the end of the
elbow to face the rear of the dishwasher.
Step 5. Position water line and power supply
Position the water supply line and house wiring on the
floor of the opening to avoid interference with base of
dishwasher and components under dishwasher.
Water
Line
Remove
2 Screws
Figure J
Power
Supply
Figure K
