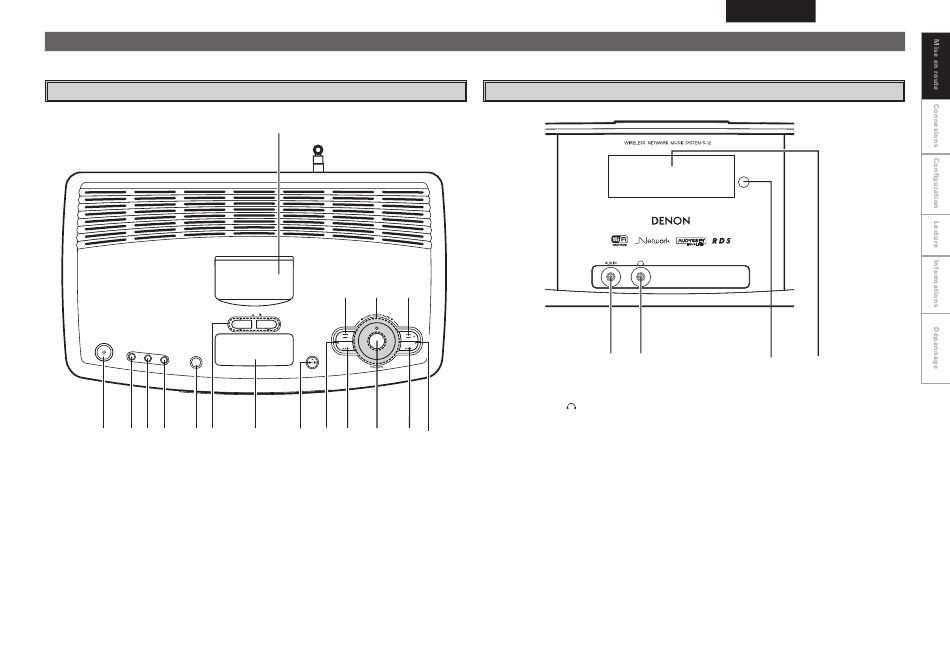

Nomenclature des pièces et des fonctions
Pour·les·touches·qui·ne·sont·pas·décrites·ici,·lire·la·page·indiquée·entre·parenthèses·(··).
Panneau supérieur
FUNCTION
ON / OFF
ALARM
SETTING
SLEEP
DIMMER
DISPLAY
q wer t y
q ·Interrupteur d'alimentation
· (FUNCTION ON / OFF)······························ (12)
w ·Touche ALARM SETTING·························· (20)
e ·Touche SLEEP············································ (21)
r ·Touche DIMMER········································ (13)
·Touche DISPLAY· · ······································· (13)
t
y ·Touches ALARM1, 2 ON / OFF·················· (20)
u ·Touche MUTE / SNOOZE···················· (12,·20)
i ·Touche PLAY / PAUSE (1/3)· · ··················· (16)
o ·Témoin SOURCE········································ (12)
Q0 Touche SOURCE·········································· (8)
Q7
iPod
Q6 Q5 Q4
ALARM ON OFF
1 2
ALARM ALARM
SOURCE RETURN
MUTE / SNOOZE
PLAY/PAUSE
u i o Q0 Q1 Q2
Q1 · Touche ENTER· · ·············································(8)
Q2 · Touche RETURN· · ··········································(8)
Q3 · Témoin RETURN········································· (12)
Q4 · Avance rapide /
Bouton Avance rapide (9)· · ···················· (15)
· Touche TUNING +······································· (17)
Q5 · Bouton multi-commandes /
Contrôle du volume principal ··············· (8,·12)
Q6 · Retour rapide /
Bouton retour rapide (8)······················· (15)
· Touche TUNING –· · ······································ (17)
Q7 · Station d'accueil d'iPod·······························(5)

Panneau avant

Q8 · AUX IN jack················································· (19)
Q9 · Jack du casque ( )···································· (13)
W0 · Capteur de télécommande··························(2)
Q3
W1 · Affichage
