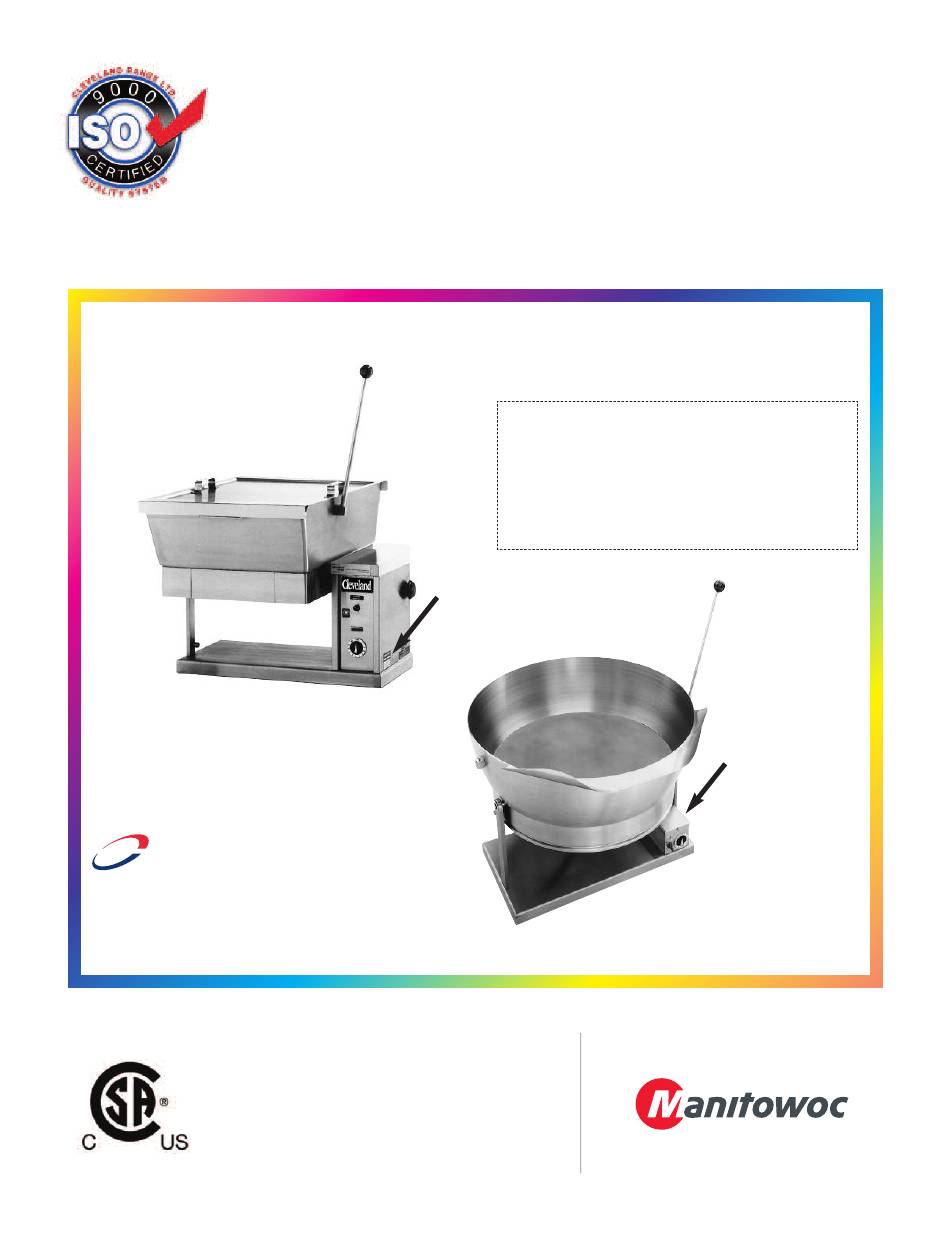

N° du modèle et N° de série. SET-10 Model # & Serial #. N° du modèle et N° de série. SET-15 ™ Cleveland 1333 East 179th St., Cleveland, Ohio, U.S.A. 44110 Ph: 216.481.4900 Fx: 216.481.3782 www.clevelandrange.com SE95031 rev. 6 June 2011...
THE INSTALLATION AND CONNECTION MUST COMPLY WITH THE LOCAL AND NATIONAL ELECTRICAL CODES. ENSURE ELECTRICAL SUPPLY CONFORMS WITH ELECTRICAL CHARACTERISTICS SHOWN ON THE RATING LABEL. ALL SERVICE MUST BE PERFORMED BY A QUALIFIED CLEVELAND RANGE TECHNICIAN. WARNING The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
Page 3
FOR YOUR SAFETY / POUR VOTRE SÉCURITÉ / PARA SU SEGURIDAD / PER LA VOSTRA SICUREZZA / FÜR IHRE SICHERHEIT DANGER / DANGER / PELIGRO / PERICOLO / GEFAHR Keep hands away from moving parts and pinch points. / Gardez les mains loin des pièces mobiles et des points de pincement. / Mantenga las manos lejos de piezas movibles y puntos de presión muy localizada.
Page 4
Also, it is recommended the unit be installed with sufficient clearances to provide proper cleaning and maintenance. CLEARANCES - SET-10 - RIGHT: 3”, LEFT: 0”, REAR 1” SET-15 - RIGHT: 4”, LEFT: 4”, REAR 1/2”...
Comply with clearances stated on the specification sheet. Ensure there is sufficient SET-10: Remove the screw at the rear of the console cover, clearance between skillet and back wall. and remove the cover. A wiring diagram is affixed to the underside of the cover.
Page 6
INSPECTION / DÉBALLAGE DÉGAGEMENT - 1. Avant le déballage, examinez l’unité pour voir s’il y a SET-10 – DROITE : 3 pouces, GAUCHE : 0 pouces, des endommagements liés à l’expédition. ARRIÈRE : 1 pouce 2. Si vous constatez des endommagements, ne SET-15 –...
CONNEXION DES CÂBLES électriques. Respectez les paramètres de dégagement qui se trouvent sur la fiche SET-10: Retirez la vis de l'arrière du couvercle de la signalétique. Il doit y avoir un espace assez dégagé console, puis retirez le couvercle. Un schéma de entre la poêle et le mur arrière.
Page 8
OPERATING INSTRUCTIONS DO NOT ATTEMPT TO OPERATE THIS DO NOT LEAN ON OR PLACE OBJECTS APPLIANCE DURING A POWER FAILURE. ON SKILLET LIP. SERIOUS INJURY COULD RESULT IF KETTLE TIPPED OVER, KEEP APPLIANCE AND AREA FREE AND SPILLING HOT CONTENTS. CLEAR OF COMBUSTIBLES.
Page 9
INSTRUCTIONS D’UTILISATION NE VOUS REPOSEZ PAS ET NE PLACEZ PAS DES N’ESSAYEZ PAS DE FAIRE FONCTIONNER CET OBJETS SUR LA LÈVRE DE SKILLET. APPAREIL PENDANT UNE COUPURE DE COURANT. DE GRAVES BLESSURES POURRAIENT S’ENSUIVRE DÉBARRASSEZ L’APPAREIL ET LA ZONE DE TOUT SI LA CHAUDIÈRE SE RENVERSE ET DÉVERSE COMBUSTIBLE.
CLEANING C C A A U U T T I I O O N N : : INSTRUCTIONS SURFACES MAY BE EXTREMELY HOT! USE PROTECTIVE EQUIPMENT. A A T T T T E E N N T T I I O O N N : : Cooking equipment must be cleaned regularly to maintain its fast, efficient cooking performance and to ensure its LES SURFACES PEUVENT ÊTRE...
Centre for replacement parts, service, or information regarding the proper maintenance and repair of your cooking equipment. In order to preserve the various agency safety certification (UL, NSF, ASME/Ntl. Bd., etc.), only factory-supplied replacement parts should be used. The use of other than factory supplied replacement parts will void warranty. SET-10 FAUCET ASSEMBLY ITEM #...
Page 14
SET10 SET-10 PAN ASSEMBLY Tighten to 11 ft-lb & apply locktite ITEM NO. PART NO. DESCRIPTION QTY. SK00008 PAN WELDMENT ..........1 FA11145 10/32X3/8 CROSS HEAD SCREW .
Page 15
SET15 SERVICE PARTS WARRANTY Our Company supports a worldwide network of Maintenance and Repair Centers. Contact your nearest Maintenance and Repair Centre for replacement parts, service, or information regarding the proper maintenance and repair of your cooking equipment. In order to preserve the various agency safety certification (UL, NSF, ASME/Ntl. Bd., etc.), only factory-supplied replacement parts should be used.
Page 16
SET15 SET-15 CONTROL HOUSING SECTION A-A DETAIL D SECTION C-C ITEM NO. PART NO. DESCRIPTION QTY. KE001075 BOX WELDMENT ..........1 KE001074 COMPONENT PLATE ASSEMBLY (includes 2A-2G) .
Page 17
SET15 SET-15 BASE/PAN ASSEMBLY ITEM NO. PART NO. DESCRIPTION QTY. SK2273599 PAN ASS’Y ............1 SK50403 BEARING, BRONZE.
Page 18
SET15 SET-15 BOTTOM & COVER VENT CAP ITEM NO. PART NO. DESCRIPTION QTY. SCL15 LIFT-OFF COVER (includes 1-7) ........1 SK2211500 SCREW, 1/4”-20 X 3/8"...
Page 19
MAINTENANCE SERVICING GUIDE This section contains servicing information intended for use by Authorized Service Personnel. PROBLEM: Skillet fails to heat with pilot light on. Probable Cause Test and Remedy Faulty contactor(s) Check coil(s) and contacts of contactor(s). Replace if necessary. Faulty wiring Check wiring to contactor(s).
Page 20
HEATING ELEMENT HEATING ELEMENT BLOCK REMOVAL TORQUING 1. Tilt the skillet forward to access bottom cover plate. Uneven torquing of heating element block retaining plate nuts may cause uneven heating of 2. Make sure power switch and external circuit breaker the cooking surface.
