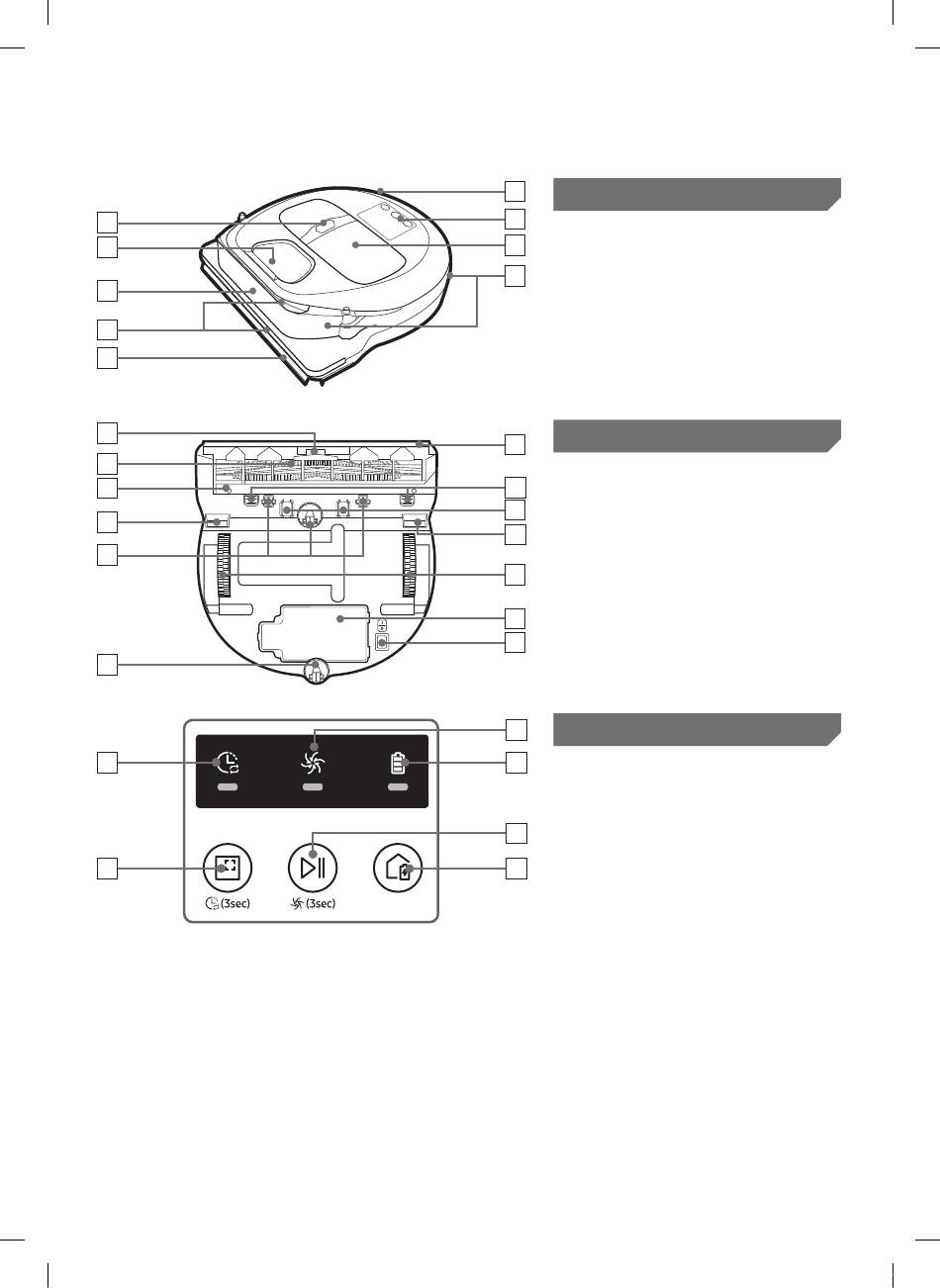

Name of each part

2
1
4
2
10
7
1
4
8
6
9
2
3
5
6
Top

1. Display panel

2. Remote control signal receiver
3. Obstacle sensor
4. Dustbin
5. Camera
6. Dustbin button
7. Bumper sensor
8. Auto shutter tool
Bottom
1. Charge pins
2. Brush
3. Brush cover
4. Cliff sensor
5. Roller
6. Battery cover
7. Brush cover button
8. Driving wheel
9. Emergency switch
10. Auto shutter tool
Display panel
<SR1✴M701✴✴✴ series>
1. Daily schedule
2. Normal/Turbo mode
3. Battery indicator
4. Spot cleaning button, daily
schedule(3sec)
5. Start/Stop button, Turbo
mode(3sec)
6. Recharging button
ENGLISH-20
