6. Installation, electrical system
easydriver active 2.3:

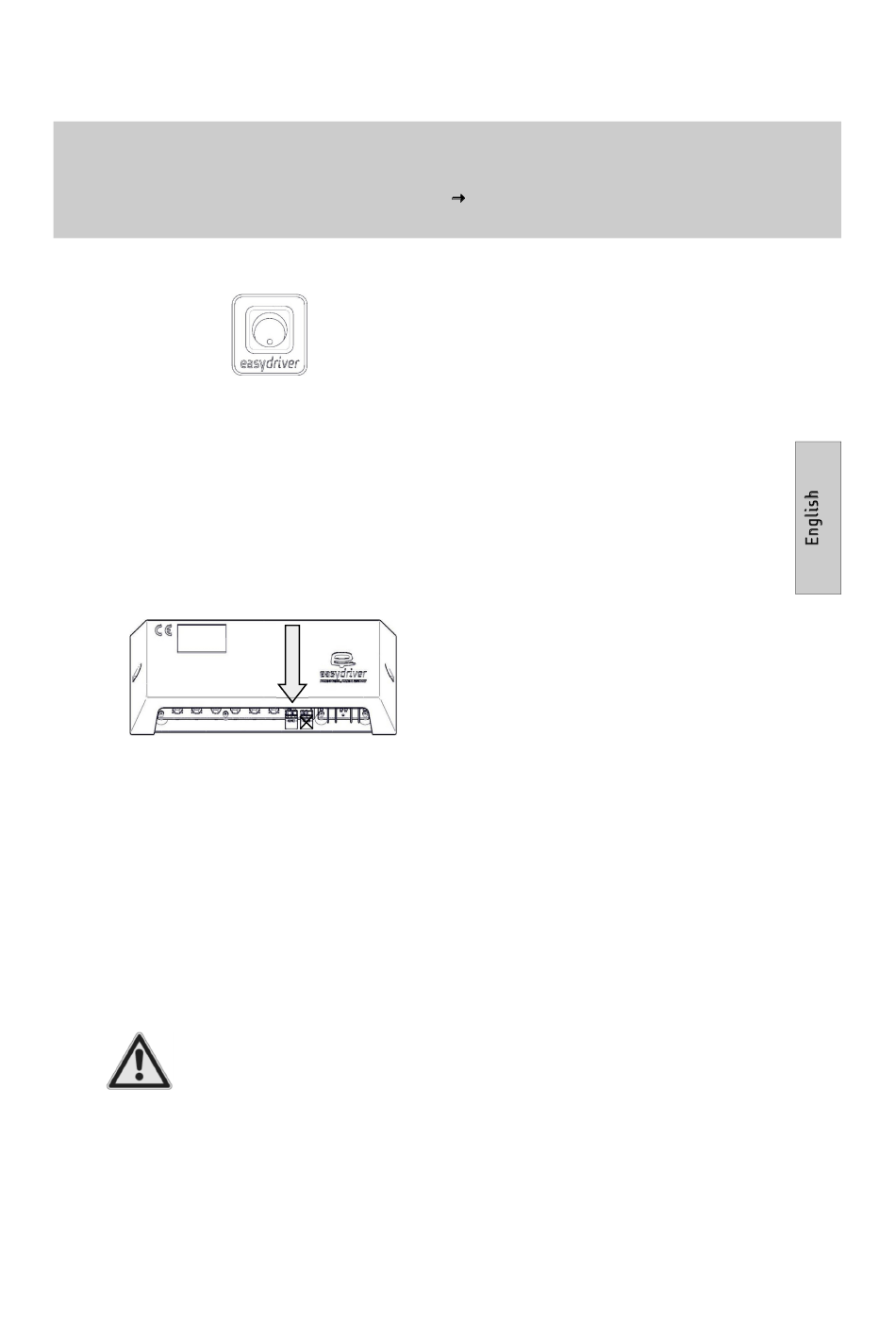

The easydriver active 2.3 is delivered with an illumi-
nated remote switch. It should preferably be installed in
the vicinity of the entrance door.
A hole with a 25 mm diameter is required for the
switch. Insert the cable with the PC-board plug through
this hole from the front. Firmly press the switch into the
drill hole. Glue the dome sticker over the switch. Lay
the cable to the base station. Ensure that the cable is
not kinked. Connect the PC-board connector to the
base station as shown in the figure.
Check whether all cables have been properly laid, firm-
ly fastened without friction points and safely attached.
E5 Basisstation
Lead the antenna cable out of the housing cover, then
mount the housing cover.
E6 Connecting the battery
Connect the battery cable to the battery. The electrical
installation is then complete.
Never swap the plus (+) and minus (-)
connection of the voltage supply!
