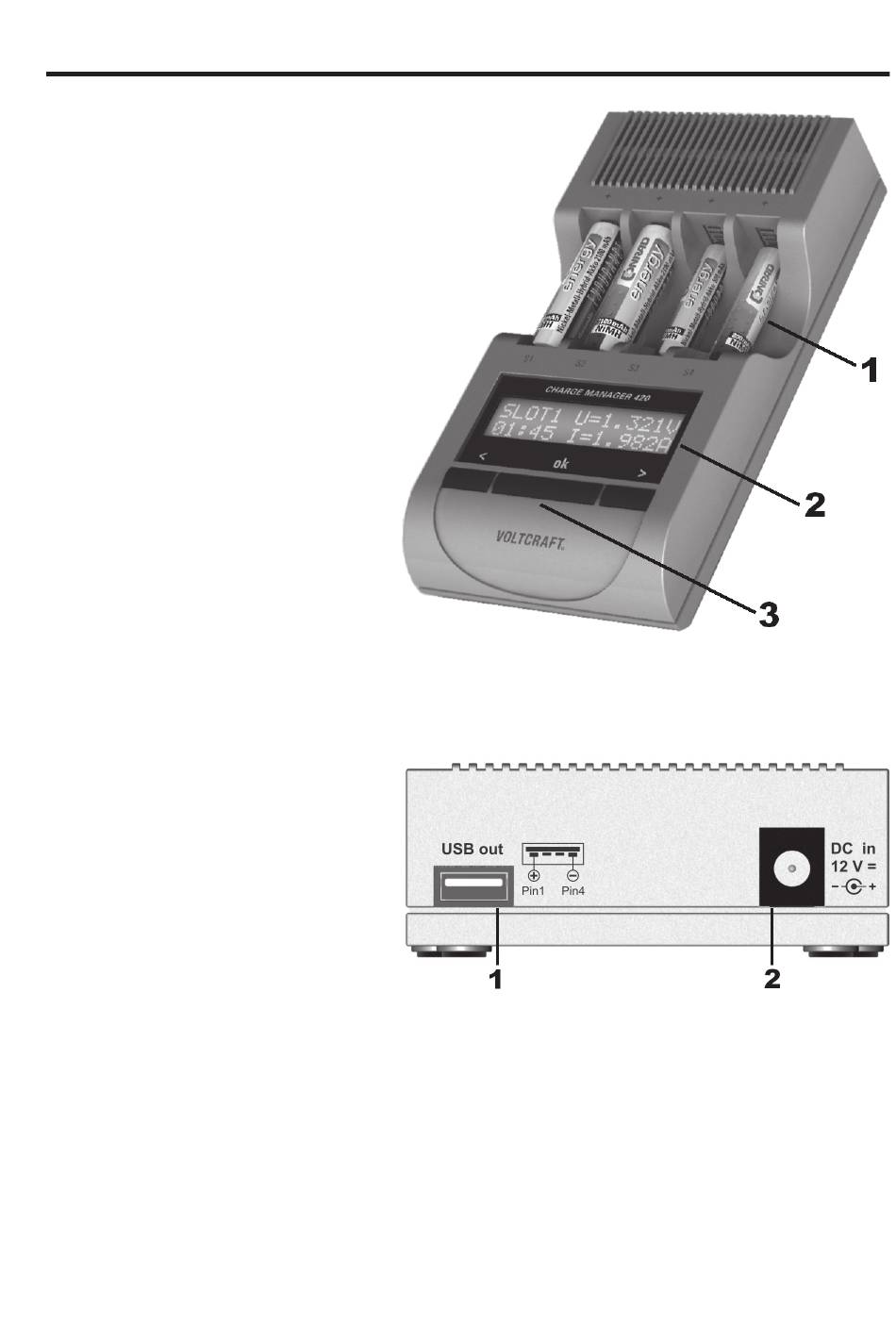

8. DISPLAY AND OPERATING ELEMENTS

1 Charge slots S1-S4
2 Display of:
• Input menu
• Overview of running
programmes
• Cell/loading parameters
• Current intake of the device
connected to the USB output
3 Operating keys
"<" (left) and ">" (right) for input /
selection
"OK" to confirm
Connection (back of the device):
1 USB output (USB A socket,
5 V/DC, max. 500 mA)
2 Voltage supply connection
(12 V/DC, hollow-plug socket,
plus pole/+ inner pins,
minus pole/-/GND outer pins)
