Toto TRANSITIONAL B Série Manuel D'installation Et D'utilisation page 4

1. Using the towel bar as a template, mark the center locations of each
post.
2. Center a mounting disc over each of the marks from step 1 and mark the
locations for the screws.
3. Choose your installation method.
NOTE: These accessories work best if secured to a wall stud or stringer
using the supplied screws.
For Drywall:
• Drill a 1/4" hole at each marked location.
• Insert anchors until they are flush with the face of the finished wall.
• Place the mounting disc over the anchors, insert the screws and tighten
to secure it. Repeat as needed for additional mounting discs.
For Ceramic Tile or Concrete:
• Drill 1/4" pilot holes a minimum of 2-3/8" deep at each marked location.
• Insert anchors until they are flush with the face of the finished wall. If
necessary, tap them with a hammer to fully seat.
• Place the mounting disc over the anchors, insert the screws and tighten
to secure it. Repeat as needed for additional mounting discs.
For Wooden Stud or Stringer:
• Drill 3/32" pilot holes a minimum of 1-1/4" deep at each marked
location.
• Place the mounting disc, insert screws into the pilot holes and tighten to
secure it. Repeat as needed for additional mounting discs.
4. Place the product over the mounting disc and tighten the set screw(s)
with the hex wrench provided.

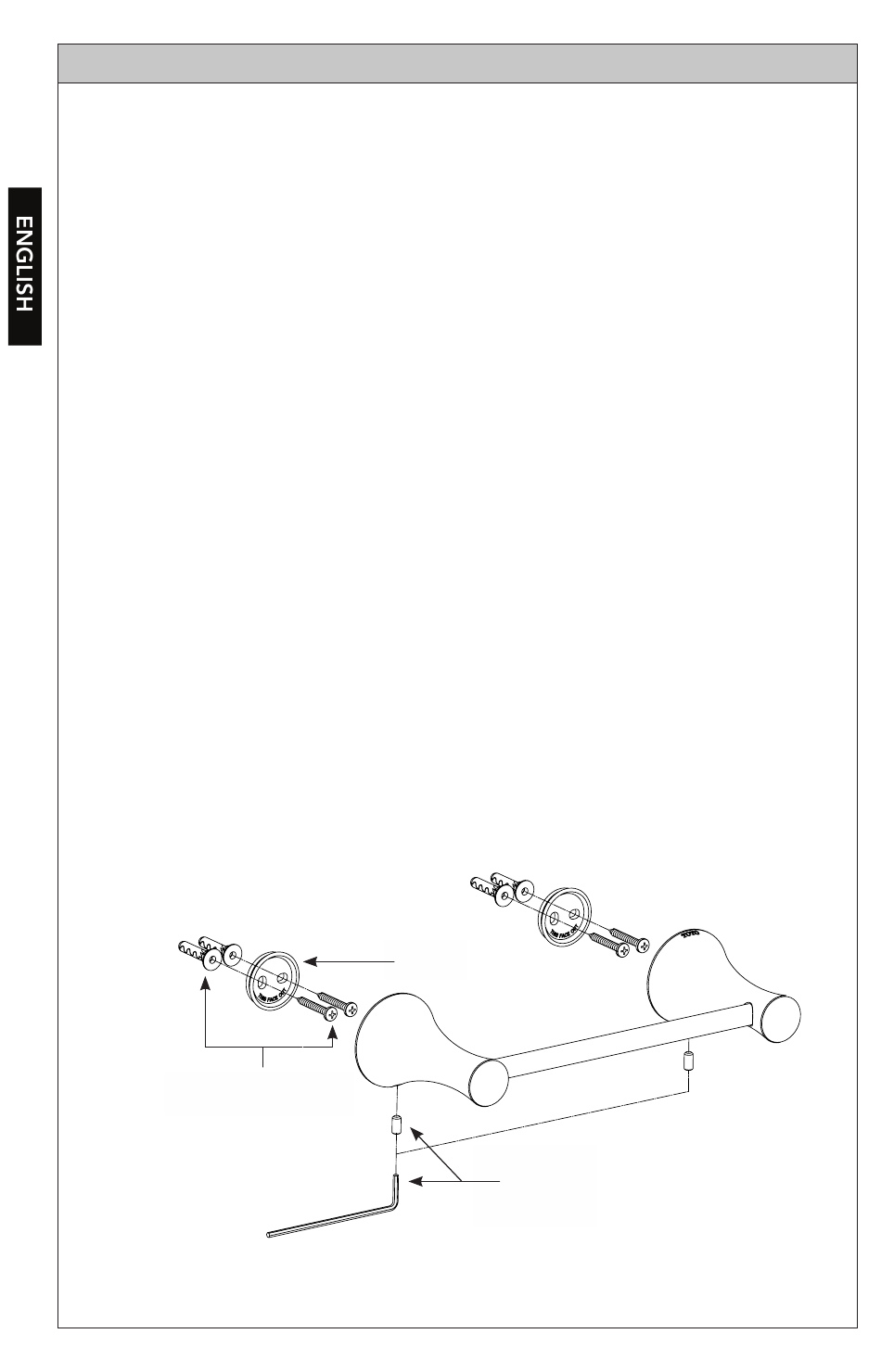

Mounting Hardware
(Anchor & Screws)
INSTALLATION PROCEDURE
Mounting
Disc
4
Set Screw
&
Hex Wrench
