Connecting
X Shorten both wires L and N by 10 mm.
X Remove 8 mm of insulation from each
of the three wires.
X Attach a ferrule to each wire.
X Pass the cable through the cable
gland B, see Fig. 8.
X Clean the seal A.

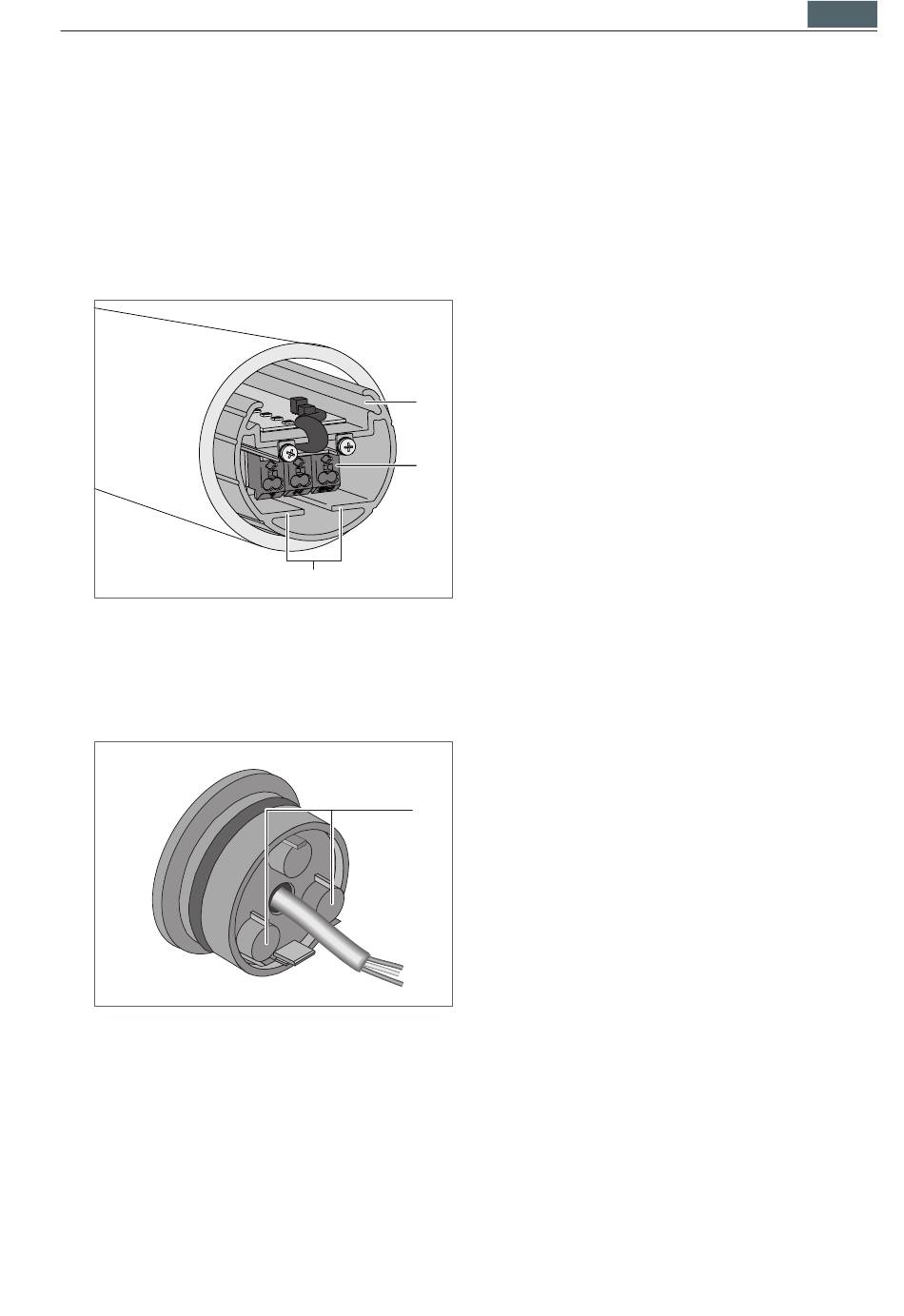

Fig. 9: Mounting profile and terminal.
X Pull the mounting profile D somewhat
out of the luminaire, see Fig. 9.
X Insert the cable C into the terminal E.
Fig. 10: Position of mounting profile and
lugs.
NOTE: Make sure that the lugs G of the
side part rest on the rail F of the mount-
ing profile, see Fig. 10.
X Place the side part on the luminaire.
D
E
F
G
X Tighten the three screws of the side
part evenly until seal A makes contact
with inside pipe all around on a width
of at least 2 mm.
X Tighten the cable screw connection.
