VIII. Installation
Hint: Before installing the detector and the radio controlled display module, make sure that there is a reliable
radio connection between the intended installation positions.
To ensure permanently secure radio reception, at least three LEDs should be illuminated per alarm (see Point VI. f).

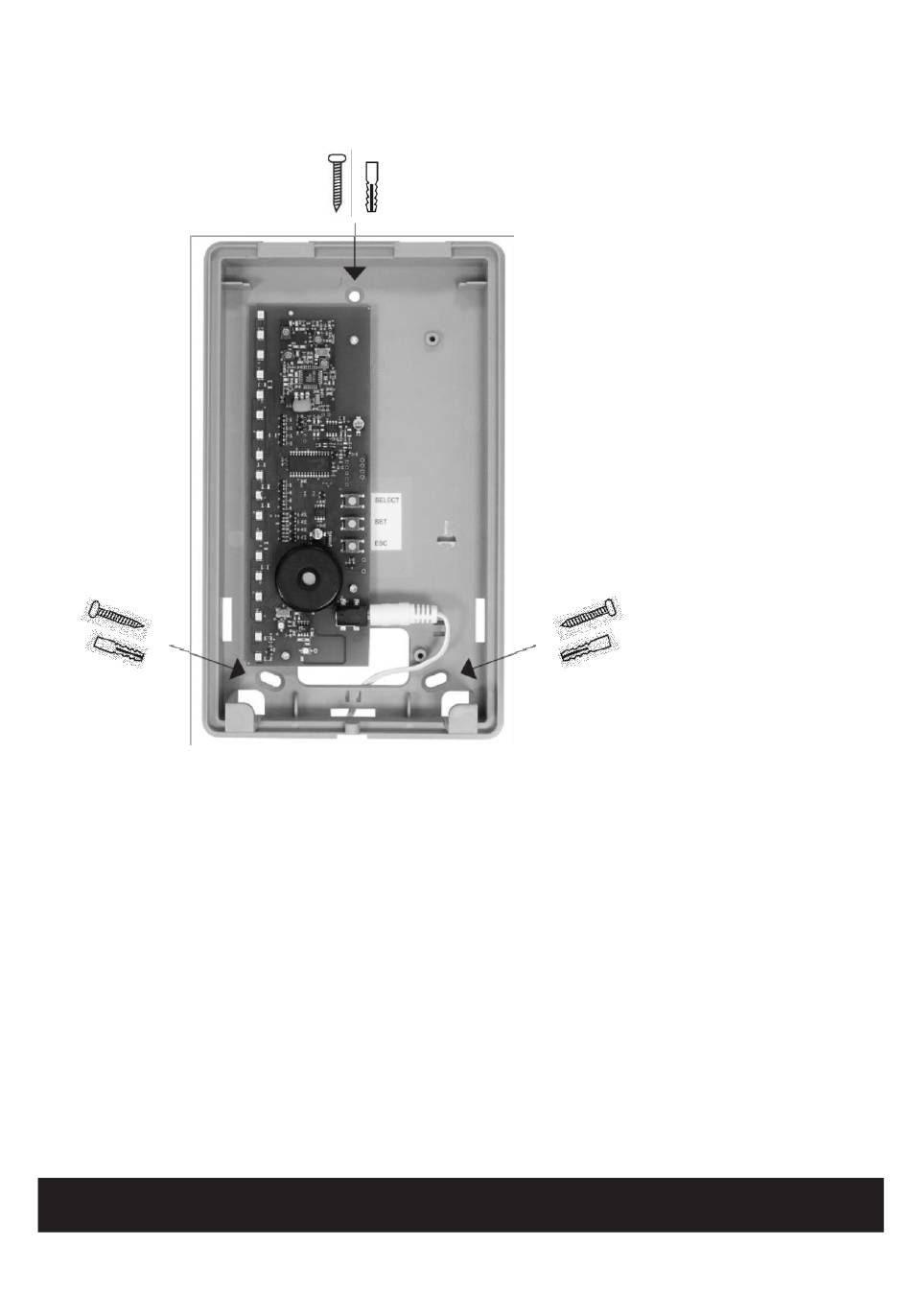

Hold the bottom of the radio controlled display module on the desired installation position and mark the three
drill holes; drill with a 6 mm drill; insert dowel and screw on the bottom part.
Caution: Length of cable on power supply 1.50 metres. A nearby 230 VAC receptacle is required.
After completing the teaching process, put the top part of the radio controlled display module on the installed
bottom section and secure to the bottom section with the enclosed screws.
IX. Technical data
Voltage supply:
Frequency:
Zones:
Weight:
Dimensions W xH xD:
Environmental Class:
Temperature range:
ABUS - The good feeling of security
We reserve the right to make technical changes. No liability for mistakes and printing errors. ABUS © 2009
12V power supply
868.6625 MHz / FM
16, individually programmable
516 g
135 x220 x45 mm
I
0° C to + 50° C
www.abus-sc.com
