ENGLISH
MACHINE DESCRIPTION

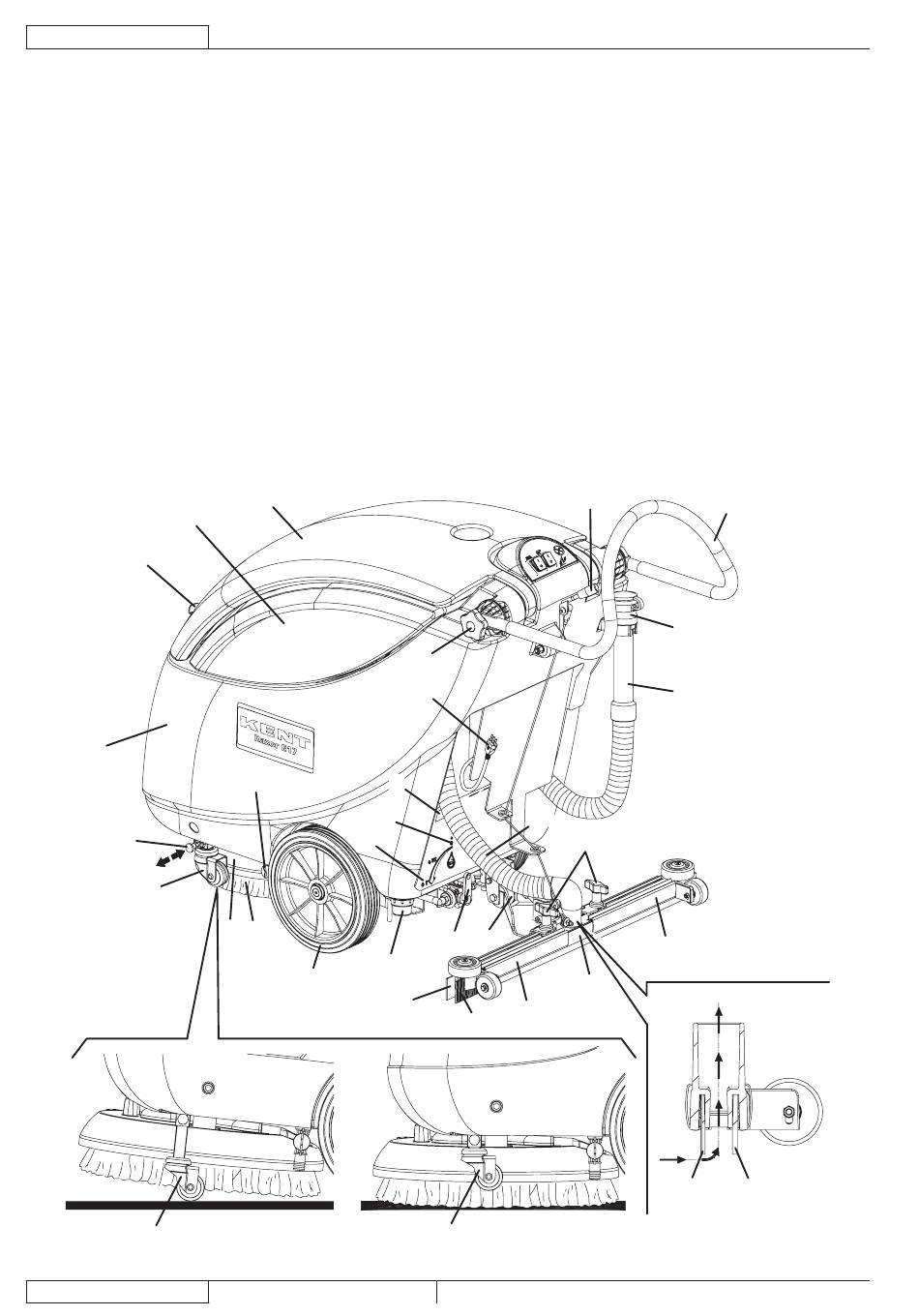

MACHINE STRUCTURE
1.
Serial number plate/technical data
2.
Handlebar
3.
Handlebar inclination adjusting knob
4.
Solution flow control lever
5a.
Minimum solution flow position
5b.
Maximum solution flow position
6.
Recovery tank cover
7.
Rear support wheel for transport/parking
8.
Central wheels on fixed axle
9.
Brush/pad
10.
Brush/pad-holder deck
11.
Squeegee
12.
Squeegee mounting handwheels
13.
Front squeegee blade
14.
Rear squeegee blade
26
25
27
24
23
23a
6
INSTRUCTIONS FOR USE
6
18
5a
5b
10 9
20
8
13
909 6311 000(3)2009-11
15.
Squeegee blade mounting springs
16.
Recovery water drain hose
17.
Recovery water drain hose bracket
18.
Solution drain valve
19.
Squeegee lifting/lowering lever
20.
Solution filter
21.
Power supply cable
22.
Squeegee vacuum hose
23.
Transport/parking device
23a.
Transport/parking device (engaged)
23b.
Transport/parking device (disengaged)
24.
Transport/parking device positioning pin
25.
Brush/pad-holder support
26.
Recovery tank
27.
Solution tank
3
21
1
22
7
4
15
14
23b
Razor E17
19
2
17
16
12
15
11
13
14
S311245K
