To install the rail kit(s):
NOTE If installing EBM(s), install the EBM rails (FC 6631) below the UPS rails (FC 6632).
NOTE All hardware referenced in Steps 2 through 4 are contained in the rail hardware kit.
1. Loosen the assembly wing nuts on both rail assemblies and adjust
the rail size for the depth of your rack (see Figure 1).
Front
Rail Assembly
2. Select the proper holes in the rail for positioning the UPS and any
optional cabinets in the rack.
Place the first rail at the bottom, using positions 1 and 6 for the
front hex-head screws. If you are installing additional rails, place the
next rail four holes above the last installed screw (see Figure 2).
®
EATON Powerware 5125 (9910-P65) UPS Installation Guide for IBM
Assembly Wing Nuts

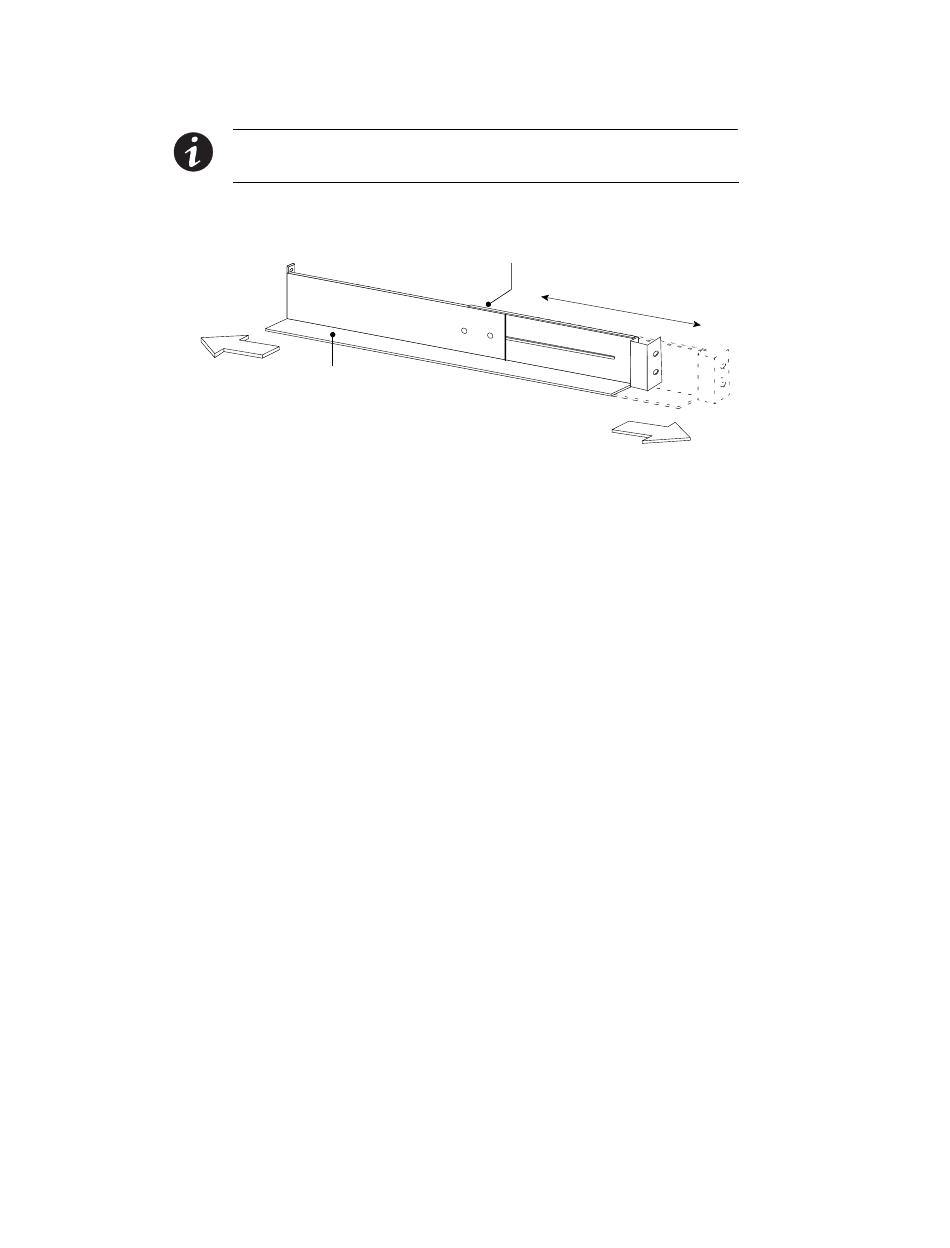

Figure 1. Adjusting the Rail Depth
