6

Elimination of malfunctions

Beseitigung von Störungen
E You may obtain a trouble shooting chart and repair
instructions from your local dealer or order them
from the manufacturer.
D Sie können ein Fehlersuche-Schema und Repa-
raturanweisungen von Ihrem Händler bekommen
oder bei dem Hersteller bestellen.
E Always disconnect the tool from the air supply,
empty the magazine and read the section Safety
warnings before starting trouble shooting.

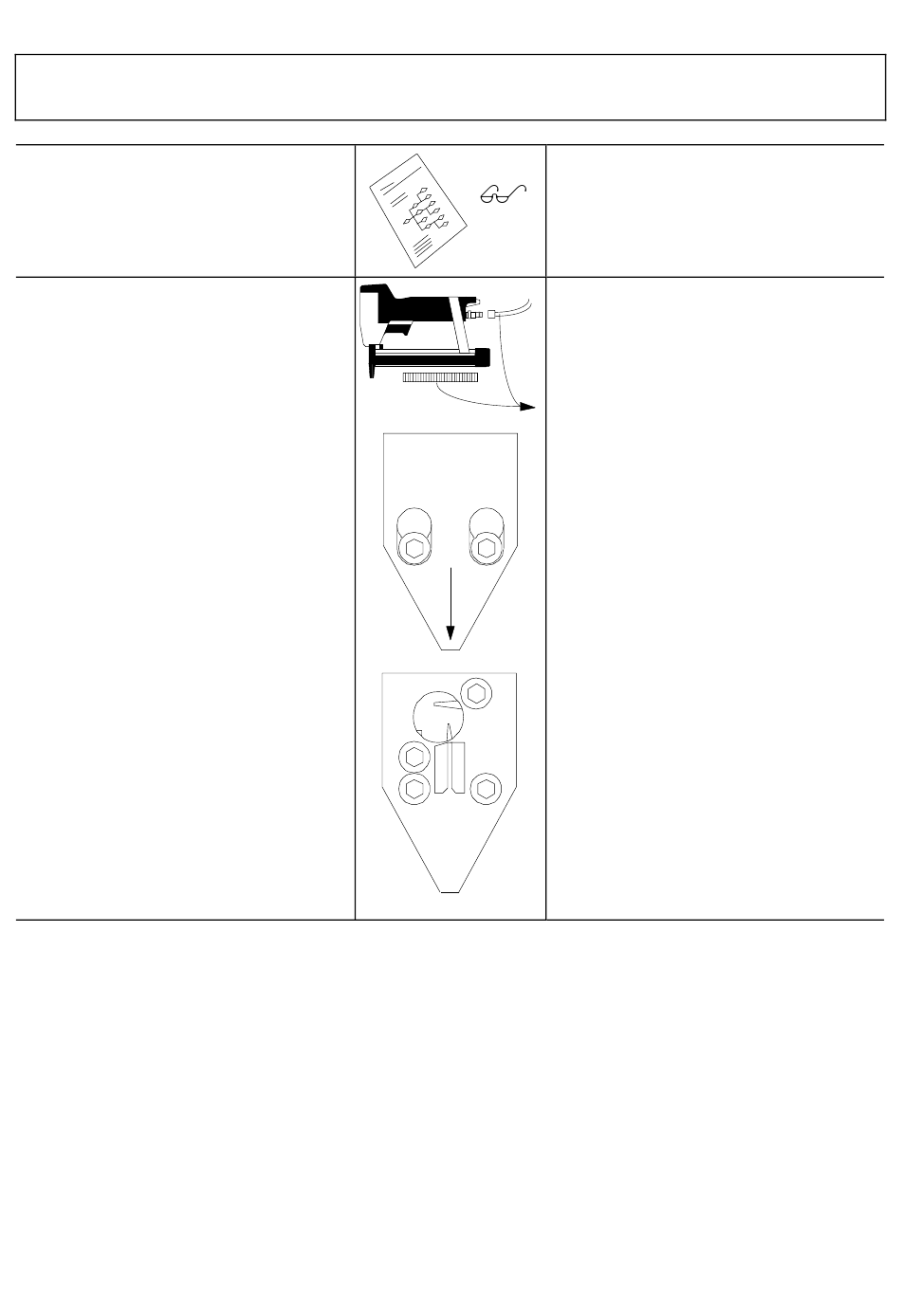

To remove a pin which may have got stuck first
open the magazine cover and temporarily remove
the pins from there. Then:
a) Just loosen the two screws A holding the front
plate and remove the plate downward.
b) Remove any pin remnants from the groove G
and the bar B.
Thereafter remount all parts in the reverse order,
put the pins back into the magazine and close the
cover.
D Trennen Sie immer erst das Gerät von der
Druckluftleitung, entleeren sie das Magazin und
lesen Sie die Sicherheitshinweise bevor Sie
Störungen beseitigen.
Um steckengebliebene Stifte zu entfernen wird
zuerst das Magazin geöffnet und der Stiftstreifen
entfernt. Dann geht man folgendermaßen vor:
a) Die Schrauben A, die die Vorderplatte fest-
halten etwas lösen und die Platte nach unten
wegnehmen.
b) Eventuelle Stiftresten von dem zylindrischen
Stab B und der Führung G entfernen.
Dann die Teile in umgekehrter Reihenfolge wieder
montieren, den Stiftstreifen einlegen und das
Magazin wieder schließen.
A
A
a)
B
G
b)
Avhjälpande av störningar
Elimination de dérangements
S Ett felsökningsschema och en underhållsinstruktion
kan erhållas från leverantören eller beställas hos
tillverkaren.
F Vous pouvez obtenir un schéma cherche-fautes et
une instruction d'entretien chez vôtre vendeur ou
les commander chez le fabricant.
S Koppla alltid bort luftslangen, töm magasinet och
läs avsnittet Säkerhetsvarningar innan störningar
börjar avhjälpas.
För att avlägsna ett stift, som fastnat i verktyget,
öppna först magasinslocket och ta bort stiftstaven
tillfälligt. Sedan görs följande:
a) Lossa de två skruvar A som håller frontplattan
något och ta sedan bort plattan neråt.
b) Ta bort eventuella stiftrester ur guiden G och
cylinderstaven B.
Återmontera sedan delarna i omvänd ordning,
placera stiften i magasinet igen och stäng locket.
F Avant de commencer l'élimination de dérange-
ments, déraccordez l'outil du réseau d'air, videz le
magasin et lisez la section Instructions de sécurité
et mise en service.
Pour enlever une pointe bloquée, ouvrez d'abord le
magasin et enlevez la bande de pointes. Puis, avan-
cez à la façon suivante:
a) Dévissez les vis A, qui tiennent la plaque
guide frontale un peu et enlevez la plaque
vers le bas.
b) Ecartez les restes de pointe de la barre cylin-
drique B et du guide G.
En suite, remontez toutes les pièces à l'inverse de
la suite susmentionnée, remettez la bande de
pointes dans le magasin et fermez le magasin.
