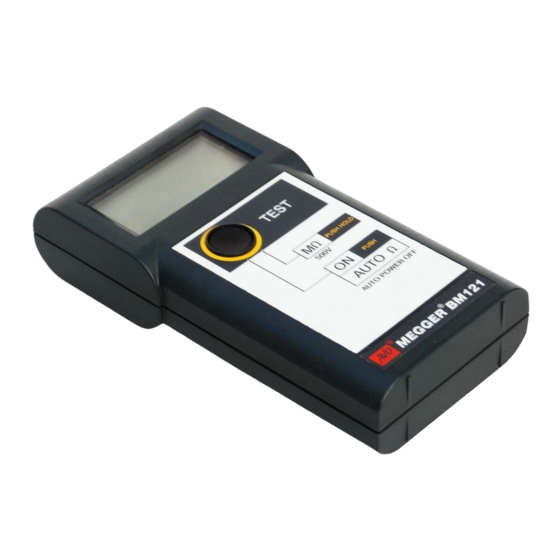

M BM121 and BM122
Insulation & Continuity Testers
Safety Warnings and Precautions must be read
and understood before the instrument is used.
They must be observed during use.
The circuit under test must be switched off, de-
energised and isolated before Insulation or
Continuity tests are made.
The test push button must not be held down while
connecting the test leads.
During an insulation test, the circuit must not be
touched.
After insulation tests, capacitive circuits must be
allowed to discharge before disconnecting the test
leads.
Test leads, prod and crocodile clip must be in
good order; clean, and with no broken or cracked
insulation.
Replacement fuses must be of the correct size,
type and rating.
THEINSTRUMENTS MUSTONLY BE USED BYSUITABLY TRAINED AND COMPETENT
Caution: Risk of electric shock
Caution: refer to acompanying notes.
Equipment protected throughout by Double Insulation (Class II).
Equipment complies with current EU Directives
User Guide
Guide de l'utilisateur
Gebrauchsanleitung
Guía del usuario
SAFETY WARNINGS
NOTE
PERSONS
Symbols used on the instrument
.
