ASSEMBLY INSTRUCTIONS

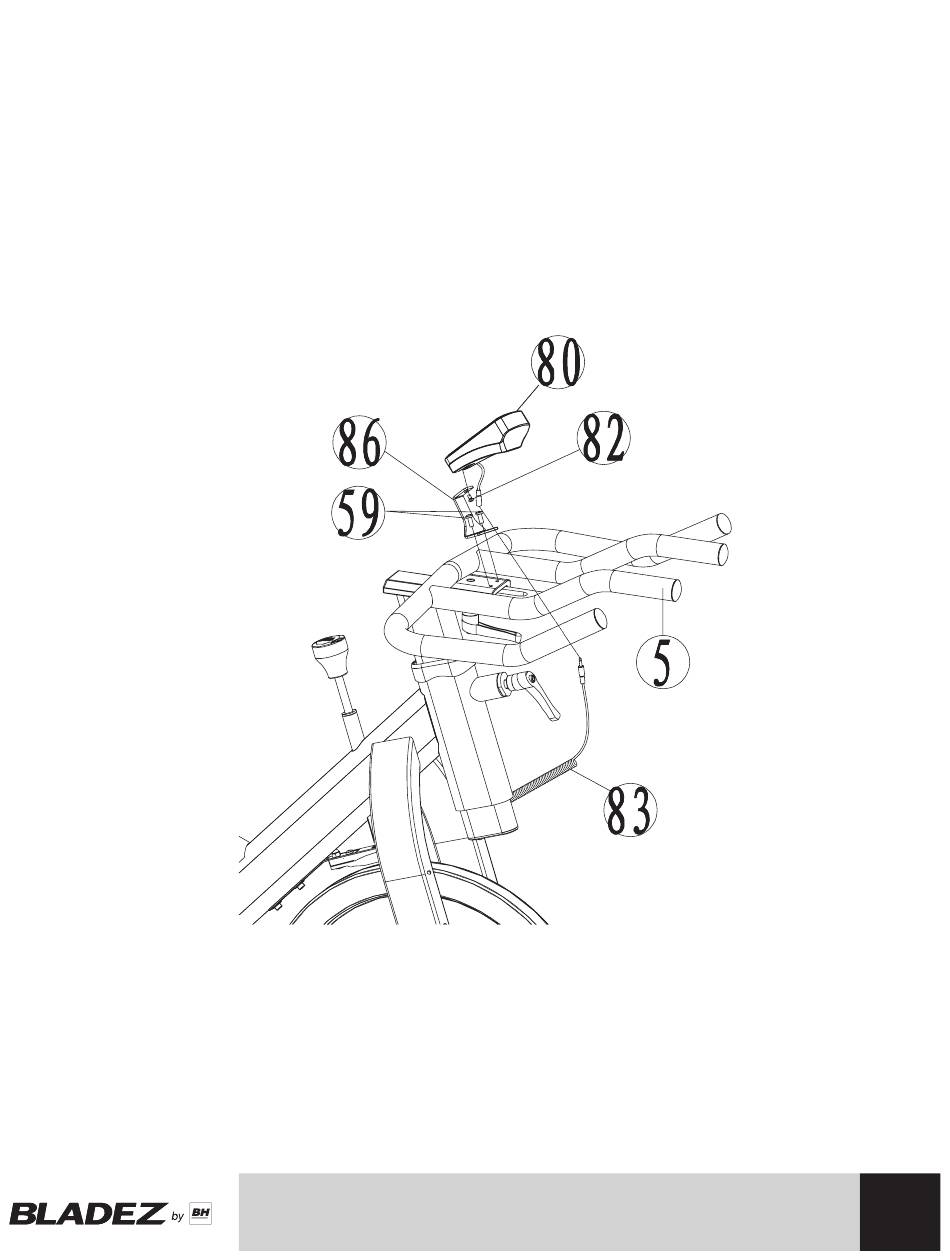

STEP 7
ASSEMBLE THE CONSOLE
Take the plastic battery cover off the Computer Console (80) and insert included
batteries. Reinstall battery cover. Loosen the Phillips Bolt (82) on the back of the
Computer. Install the Console Mount (86) onto the Handlebar (5) with 2 Cross
Bolt (59). Install the Computer (80) onto the Computer Mount (86) and tighten the
Phillips Bolt (82) on the back of the Computer (80) to secure to the Console Mount
(86). Now connect the Up Sensor Cable (83) to the back of the computer (80).
