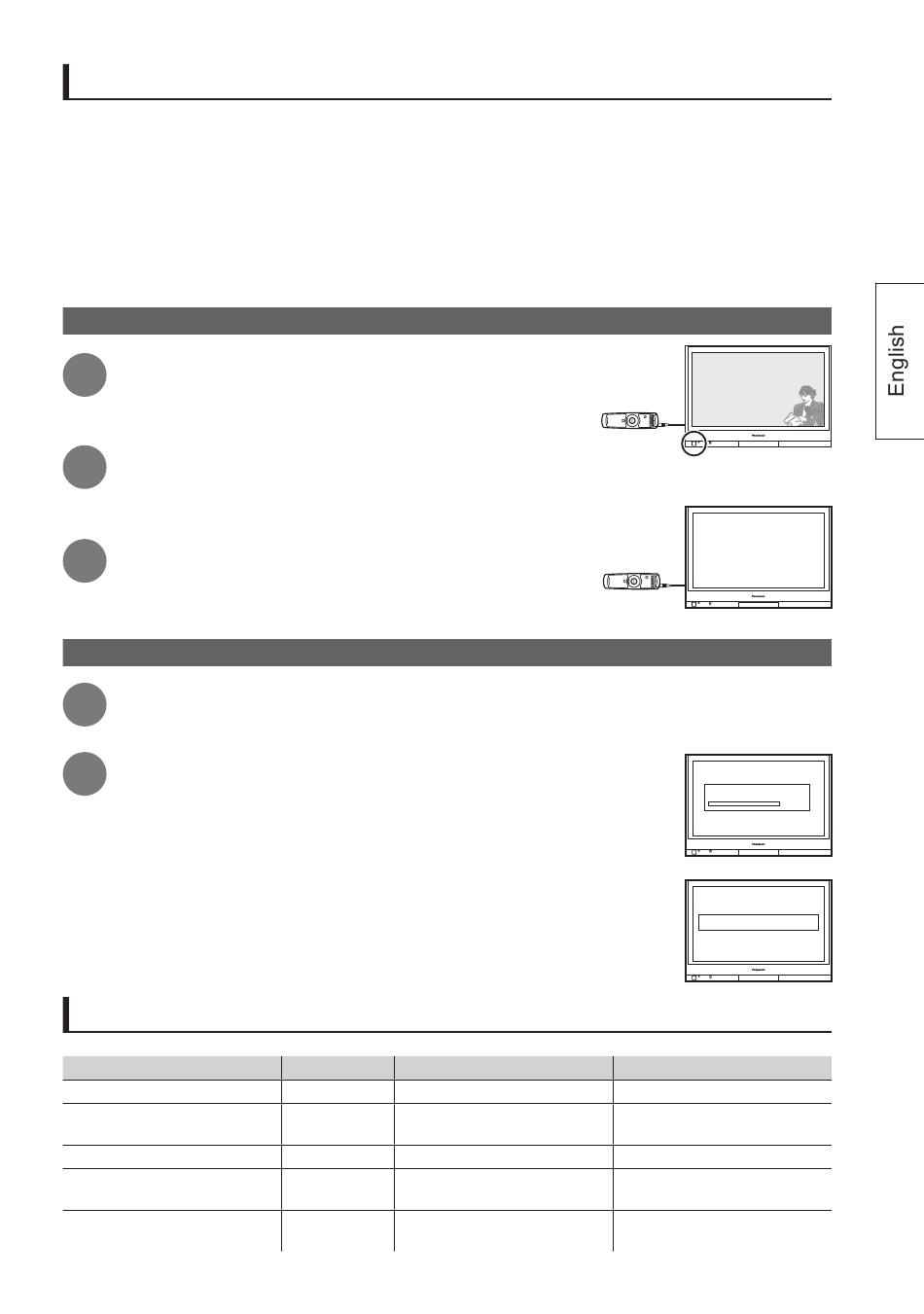

How to Use

Copy the master set setting to the Set Up Loader
Preparation
1. Set up the master set. Refer to the terminal board's operating instructions for what kind of settings
you can copy.
2. Turn the unit off first. Subsequently connect the unit with the Set Up Loader via cable (accessory). Be
sure that [GREEN] LED (upper right of the Set Up Loader) lights when connecting the M3 plug.
Enter the UP LOADING Mode
1
Turn the unit on with connecting the Set Up Loader.
2
Enter the UP LOADING Mode using the remote control of
the unit or terminal board. Refer to the manuals for details.
3
"UP LOADING" will be displayed when you can enter the
UP LOADING Mode successfully.
If not, repeat the procedure 2 again.
Copy the master set setting
1
Follow the on-screen display to start copy.
2
The data copy is successfully completed when progress becomes
100 %. Turn the unit off after "PLEASE TURN OFF" is displayed and
disconnect the Set Up Loader from the unit.
If on-screen display comes up with the error or [RED] LED (upper left
of the Set Up Loader) blinks after the M3 plug disconnection, turn the
unit off and repeat the procedure 1 in <Enter the UP LOADING Mode>
again.
Note:
On-screen display differs by the installed terminal board.
LED Specifications
Operating state
No operation
when press [POWER], [A], [B]
or [ENTER]
During M3 connection
During M3 disconnection
when complete the data copy
Red indicator
-
Blinking
-
Blinks when data write failure
-
Blinks when send data failure
Blinking
[RED] LED
-
-
-
(5 seconds)
(5 seconds)
[UP LOADING]
PLEASE TURN OFF
100%
EEPROM OUTPUT FAILED!!
[GREEN] LED
-
-
Lighting (10 seconds)
Blinks when data write
success (5 seconds)
Blinks when send data
success (5 seconds)
