Model Assembly Continued

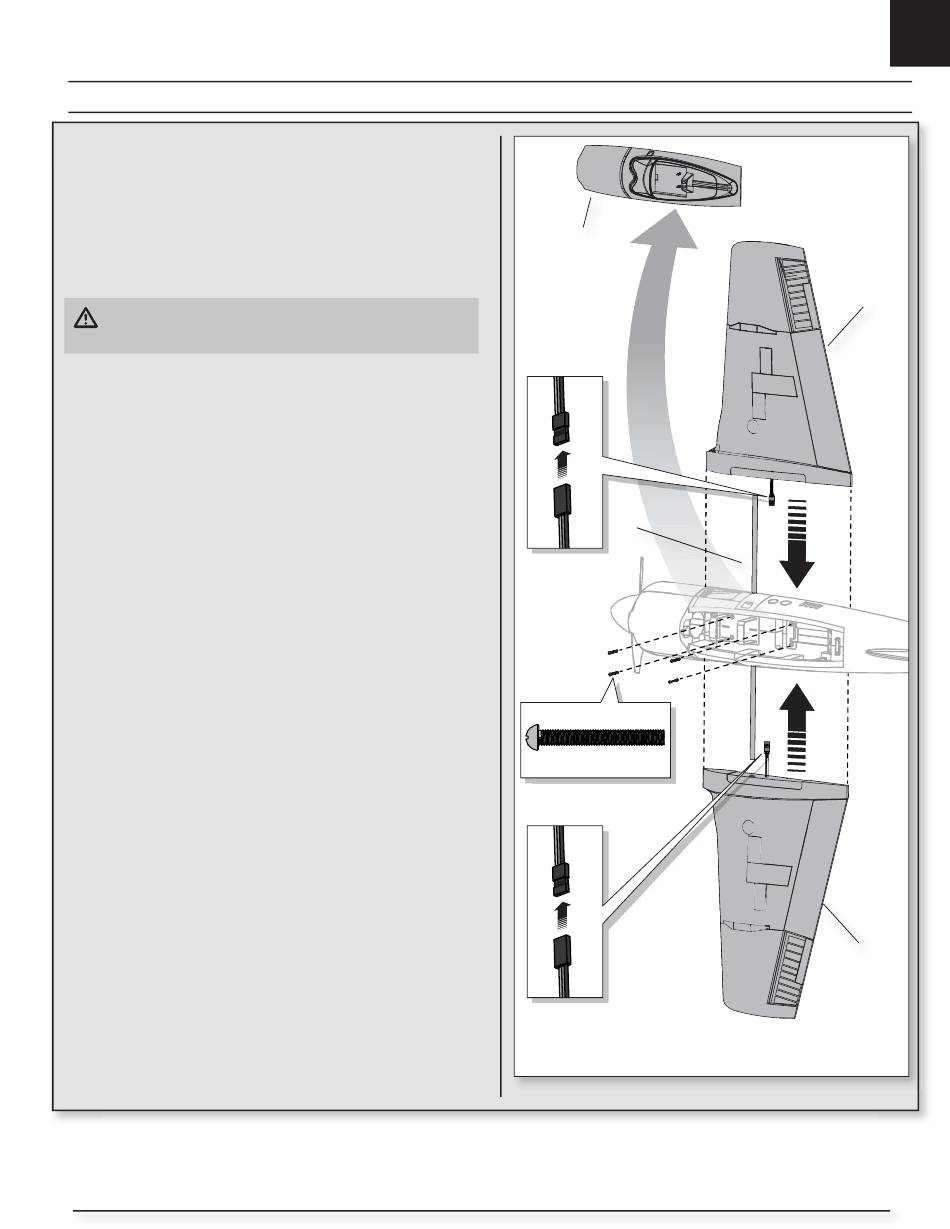

Wing Installation
1. Remove the canopy hatch (A) from the fuselage.
2. Slide the wing tube (B) into the fuselage.
3. Install the left and right wing (C and D) over the wing tube and into the
wing slot of the fuselage while inserting the aileron servo connectors
through the provided holes.
CAUTION: DO NOT crush or otherwise damage the wiring when
attaching the wing to the fuselage.
4. Secure the left and right wings to the fuselage using the included
4 screws (E).
Tip: If needed, use hemostats or pliers to pull the servo connectors into the
fuselage.
5. Connect the aileron servos (F) from the wings to the Y-harness connectors
in the fuselage. The left and right aileron servos can be connected to either
side of the Y-harness.
6. Reinstall the canopy hatch on the fuselage.
Disassemble in reverse order.
A A
F
B B
E
3mm X 25mm
F
