ShelterLogic 18'W x 11'H Peak Shelter Guide D'assemblage page 5

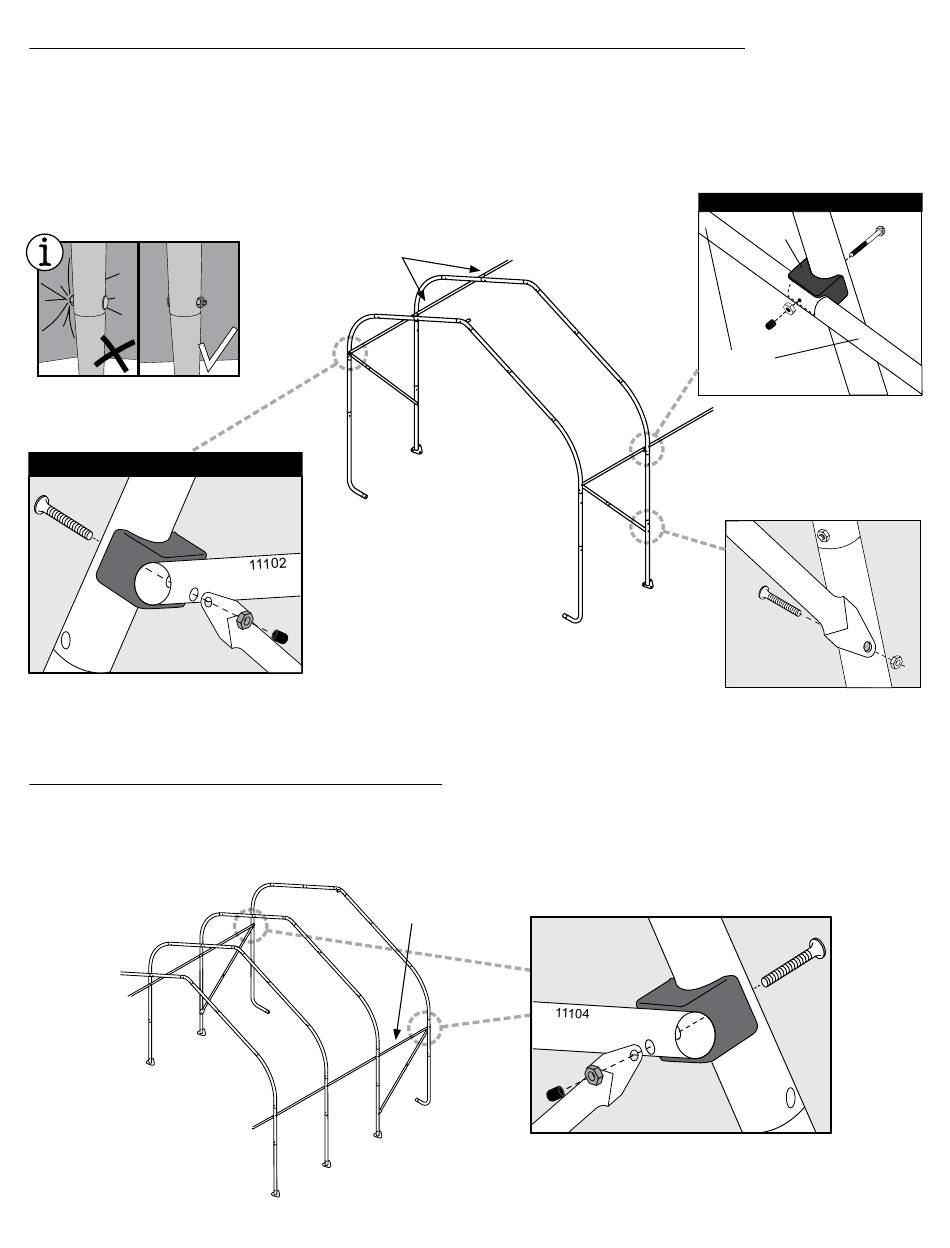

5. CONNECT THE FRONT END RIB TO THE MIDDLE RIBS
A. With help, move the front end rib into the desired staked area.
B. Place the ShelterLock (800372) on the upright as shown in Fig. 5.
®
C. From the outside of the rib insert the bolt through the upright and then through the ShelterLock .
®
D. Place the plain end of a Cross Rail (11102) over the bolt and nest it into the ShelterLock .
®
Repeat steps A-D for the each of the middle ribs.
E. Place the wind brace over the Cross Rail. Install the nut onto the bolt and tighten.
Middle Rib ShelterLock Assembly
®
800372
800454
11102
00690
11150
11102
End Rib ShelterLock Assembly
®
Rib
11134
800372
Wind
Brace
Rib
Fig.5
00690
11131
Wind
Brace
11150
00690
6. CONNECT THE BACK END RIB
The Cross Rails for the last rib will have two plain ends (11104).
Take the wind brace and attach it between the end rib and the last middle rib as shown in Fig. 6.
11104
Fig. 6
Back Rib
11134
800372
00690
Wind
Brace
11150
Page 5 05_105143_A8
