INTRODUCTION

MOVING HEAD OPUS SERIES
CLOH5
CONTROL FUNCTIONS
• 29-channel and 36-channel DMX control
• Art-Net
• sACN
• W-DMX™
• RDM-enabled
• Master/slave operation
• Standalone functions
FEATURES
471W Osram discharge lamp, cold white 7500 K. Animation wheel CMY color mix. Color wheel with 13 brilliant colors + open and split
colors. 22 gobos on 2 gobo wheels. 2 rotating prisms. Focusing and zoom function can be controlled via DMX. 2 frost filters. Stroboscope
effect. Pan and tilt motors with 16-bit resolution. Battery-powered display for mains-free configuration. Temperature-controlled fan. 3- and
5-pin DMX connections. RJ45 network connections. Art-Net and sACN. Wireless DMX™. Neutrik powerCON TRUE1 mains connections IN
and OUT. 2 x Omega mounting brackets included. Operating voltage 100–240 V AC. Power consumption 700 W.
The spotlight features the RDM standard (Remote Device Management). Remote Device Management allows the user to view the status and
configuration of RDM terminals via an RDM-capable controller.

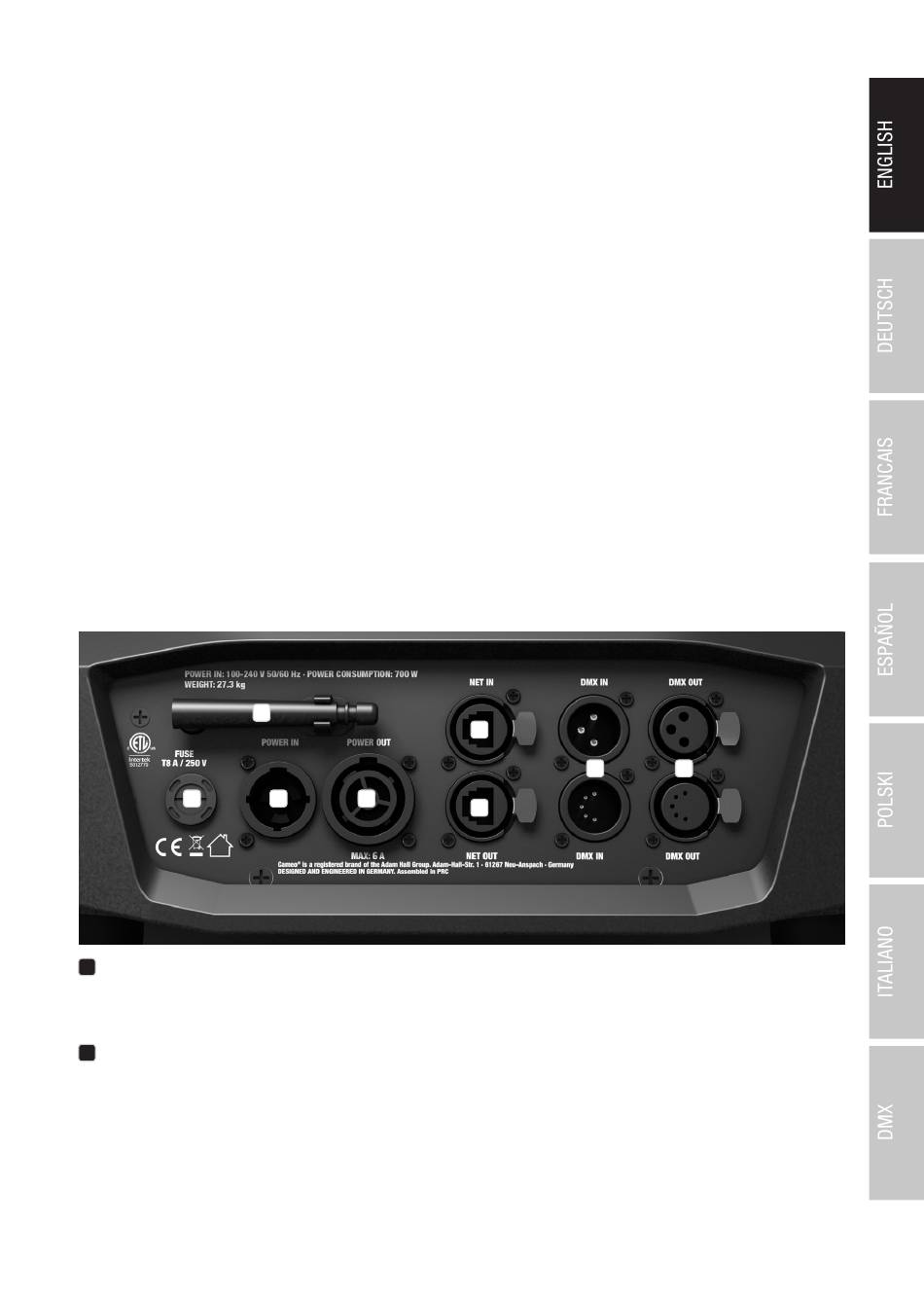

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

3
POWER IN
1
Neutrik powerCON TRUE1 mains input socket. Operating voltage 100–240 V AC/50–60 Hz. A suitable mains cable with powerCON TRUE1
plug is included.
POWER OUT
2
Neutrik powerCON TRUE1 mains output socket.. Facilitates power supply to other CAMEO lights. Ensure that the total power consumption of
all devices connected to the device does not exceed the given ampere (A) value.
8
1 2
6
4
7
5
5
