Optimizing the speaker settings automatically (YPAO)
The Yamaha Parametric room Acoustic Optimizer (YPAO) function detects speaker connections, measures the
distances from them to your listening position(s), and then automatically optimizes the speaker settings, such as
volume balance and acoustic parameters, to suit your room.
• During the measuring process, test tones are output at high volume. Ensure that
the test tones do not frighten small children. Also, refrain from using this function at
night when it may be a nuisance to others.
• During the measuring process, you cannot adjust the volume.
• During the measuring process, keep the room as quiet as possible.
• Do not connect headphones.
• Do not stand between the speakers and the YPAO microphone during the
measurement process (about 3 minutes).
• Move to the corner of the room or leave the room.

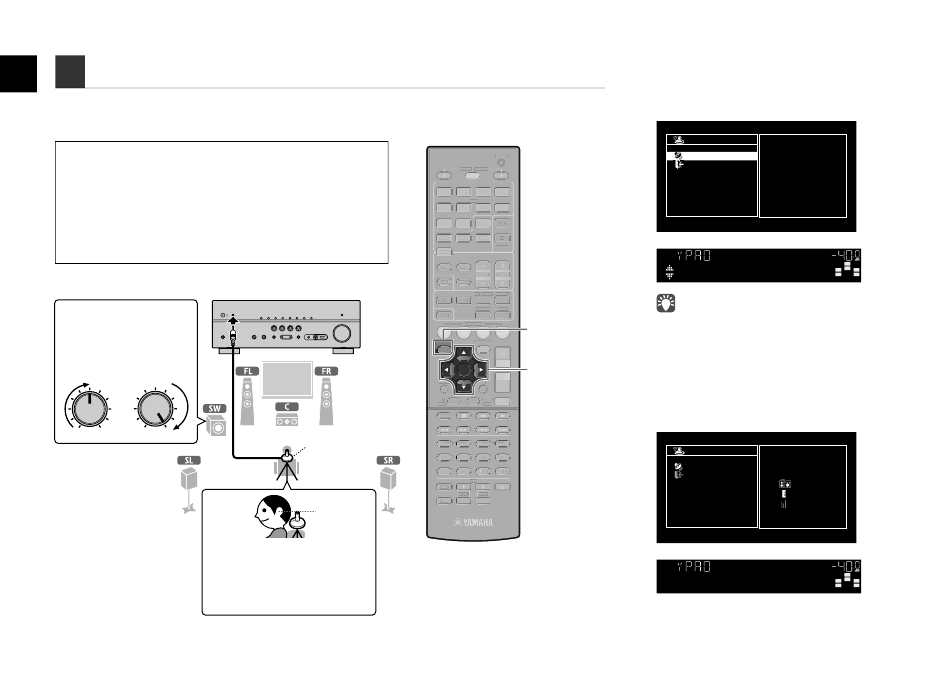

Preparing for YPAO
Turn on the subwoofer and set
the volume to half. If the
crossover frequency is
adjustable, set it to maximum.
CROSSOVER/
VOLUME
HIGH CUT
MIN
MAX
MIN
MAX
6
En
The unit (front)
YPAO microphone
Listening position
Ear height
Place the YPAO microphone at your
listening position (same height as your
ears). We recommend the use of a
tripod as a microphone stand. You can
use the tripod screws to fix the
microphone in place.
CODE SET
CODE SET
SOURCE
SOURCE
RECEIVER
RECEIVER
HDMI
HDMI
1
1
2
2
3
3
4
4
AV
AV
1
1
2
2
3
3
4
4
5
5
6
6
AUDIO
AUDIO
A
A
V-AUX
V-AUX
USB
USB
NET
NET
B
B
ZONE
ZONE
TUNER
TUNER
FM
FM
AM
AM
PRESET
PRESET
TUNING
TUNING
INFO
INFO
MEMORY
MEMORY
SUR. DECODE
SUR. DECODE
STRAIGHT
STRAIGHT
MOVIE
MOVIE
MUSIC
MUSIC
ENHANCER
ENHANCER
DIRECT
DIRECT
SLEEP
SLEEP
SCENE
SCENE
SETUP
BD
BD
TV
TV
NET
NET
RADIO
RADIO
DVD
DVD
SETUP
OPTION
OPTION
Cursor keys
ENTER
VOLUME
VOLUME
ENTER
RETURN
RETURN
DISPLAY
DISPLAY
TOP
TOP
POP-UP
POP-UP
MUTE
MUTE
MENU
MENU
MENU
MENU
MODE
MODE
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
0
0
10
10
ENT
ENT
TV
TV
INPUT
INPUT
TV VOL
TV VOL
TV CH
TV CH
MUTE
MUTE
1
Connect the YPAO microphone to the
YPAO MIC jack on the front panel.
The following screen appears.
A u t o S e t u p
S t a r t
P r e s s S E T U P k e y
t o S t a r t
E x i t
P o w e r A m p A s s i g n
B a s i c
[SETUP]:Start
• To cancel the operation, disconnect the YPAO microphone, or
use the cursor keys to select "Exit" and press ENTER, before
starting the measurement.
2
To start the measurement, press SETUP.
The measurement will start in 10 seconds.
The following screen appears on the TV when
the measurement finishes.
A u t o S e t u p
M e a s u r e m e n t
F i n i s h e d
S t a r t
Result
E x i t
3 / 2 / 0.1 ch
3.0 / 10.5 m
-3.0 / +10.0 dB
Finished
