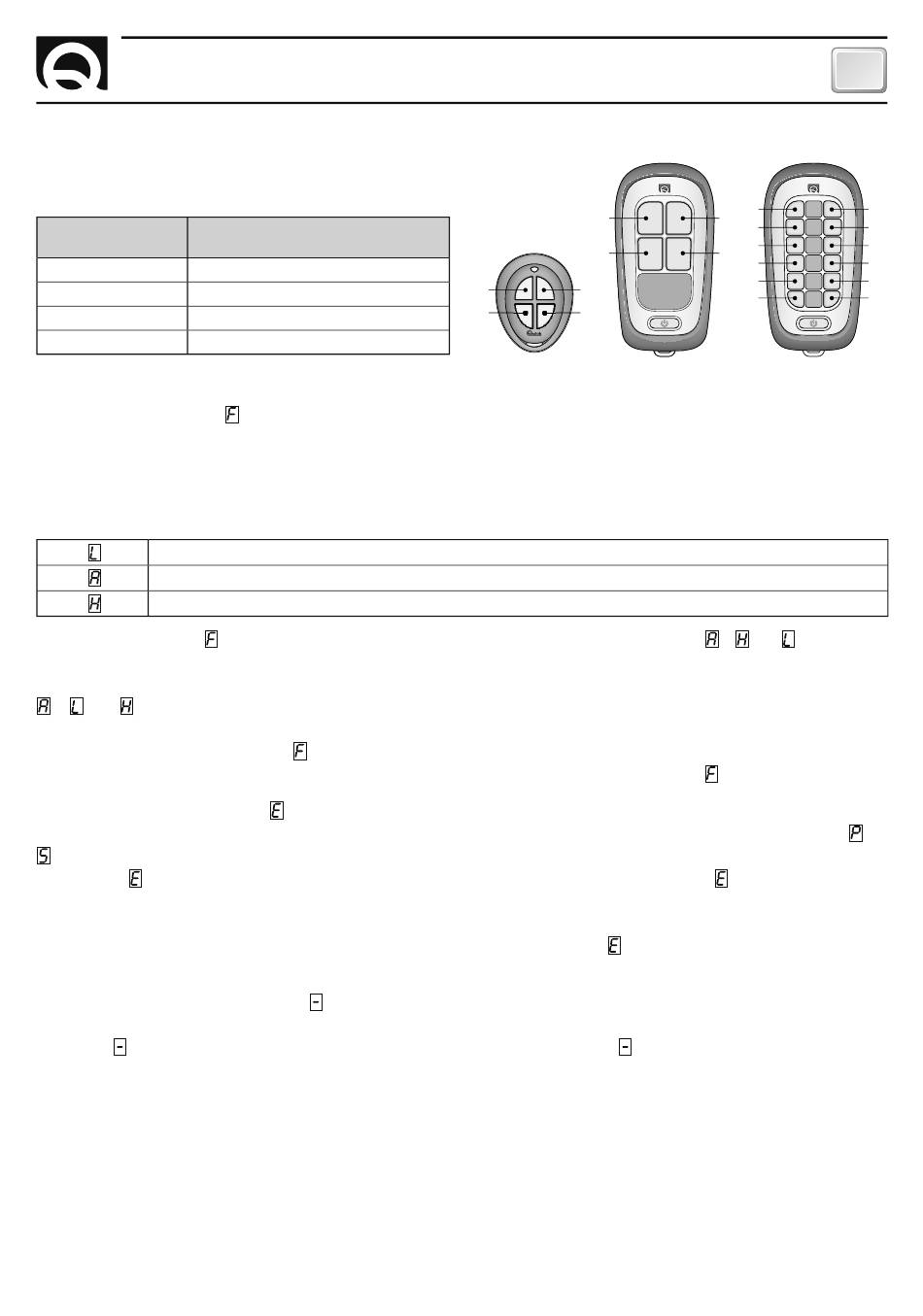

Example of programming with translation:
Press key 3 on an RRC radio transmitter.
KEY PRESSED
CORRESPONDENCE TO ENABLED RELAY
ON THE TRANSMITTER
ON THE RECEIVER
1
(None)
2
(None)
1
3
4
2
Key 3 corresponds to relay 1, key 4 corresponds to relay 2.
Filter function (letter
This function allows to select three different interference noise fi ltering modes within the function submenu
(see table).
The receiver is supplied set in AVERAGE mode.
Filter function submenu table
LOW: select when using in environments with only slight interference
AVERAGE: factory setting. Select when using in normal conditions
HIGH: select when using in environments with great interference
Once selected, letter
on the current setting saved in the receiver) fl ash at a constant frequency.
Release the confi guration button. By subsequently quickly pressing and releasing the confi guration button letter
,
or
(fl ashing at a constant frequency) can be selected. Once the confi guration has been chosen among
those selectable, keep the confi guration button pressed until the letter starts to fl ash at a fast rate, confi rming that
it has been saved; next, the letter
After 10 seconds, if the confi guration button is not pressed, it will go back to the letter
Erasing the memory (letter
This function allows to erase from the receiver's memory all transmitter IDs that have been saved using the
programming function.
Once letter
constantly on is selected, keep the confi guration button pressed until letter
larly, passed 3 more seconds, it will start fl ashing at a faster rate. This confi rms that it has been erased and then
the letter remains on. Release the programming button.
If the programming button is released before 5 seconds have passed, letter
and the erasing procedure is cancelled.
Exiting the confi guration menu (
This function allows to exit from the confi guration menu of the receiver.
Once the
symbol is selected, keep the confi guration button pressed, the
before shutting off. Release the confi guration button. When exiting the confi guration phase the ON/OFF LED will
start fl ashing again.
RADIO RECEIVER OPERATION
Reception of a command from the transmitter
When receiving a command from the RRC radio transmitter, the green ON/OFF LED will start fl ashing quickly.
The corresponding relay will activate and its activation is displayed by the red "relay activation" lighting up. Two
relays can be activated at the same time.
RRC R902/12 - REV001A
)
remains on; keep the confi guration button pressed until letter
will appear and remain on. Release the programming button
)
simbol)
OPERATION
1
3
1
2
3
4
will go back to being on constantly
symbol will start fl ashing quickly
GB
1
2
2
3
4
5
6
4
7
8
9
10
11
12
,
or
(depending
being on constantly.
or
stored fl ashing regu-
9
