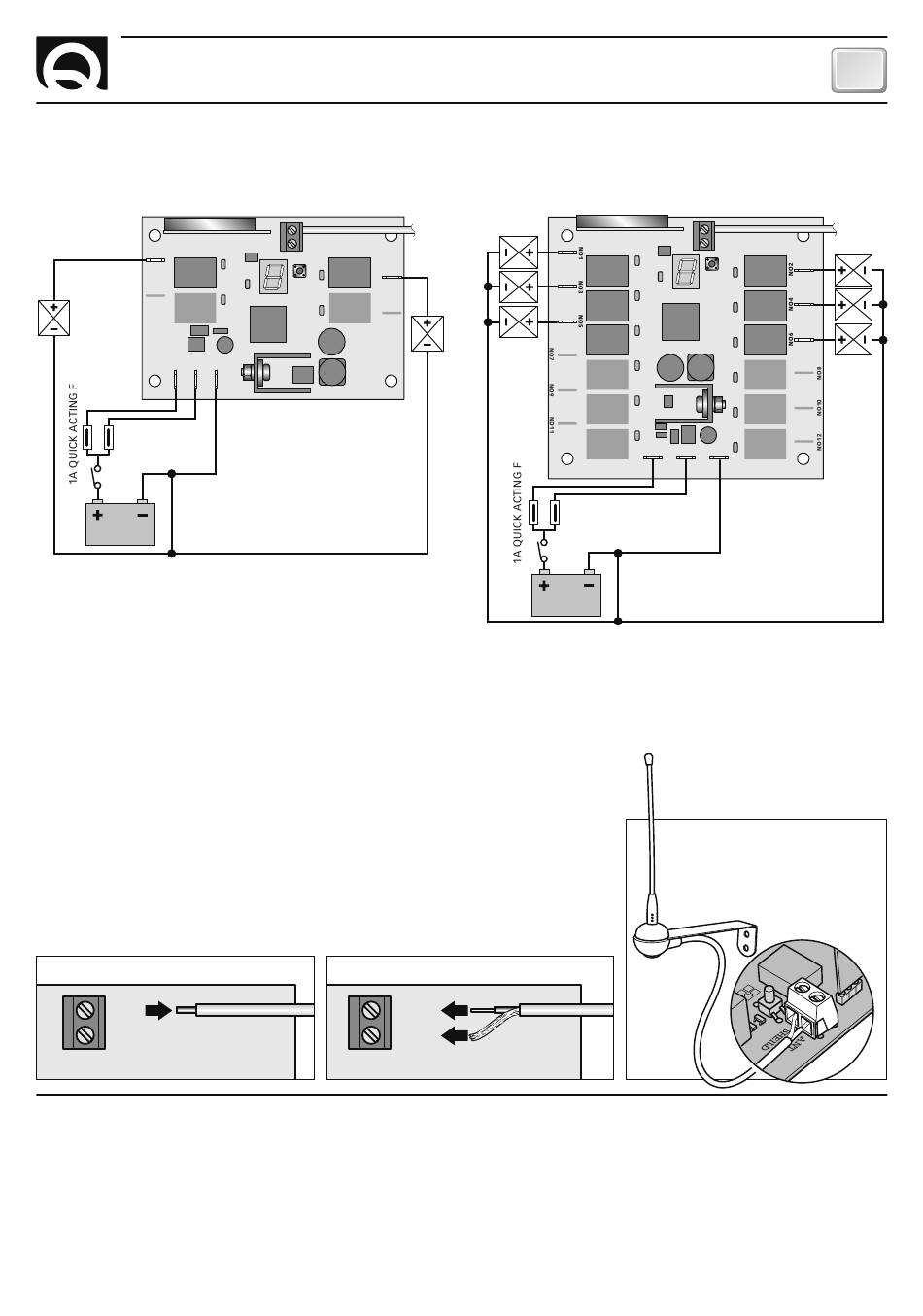

CONNECTION EXAMPLES

R902 - R904
FIG.2
NO1
relay 1
*
NO3
relay 3
V+ COM
FUSE **
COMMON FOR THE
USED DEVICES
10,5-31Vdc
BATTERY
*
DEVICES USED IN DIRECT CURRENT
**
THE FUSE VALUE MUST BE CHOSEN BASED ON ABSORPTION
OF THE USED DEVICES.

EXTERNAL ANTENNA

If the installation of an external antenna is required, proceed as follows:
• remove the internal antenna, made of an 8 cm long folded wire, from the
ANT input (fi g.3).
• Connect the centre core of the coaxial cable of the antenna to the ANT
input (fi g.4). The metallic shield must be connected to the SHIELD input.
• Coaxial cable during laying must not be throttled and bended at a right
angle. Must also be taken away from heat sources.
• The antenna must be installed vertically at a distance of at least 1 metre
above the boat fl oating level, away from electrical sources of disturbance
and not inside any metal structures.
• Do not install the antenna close to that of other equipment as VHF, radar,
GPS, etc.
FIG.3
ANT
SHEILD
FUNZIONAMENTO
Start-up
The receiver starts-up once the power supply is connected. After start-up, the ON/OFF LED and all display seg-
ments will light up for a short time.
Awaiting signal status
The ON/OFF LED fl ashes slowly. The receiver waits for a valid command from a stored transmitter or for confi gura-
tion.
RRC R902/12 - REV001A
ANT
SHEILD
PROG
relay 2
relay 4
1
V -
FIG.4
INSTALLATION - OPERATION
R906 - R908 - R910 - R912
NO2
*
NO4
*
10,5-31Vdc
BATTERY
ANT
SHEILD
ANT
SHEILD
PROG
relay 1 relay 2
relay 3 relay 4
relay 5 relay 6
relay 7 relay 8
relay 9 relay 10
relay 11 relay 12
V+ COM V -
FUSE **
COMMON FOR THE USED
DEVICES
EXTERNAL ANTENNA
GB
*
7
