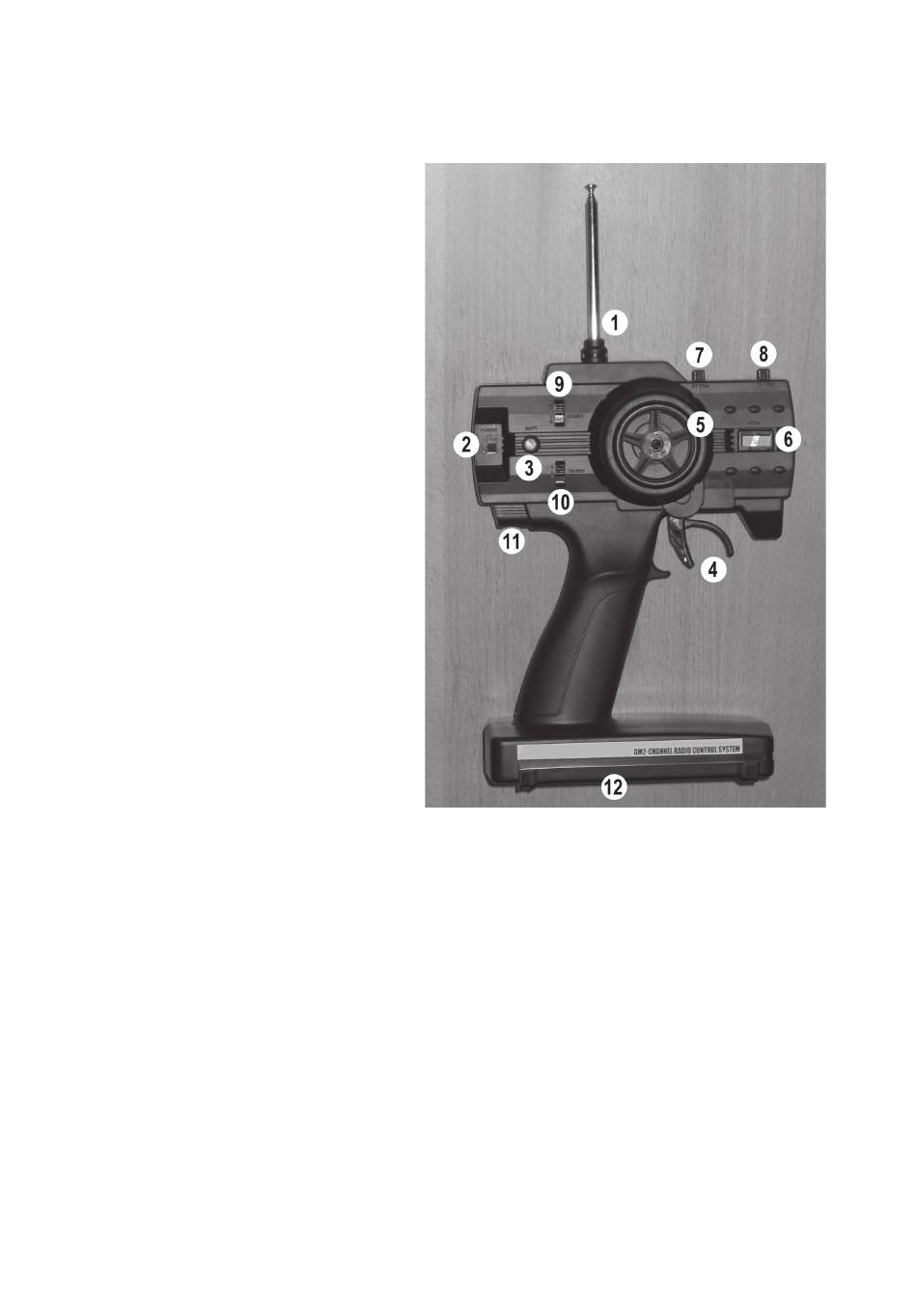

8. Transmitter Controls
1 Telescopic aerial
2 On/off switch („I" = on, „O" = off)
3 LED „BATT", is lit when the transmitter is on or
blinks if the battery/accumulator voltage is too
low
4 Throttle/brake lever
5 Steering dial
6 Transmitter crystal (exchangeable)
7 Trim control „ST.TRIM" for steering
8 Trim control „TH.TRIM" for the motor:
9 Reverse switch „ST.REV" for steering
10 Reverse switch „TH.REV" for the motor
11 Charging jack
Please note: Maybe this version of the
transmitter does not have a charging socket. In
this case, remove the inserted batteries and
charge them externally.
12 Battery/rechargeable battery compartment for 8
AA/mignon type batteries/rechargeable batteries
All manuals and user guides at all-guides.com
Figure 1
39
