WARNING: If you do not install and tighten the safety screw, washers, nut and
safety pin correctly, there is a risk that the fan will fall.

Electrical connections

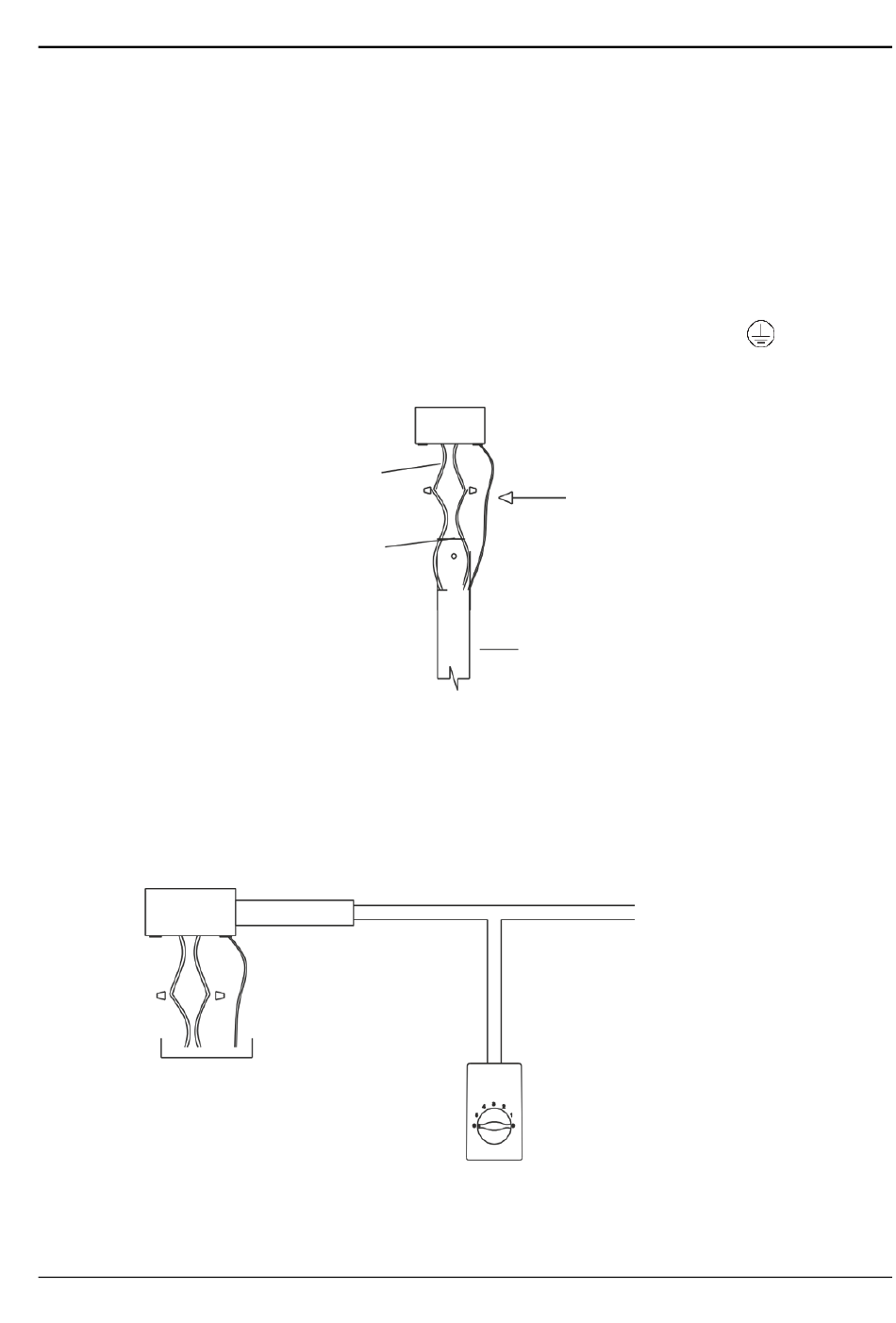

Carry out electrical connections according to the diagram shown and described
below.
- BROWN wire "LIVE": motor phase
- BLUE wire "NEUTRAL": common neutral for motor
- GREEN / YELLOW wire: Grounding, corresponding to the symbol
NOTE: The colour of cables in the electrical installation may vary.
Install the 5-speed wall control
Connect the wires to the fan and those coming from the ceiling with terminal
block according to the wiring diagrams provided below: the fan is controlled by
wall control switch.
Connection
to fan
6
Brown (Live)
Blue (Neutral)
Neutral
Green (Earth) in case of
not having this cable in
your electrical installation,
connect to electrical box.
Mounting rod
Live
Wall Control
.
Power supply
