AquaScape Pondless Waterfall Vault Manuel D'instructions page 5

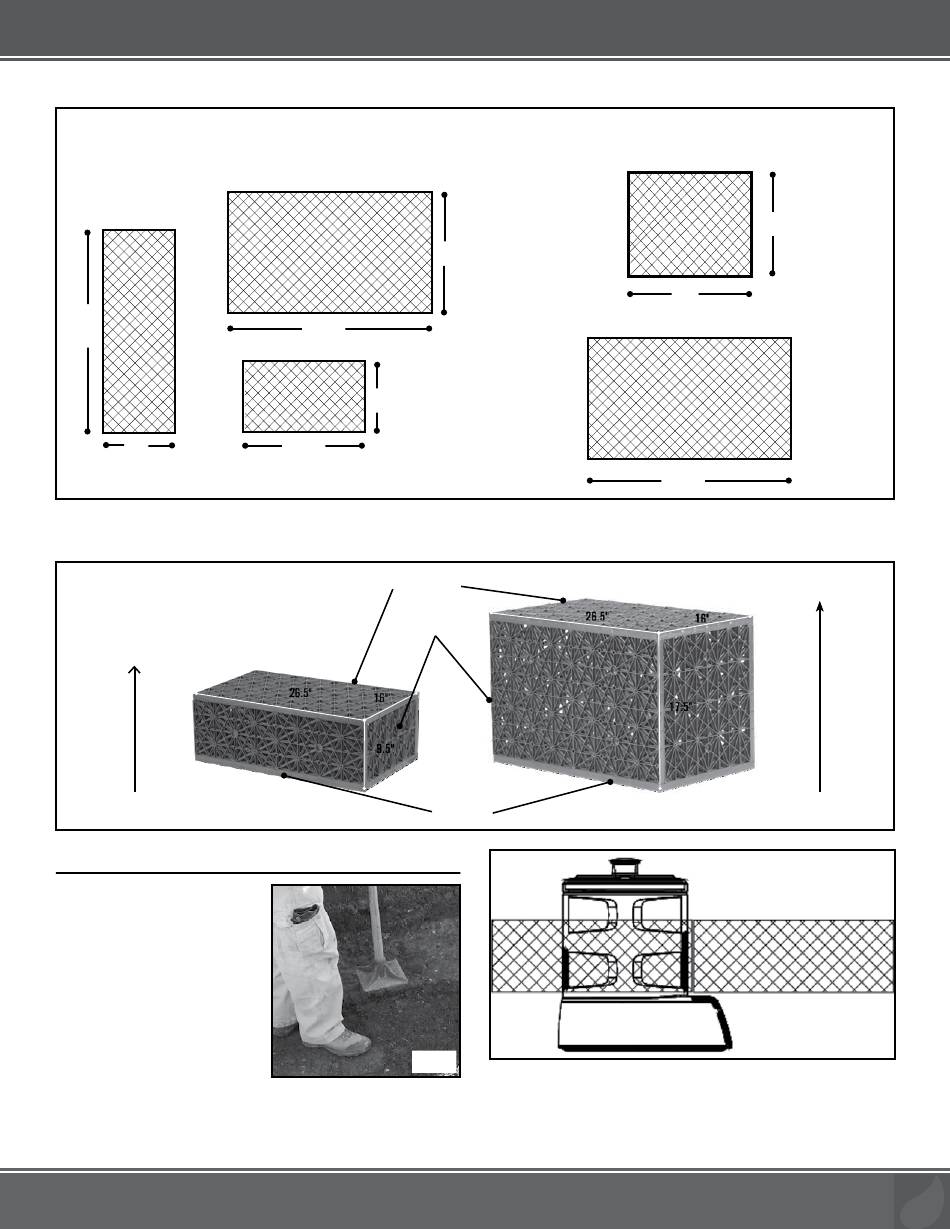

AQUABLOX COMPONENTS
AquaBlox Small Water Storage Module 8 panels: (2) "A", (2) "C" and (4) "D"
Panel A
Panel C
26.5"
8"
NOTE: Be sure to check all pieces upon arrival for any
damages that may have occurred during shipping.
UP
Side
STEP 4
PREPARE BASE
• Use a soil tamper to ensure
the base of the excavation is
smooth soil, flat, and free of
lumps and debris (Ex. 4).
• Check the size and depth of
the excavation by placing the
Pondless Waterfall Vault and
AquaBlox into the excavated
area. The AquaBlox should
sit level on the front ledge of
the Pondless Waterfall Vault,
as well as line up level to the side of the vault (Ex. 5). There
should be approximately 6" between the AquaBlox and
the soil.
☎
aquascapeinc.com | CAN (866) 766-3426 |
26.5"
Panel D
8"
16"
Load-Bearing
Top
AquaBlox Small
26.5"
16"
9.5"
Ex. 4
☎
US (866) 877-6637
AquaBlox Large Water Storage Module 8 panels: (4) "A" and (4) "B"
16"
Panel A
AquaBlox Large
26.5"
Side
Load-Bearing
Bottom
• If existing soil conditions do not meet requirements listed
above, add compactible material such as sand. The
compactible material should be spread to a 4" minimum
depth and compacted.
Panel B
14.5"
16"
26.5"
16"
Side
17.5"
AquaBlox should sit level on the front
ledge of the vault and line up level to
the side of the vault.
UP
Ex. 5
