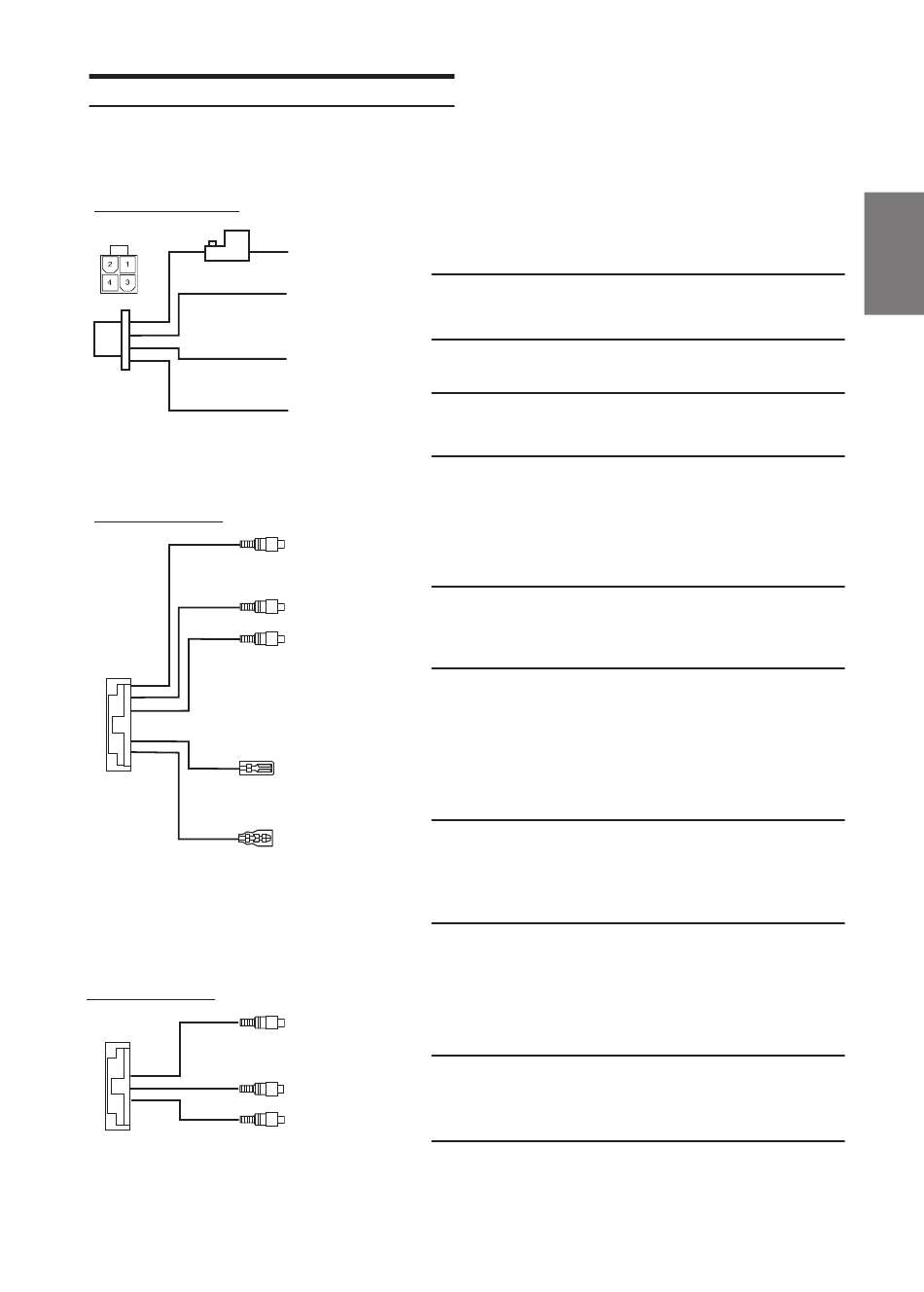

Connections

Power Connector

AV Connector 1
AV Connector 2
Yellow
1) BATT
Red
2) ACC
Black
3) GND
Green
4) DOOR
Yellow
AUX IN 1 (VIDEO)
White (L)
AUX IN 1 (AUDIO L)
Red (R)
AUX IN 1 (AUDIO R)
White/Brown
REMO OUT
White/Brown
REMOTE IN
Yellow
AUX OUT (VIDEO)
AUX OUT (AUDIO L) White (L)
AUX OUT (AUDIO R) Red (R)
ALPINE's PKG-RSE3DVD needs the following power
connections to assure proper operation of the monitor.
• Battery Lead
Connect this lead to the positive (+) post of the vehicle's battery.
• ACC
Connect this line to the vehicle's ACC line.
(Switched 12V, ignition)
• GND
Connect this line to the vehicle's GND line.
• Door
Connect this lead to the vehicle door
Connect this lead to the vehicle's door
(polarity selectable, see following page)
• Video Input Connector
Connects to the video output of other video products.
• Audio Input Connectors
Connects to the audio output of other video products.
• Remote Out
To control ALPINE DVD player, TV tuner or AV head unit, connect
to each REMOTE IN.
• Remote In
To control ALPINE PKG-RSE3DVD from AV head unit in the front
area of the vehicle, connect this line to the ALPINE DVD-HU or
LCD monitor REMOTE OUT.
• Video Output Connector
Connects to the video inputs of other video products.
• Audio Output Connectors
Connects to the audio inputs of other audio or video
products.
5
-EN
