Rehasense Navigator Air Mode D'emploi page 4

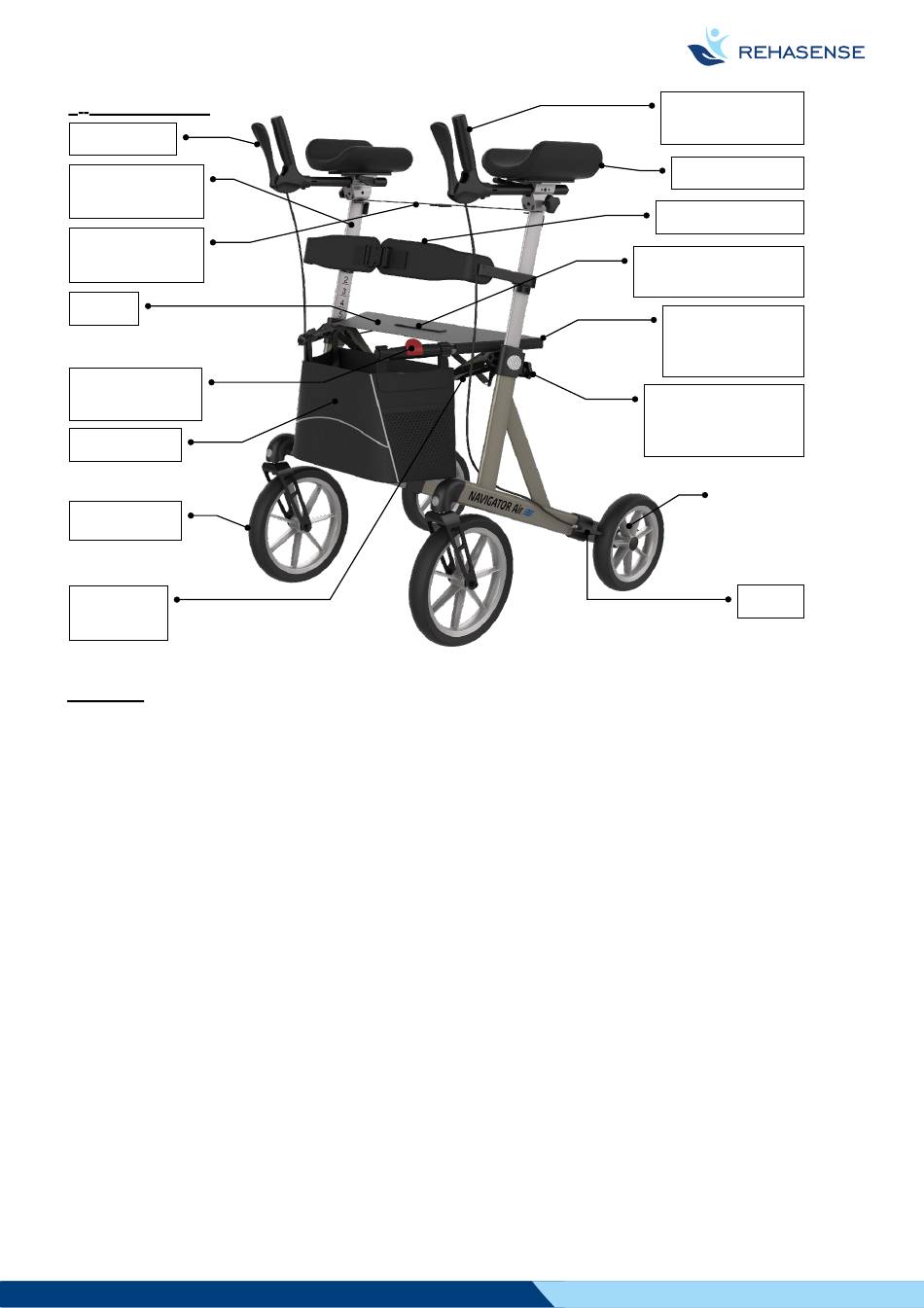

5 Product details
Brake lever
Inner tube for
forearm support
S trap to stabilize
the upper part
Seat
Red push button
to open
Carrying bag
Turning wheel
Foldable
Crossbar
6 Usage
Using the above image, the device can be prepared for use. However, we encourage
you to follow the instructions below step by step.
Initial Check

In the first instance take the device out of the box and check (using the image above) that nothing is
missing.

If you discover at this stage that some part is missing or damaged do not continue to assemble the
product. Contact your supplier of the product right away.
Assembly of the rollator
 Mount the left and the right forearm supports (Picture 1) on the corresponding tubes in
combination with the clamps of the stabilization strap (Picture 2) using the four screws and
the Allen key from the mounting kit.
 Insert the push handles with the brake levers (Picture 3) into the forearm support assembly
and preliminary secure with the clamping lever (2)
 Connect both sides of the backrest with the buckle in the middle (4)
 Close the buckle of the stabilizing strap (3) between the forearm supports. With the Velcro
material the length of the strap should be adjusted in such a way that there is a light pulling
force.
11 / 2023
4
Length adjustable
push handle
Forearm support
Backrest ( included )
Lock release pulling
strip (pull here to fold)
Seat tube (push
here to open the
rollator and lock it)
L ocking knob for
height adjustment of
forearm support
Step pedal
Brake
