LEGRAND Wattstopper FSP-211 Instructions D'installation page 2

1. Determine an appropriate mounting location inside the light fixture
minimizing the electric light contribution to the sensor's photocell.
Allow a minimum distance of 0.2" (5.1mm) from the wiring end of
the sensor to the wall of the fixture.
2. Drill a hole 1.30" (33.0mm) in diameter through the sheet metal in
the bottom of the fixture.
3. Add the rubber gasket to the threaded collar, and install the sensor
face down, parallel to the mounting surface. Ensure the rubber
gasket touches the inside surface of the fixture. Install the plastic
nut securely against the fixture to a torque of 25-30 in-lbs to ensure
IP rating is maintained.
4. Align the locking features between the sensor and lens module and
push the lens module forward until the o-ring seals firmly. Turn the
lens module clockwise to ensure it locks in place.

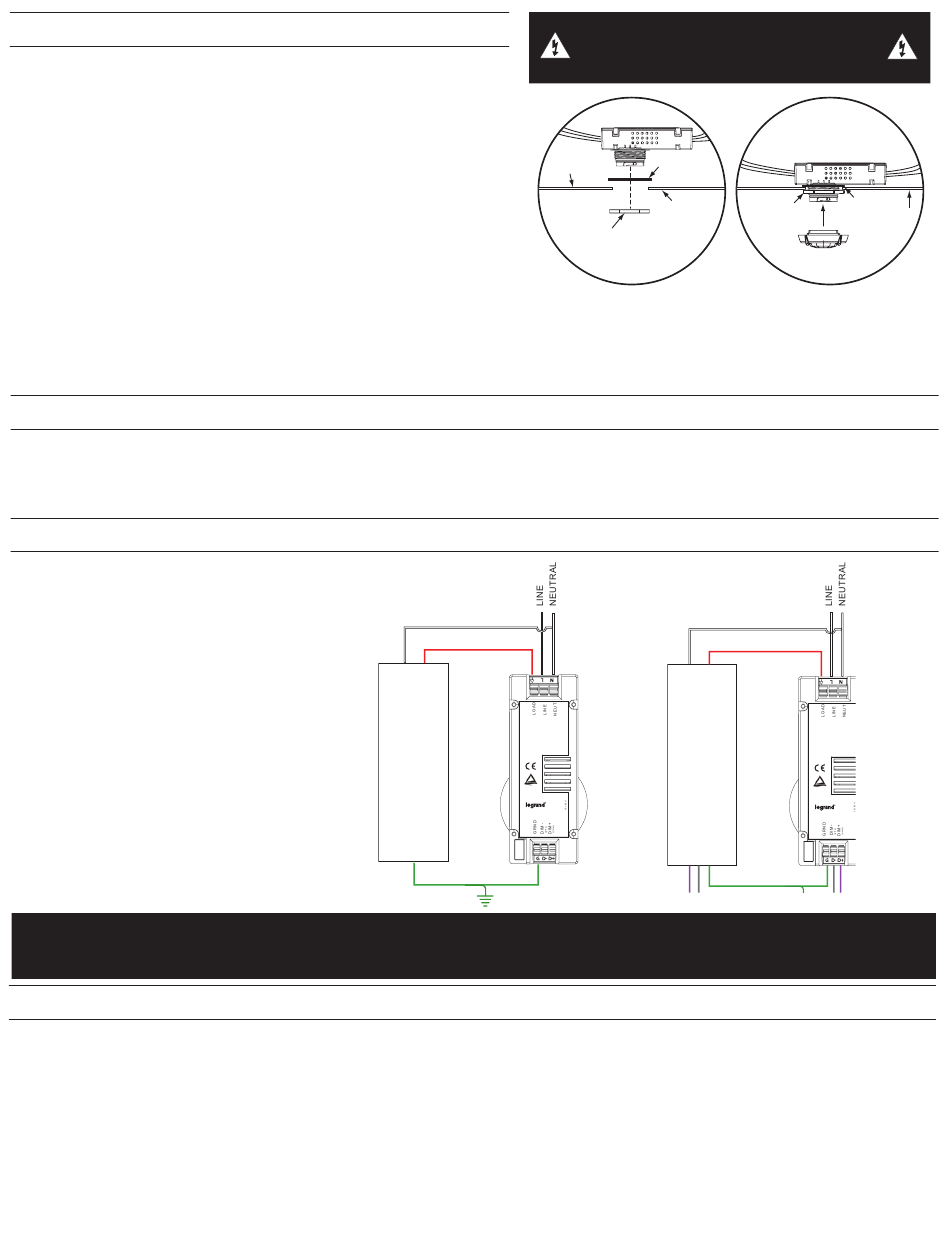

5. Connect wires as shown in wiring diagram.
6. Restore power from the circuit breaker.
NOTE: An optional skirt can be installed in place of the tightening nut.
See the Ordering Information table on page 4 for details.
Several lenses are available for use with the FSP-211. Lenses give coverage at mounting heights between 8' - 40' for applications such
as offices, warehouses, and outdoor use. Density and range of the coverage is determined by the type of lens and mounting height.
Lens modules are IP-66 rated when combined with an FSP-211 sensor mounted to an outdoor-rated fixture. See the FSP-Lx Lens
Coverage Guide for more information.
NOTE: The FSP-211 must be grounded to
ensure signal integrity, not for safety
ground.
OUTDOORS—USE AT THE EXPOSED SENSOR COLLAR PART ONLY WHEN INSTALLED AT THE SPECIFIC LOCATION PER
The configuration process establishes the appropriate parameters for the FSP-211 operation. This is done through the FSIR-100
configuration tool. If no configuration steps are taken, the sensor will use its default parameter values.
The FSIR-100 Wireless IR Configuration Tool is a handheld tool for changing defaults and testing of Wattstopper FSP-211.It provides
wireless access to the FSP-211 sensors for parameter changes and testing.
The FSIR-100 display shows menus and prompts to lead you through each process. The navigation pad provides a simple way to
navigate through the customization fields.
Within a certain mounting height of the sensor, the FSIR-100 allows modification of the system without requiring ladders or tools; simply
with a touch of a few buttons.
The FSIR-100 IR transceiver allows bi-directional communication between the FSP-211 and the FSIR-100 configuration tool. Simple
menu screens let you see the current status of the sensor and make changes. It can change FSP-211 sensor parameters such as high/
low mode, sensitivity, time delay, cut off, and more. With the FSIR-100 you can also establish and store FSP-211 parameter profiles.
INSTALLATION
INSTALLATION INSTRUCTIONS WITH A LISTED OUTDOOR ENCLOSURE.
USING THE FSIR-100 CONFIGURATION TOOL
Inside Fixture
Wall
NOTE: The Outside Fixture Wall thickness should be no
LENS OPTIONS
WIRING
NEUTRAL
LOAD
14-18 AWG Solid CU Wire Only
FSP-211
High/Low PIR
Occupancy Sensor
230 VAC, 50 Hz
1200W max ballast
Non-Dimming
5E4
Driver
18-20 AWG Solid CU Wire Only
* GROUND
2
WARNING: TURN THE POWER OFF AT THE
CIRCUIT BREAKER BEFORE WIRING.
FSP-211
Rubber
Gasket
Outside
Fixture Wall
Tightening Nut
(or Skirt)
greater than 0.125" (3.18mm) for optimal sensor
mounting and security.
NEUTRAL
Dimming
Driver
*GROUND
GRAY (-)
VIOLET (+)
Rubber
Tightening Nut
Gasket Fixture
(or Skirt)
Wall
Lens Assembly
LOAD
14-18 AWG Solid CU Wire Only
FSP-211
High/Low PIR
Occupancy Sensor
230 VAC, 50 Hz
1200W max ballast
5E4
18-20 AWG Solid CU Wire Only
