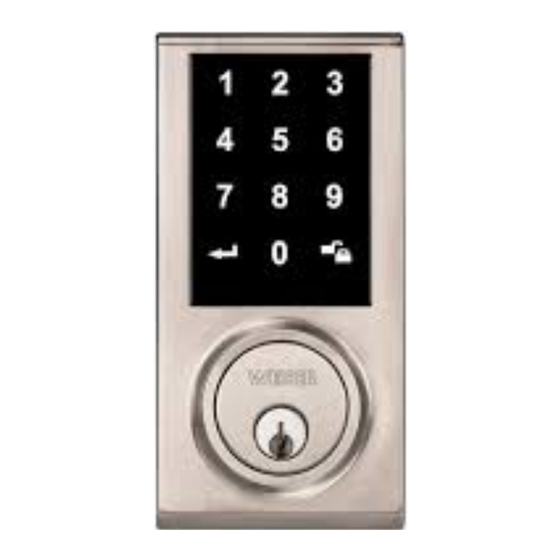

GED1400 Touchscreen
Electronic Deadbolt
Installation and User Guide
Required tools
4 AA Batteries Ruler Phillips screwdriver
Additional Tools (depending on application)
Wood
block
Hammer Pliers
1
Prepare the door and check dimensions
If drilling a new door, use the supplied template and the complete
door drilling instructions available at www.kwikset.com/doorprep
A Measure to confirm that the hole in
the door is either 2-1/8" (54 mm) or
1-1/2" (38 mm).
2-1/8"
54 mm
or
1-1/2"
38 mm
Note: Additional door preparation may be
required for doors with 1-1/2" (38 mm) holes.
Consult the deadbolt drilling instructions at
www.kwikset.com/doorprep
2
Install the latch and strike
A Hold the latch in front of the door hole, with
the latch face flush against the door edge.
A
Is the slotted hole centered in the door hole?
YES
or
slotted hole
is centered
No adjustment is Rotate latch face as
required. Proceed shown to extend latch.
to next step.
Weiser
Technical Support
1-800-501-9471
www.weiserlock.com
B Measure to confirm that the backset is
either 2-3/8" or 2-3/4" (60 or 70 mm).
b a
2-3/8" or 2-3/4" c k
s e
60 or 70 mm
B Is the door edge chiseled?
YES
Install latch in door with
supplied screws.
Optional: Remove square
corner face and replace with
round corner face (if needed).
NO
A
Ensure A2 snaps into place.
slotted hole is
NOT centered
180°
A
Make sure
slotted hole is at
bottom of latch.
Parts in the box
Latch
A A2
Exterior Assembly
E
Interior Cover
J
C
Measure to confirm that the hole in
the door edge is 1" (25 mm).
t
NO
or
chiseled
not
chiseled
Use a flathead screwdriver to
lift tabs on collar of rectangular
face to remove it from latch.
Install drive-in collar.
A
A2
Align tabs with
B
holes in collar.
Ensure collar
snaps into place.
Pull collar to test
for tight fit.
Install latch in door with
A
wood block and hammer.
K (2x)
Make sure
slotted hole is at
bottom of latch.
1 / 4
Drive-In Collar Strike
B C
Keys Mounting Plate
F G
Latch and Interior Assembly
Strike Screws Screws
K L
D Measure to confirm that the
door is either 1-3/8" or 1-3/4"
(35 mm or 44 mm) thick.
1"
25 mm
C
Install strike on the door frame.
Make sure hole in door frame is drilled a
minimum of 1" (25 mm) deep.
K (2x)
D
IMPORTANT: Make sure the latch bolt is fully
retracted (in the unlocked position).
Cylinder
D
Interior
Assembly
H
Mounting Plate
Screws
M
1-3/8"– 1-3/4"
35 mm or 44 mm
C
door frame
unlocked
