Battery Replacement

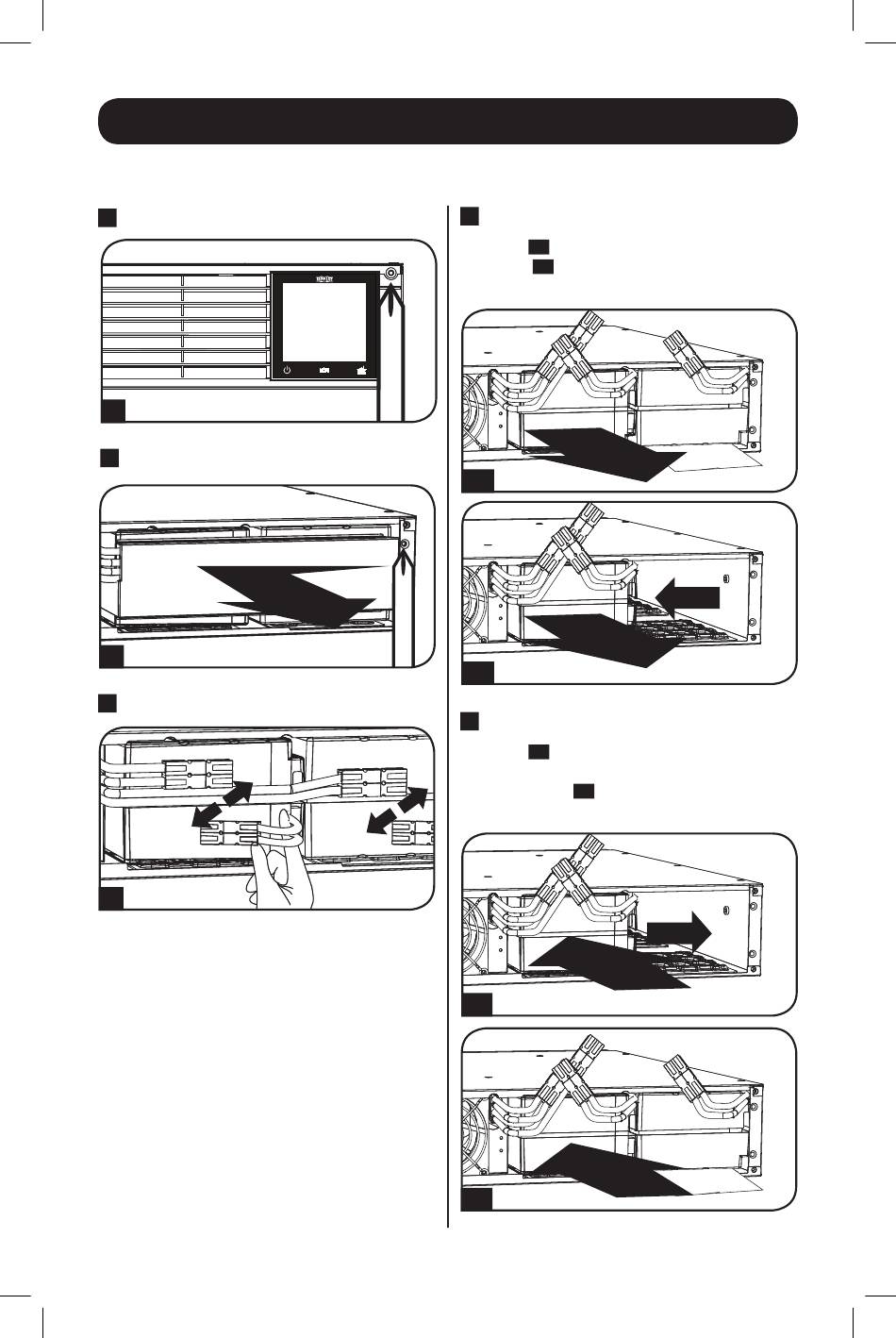

SMX3000XLRT2UA Battery Replacement Procedure
Remove Front Panel
1
4 x screws
1
Remove Battery Retention Plate
2
4 x screws
2
Disconnect Batteries
3
3
13-09-242-93-3184.indb 22
Remove/Recycle Batteries
4
First, remove the left row of batteries.
4A
Then, 4B slide the right row of batteries to
the left and remove.
4A
4B
Add New Batteries
5
First, install the right row of batteries by
5A
inserting them and sliding them to the
right. Then, 5B install the left row of
batteries.
5A
5B
