SERVICE
PROCEDURES
WARNING: Never service
heater while it is plugged in, con-
nected to propane supply, oper-
ating, or hot. Severe burns and
electrical shock can occur.
ELECTRICAL SYSTEM
The entire electrical system for this heater is
contained within the motor. If any part of the
electrical system is damaged, you must re-
place motor.
MOTOR
1. Remove three screws that attach fan
guard to heater shell.
2. Remove motor and fan guard from
heater shell (see Figure 6).

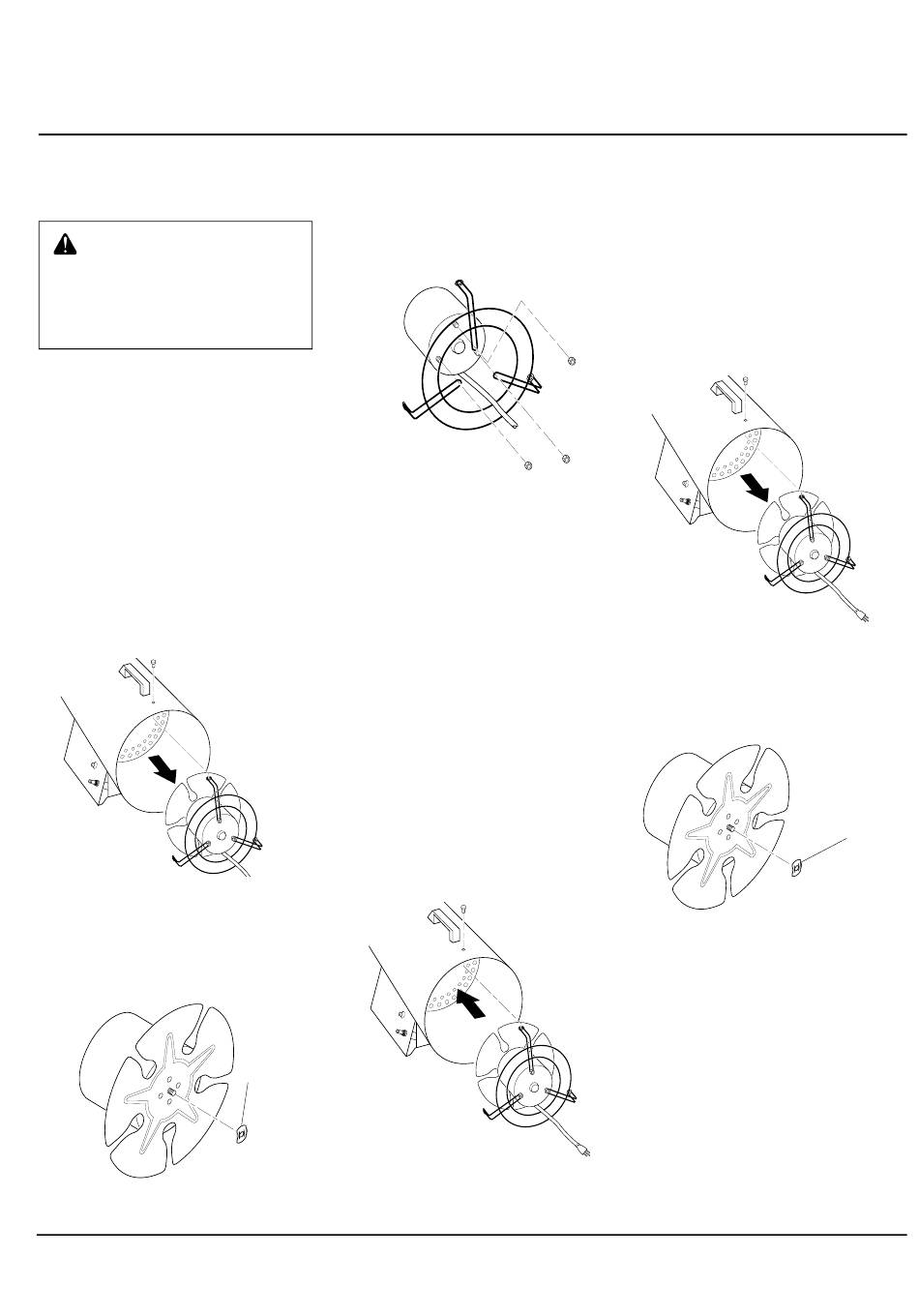

Figure 6 - Removing Motor and Fan Guard
from Heater
3. Use pliers to remove the fan nut from
front of motor shaft (see Figure 7).
Figure 7 - Removing Fan Nut from Motor
Shaft
103907
All manuals and user guides at all-guides.com
4. Remove fan. Be careful not to damage
the fan blade pitch.
5. Remove three nuts that attach fan guard
to motor using nut-driver. Remove fan
guard from motor (see Figure 8).
Figure 8 - Removing or Attaching Fan
Guard from Motor
6. Discard old motor.
7. Attach fan guard to new motor with
three nuts. When attaching fan guard
to motor, you must position power cord
as shown in Figure 8. Tighten nuts
firmly.
8. Place fan onto motor shaft of new
motor.
IMPORTANT : When placing fan onto
motor shaft, make sure part number
stamped on fan is facing motor. Attach
fan nut to end of motor shaft. Tighten
fan nut firmly.
9. Place motor and fan guard into rear of
heater shell. Make sure power cord is
properly located (see Figure 9).
Fan
Nut
Figure 9 - Replacing Motor and Fan Guard
into Heater
OWNER'S MANUAL
10. Insert three screws through heater shell
FAN
1. Remove three screws that attach fan
2. Remove motor and fan guard from
Figure 10 - Removing Motor and Fan
Guard from Heater
3. Use pliers to remove the fan nut from
Figure 11 - Removing Fan Nut from Motor
Shaft
4a. If replacing fan, remove old fan and
4b. If cleaning fan, remove fan. Be careful
5. Clean fan using soft cloth moistened
6. Dry fan thoroughly.
7
and into fan guard. Tighten screws
firmly.
guard to heater shell.
heater shell (see Figure 10).
front of motor shaft (see Figure 11).
discard. Go to step 7.
not to damage the fan blade pitch.
with kerosene or solvent.
Fan
Nut
Continued
