Guide technique / Technische Anleitung / Technical Guide
Fait par: pelrom
CALIBRE – KALIBER – CALIBRE
Fuseau horaire / Zeitzone / Time zone
QUANTIEME PERPETUEL / EWIGER KALENDER /
PERPETUAL CALENDAR
11
ø 25,60 mm
Hauteur mouvement
Werkhöhe
Movement height
Hauteur sur pile / Höhe auf Batterie / Height on battery
Nombre de rubis / Anzahl Rubine / Number of jewels
Quantième perpétuel / Thermocompensé
Ewiger Kalender / Thermokompensation
Perpetual calendar / Thermocompensation
OMEGA SA
All manuals and user guides at all-guides.com
Date: 11.04.2005

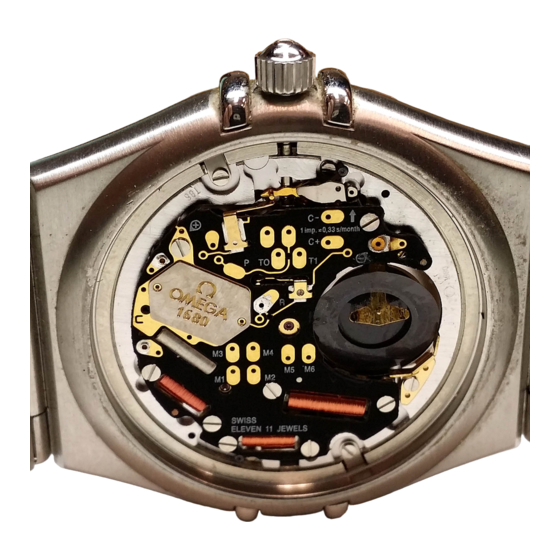

1680 B
E.O.L.
1
/
'''
2
C Ð
1 imp. = 0,33 s/month
C +
P
L
T
Français
Deutsch
WORLD SERVICE ORGANIZATION
English
TG-19-C-037-FDE - A - PAGE 1 - 1680B
TG-19-C-037-FDE
A
3,00 mm
3,75 mm
11
