PROPANE CONSTRUCTION HEATER
SERVICE
PROCEDURES
Continued
FAN
1. Remove three screws that attach fan
guard to heater shell.
2. Remove motor and fan guard from
heater shell (see Figure 11).
3. Use pliers to remove the fan nut from
front of motor shaft (see Figure 12).
4a. If replacing fan, remove old fan and
discard. Go to step 7 below.
4b. If cleaning fan, remove fan. Be careful
not to damage the fan blade pitch.
5. Clean fan using soft cloth moistened
with kerosene or solvent.
6. Dry fan thoroughly.
7. Place fan onto motor shaft.
IMPORTANT: When placing fan onto
motor shaft, make sure part number
stamped on fan is facing motor.
8. Attach fan nut to end of motor shaft.
Tighten fan nut firmly.
9. Place motor and fan guard into rear of
heater shell. Make sure power cord is
properly located (see Figure 13).
10. Insert three screws through heater shell
and into fan guard. Tighten screws
firmly.

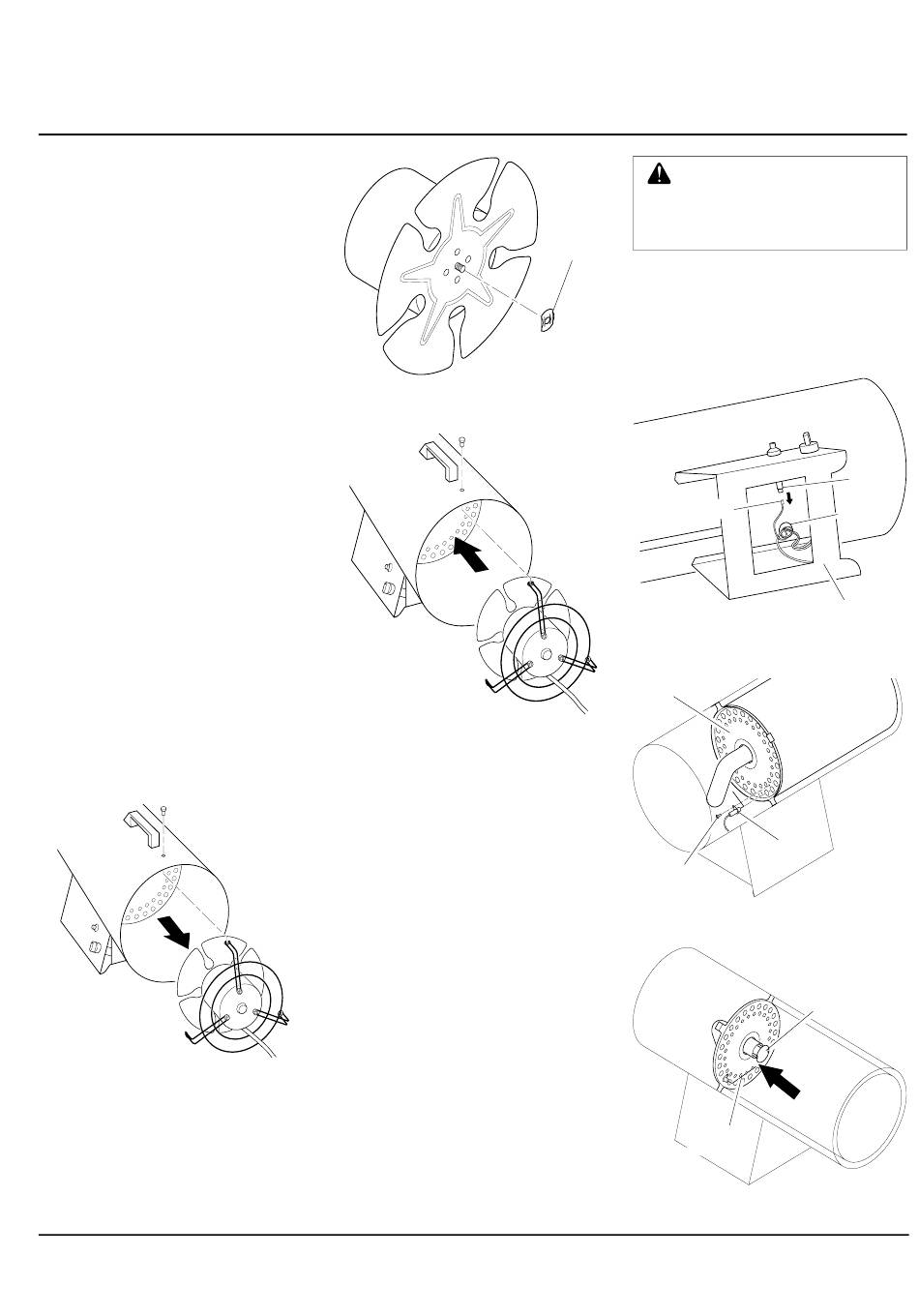

Figure 11 - Removing Motor and Fan
Guard from Heater
All manuals and user guides at all-guides.com
Figure 12 - Removing Fan Nut from Motor
Shaft
Figure 13 - Replacing Motor and Fan
Guard into Heater
IGNITOR
1. Remove motor and fan guard from
heater (see Motor, page 7, steps 1
through 5).
2. Remove black ignitor wire from piezo
ignitor. Access ignitor wire through un-
derside of heater base (see Figure 14).
Push wire up through bushing in heater
shell.
3. Remove ignitor mounting screw from
rear head using nut-driver or standard
screwdriver (see Figure 15).
4. Remove ignitor from rear head.
5. Install new ignitor. Attach ignitor to rear
head with ignitor mounting screw.
6. Run ignitor wire from new ignitor
through bushing in heater shell. Attach
ignitor wire to piezo ignitor.
7. Set gap between ignitor electrode and
target plate to 4.3 mm (.17 in) (see Fig-
ure 16).
8
WARNING: Make sure heater
is disconnected from propane
supply. Heater could ignite caus-
ing severe burns.
Fan Nut
8. Test for spark. Push piezo ignitor but-
ton and watch for spark between igni-
tor electrode and target plate.
9. Place motor and fan guard into rear of
heater shell (see Motor, page 7, steps 9
and 10).
Ignitor Wire
Figure 14 - Removing Ignitor Wire from
Piezo Ignitor
Rear
Head
Ignitor
Mounting
Screw
Figure 15 - Removing Ignitor Mounting
Screw and Ignitor
Ignitor
Electrode
Figure 16 - Clearance between Ignitor
Electrode and Target Plate
Piezo
Ignitor
Bushing
Underside of Heater Base
Ignitor
Target Plate
Gap
Area
