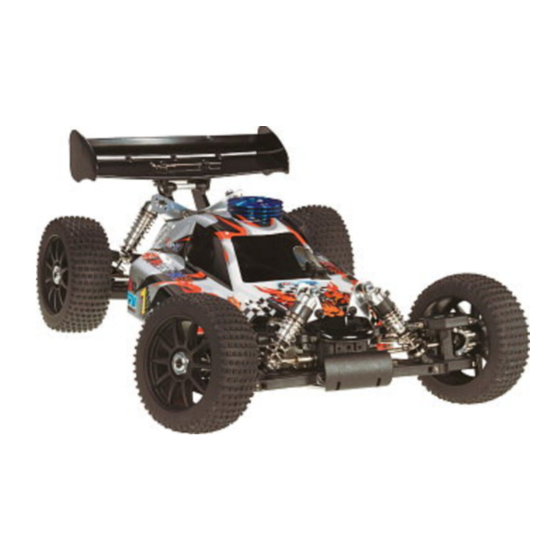

STADIUM-BUGGY "REX-X PROMO II"
Service manual for 1:8 REELY BUGGY "REX-X PROMO II" RTR + ARR
Item-No: / Best.-Nr.: / N° de commande : / Bestnr.:
All manuals and user guides at all-guides.com
M
ANUAL
Version 01/08
Version 01/08
Version 01/08
Versie 01/08
23 50 00 / 23 50 10

Publicité

loading

Manuels Connexes pour Reely ROAD REX-X PROMO II

Sommaire des Matières pour Reely ROAD REX-X PROMO II

  • Page 1 OTICE DE CONSTRUCTION Version 01/08 OUWHANDLEIDING Versie 01/08 STADIUM-BUGGY “REX-X PROMO II” Service manual for 1:8 REELY BUGGY “REX-X PROMO II” RTR + ARR Item-No: / Best.-Nr.: / N° de commande : / Bestnr.: 23 50 00 / 23 50 10...
  • Page 2 All manuals and user guides at all-guides.com MV11721 MV11711 1A -- O-ring 3x1 mm --- 12 1B -- Pin 2,5 x 12,8 mm -- 6 1C -- Pin 4 x 26,6 mm -- 6 MV22873 MV22873 MV22873 MV22873 <1-1> MV22811 MV22831 MV22873 MV22873...
  • Page 3 All manuals and user guides at all-guides.com 3A -- TP Screw 4 x 12 mm -- 6 MV162 3B -- TP Screw 4 x 18 mm -- 2 Step 1 3C -- Cap Screw 3 x 25 mm -- 2 Step 2 MV1321T MV110...
  • Page 4 All manuals and user guides at all-guides.com 5A -- Set Screw w/Glue 5 x 5 mm -- 2 5C -- Ball Bearing 8 x 16 x 5 mm -- 4 5B -- Pin 2,5 x 16,8 mm -- 2 5D -- Cap Screw 4 x 12 mm -- 4 MV107 MV3531 MV134...
  • Page 5 All manuals and user guides at all-guides.com Step 4 Step 7 8A -- E-Ring 3 mm -- 4 8B -- PA Nut/Washer 3 mm -- 2 8C -- Cap Screw 3 x 33 mm -- 2 Step 7 8D -- 4 x 65,5 mm -- 2 9A --TP F/H Screw 4 x 16 mm -- 4 Step 8 9B --TP F/H Screw 3 x 10 mm -- 2...
  • Page 6 All manuals and user guides at all-guides.com MV162 Step 1 10A -- TP F/H Screw 4 x 16 mm -- 2 10B -- TP Screw 4 x 18 mm -- 2 Step 2 MV162U2 MV162 MV162D1 MV162U3 MV110 11A -- TP Screw 3 x 18 mm -- 1 MV110 MV142 12A -- Cap Screw 3 x 25 mm -- 2...
  • Page 7 All manuals and user guides at all-guides.com MV1621 MV1621 MV1621 MV1621 MV1621 Step 10 15A -- TP Screw 3 x 15 mm -- 2 MV162D3T 15B -- TP Screw 4 x 12 mm -- 2 16A --TP Screw 3 x 15 mm -- 2 16B --TP Screw 4 x 25 mm -- 2 Step 13 16C --TP Screw 4 x 20 mm -- 4...
  • Page 8 All manuals and user guides at all-guides.com 17A -- Cap Screw 3 x 25 mm -- 1 17B -- Lock Nut 3 mm -- 1 Step 14 Step 16 MV349R1 MV113 MV3492 -- 5 x 36 mm -- 2 MV349R1 MV3492 12,2 mm MV113...
  • Page 9 All manuals and user guides at all-guides.com MV1505 -- 3 x 43,5 mm -- 2 Step 18 20A -- Screw 3 x 23 mm -- 2 Step 19 20B -- Lock Nut 3 mm -- 4 20C -- Set Screw 4 x 10 mm -- 2 MV1503 MV3461 For LEFT SIDE...
  • Page 10 All manuals and user guides at all-guides.com 22A -- F/H Screw 3 x 25 mm -- 1 22B -- TP F/H Screw 4 x 16 mm -- 4 Step 21 22C -- PA Nut/Washer 3 mm -- 1 Step 9 MV113 MV1621 MV3042T...
  • Page 11 All manuals and user guides at all-guides.com MV306 MV306 MV306 MV126 MV126 MV3041 MV306 3041 24A -- Screw 3 x 10 mm -- 4 MV306 MV306 24B -- Bushing 5 x 8 x 2,5 mm -- 4 Step 24 Step 1 MV309 Step 24 MV309...
  • Page 12 All manuals and user guides at all-guides.com 26A -- TP Screw 3 x 16 mm -- 4 (Not Included) MV3043 Step 23 MV3041 MV3073 MV3043 MV3071 MV3041 MV3071 Step 25 MV3071 MV3073 MV3073 30,4 mm V221524 MV1301 MV113 MV1301 MV113 MV1301 MV1301 V221524...
  • Page 13 All manuals and user guides at all-guides.com MV3074 29A -- Lock Nut 3 mm -- 4 MV3075T 29B -- Washer 8x 12 x 0,8 mm -- 2 MV3074 29C -- Cap Screw 3 x 16 mm -- 2 29D -- Ball Bearing 5 x 8 x 2,5 mm -- 2 Step 27 Step 27 Step 28...
  • Page 14 All manuals and user guides at all-guides.com...
  • Page 15 All manuals and user guides at all-guides.com 32A -- Cap Screw 3 x 6 mm -- 1 Engine 32B -- Washer 5 x 12 x 1 mm -- 1 32C -- Ball Bearing 5 x 8 x 2,5 mm -- 2 32D -- Lock Nut 3 mm -- 4 32E -- Cap Screw 3 x 16 mm -- 4 32F -- E-Ring 7 mm -- 1...
  • Page 16 All manuals and user guides at all-guides.com Step 33 34A -- Cap Screw 5 x 10 mm -- 4 Step 31 Silicone Tube MV3031 Silicone Tube 35A -- F/H Screw 3 x 8 mm -- 2 MV308 35B -- Screw 3 x 10 mm -- 2 MV308 -- 6 x 32 mm -- 2 MV308 Step 34...
  • Page 17 All manuals and user guides at all-guides.com MV12601 MV12601 MV12601 MV12601 36A -- Set Screw 3 x 3 mm -- 2 MV308 MV308 MV308 MV308 37A -- F/H Screw 3 x 8 mm -- 5 MV308 -- 6 x 32 mm -- 5...
  • Page 18 All manuals and user guides at all-guides.com 38A -- TP Screw 3 x 10 mm -- 8 38B -- Screw 2 x 8 mm -- 2 (Not Included) Servo (Not Included) MV3742 MV310 MV3021T MV310 MV310 Switch (Not Included) MV310 Switch (Not Included) MV3741...
  • Page 19 All manuals and user guides at all-guides.com MV3742 MV3741 Step 39 Step 40 MV3742 41A -- TP Screw 3 x 10 mm -- 2 41B -- F/H Screw 3 x 20 mm -- 1 41C -- Screw 3 x 8 mm -- 5 41D -- Screw 3 x 10 mm -- 1 41E -- PA Nut/Washer 3 mm -- 2...
  • Page 20 All manuals and user guides at all-guides.com 42A -- Lock Nut 3 mm -- 1 42B -- Screw 3 x 12 mm -- 1 MV1302 MV12601 MV12601 50 mm 72,4 mm SE0031Y SE002 SE0031Y SE002 5,8 mm 11,8 mm 43A -- Spring -- 1 43B -- Set Screw 3 x 3 mm -- 2 43C -- TP Screw 3 x 12 mm -- 1...
  • Page 21 All manuals and user guides at all-guides.com Included with Servo Step 43 SE002 9,5 mm SE002 36,7 mm 44A -- Set Screw 3 x 3 mm -- 2 High Throttle Full Brake Throttle...
  • Page 22 All manuals and user guides at all-guides.com MV2031Y / MV2032 MV2031Y 46A -- F/H Screw 3 x 8 mm -- 1 MV2031Y Step 46 SE120 MV2031Y (Not Included) (B/N 228680-EQ) 48A -- Set Screw 4 x 4 mm -- 1 SE009 MV376B MV12601...
  • Page 23 All manuals and user guides at all-guides.com Silicone Pressure Tubing Silicone Fuel Pick-Up Tubing 50A -- Lock Nut 2,6 mm -- 4 MV1381 -- 3 x 52 mm -- 2 50B -- Washer 2,6 x 6 mm -- 4 MV1391 -- 3 x 61 mm -- 2 50C -- O-Ring 3 mm -- 8 50D -- Plastic Washer 3 x 6,3 x 1,7 mm -- 4 MV1381 / MV1391...
  • Page 24 All manuals and user guides at all-guides.com Shock Oil After filling with MV1386 shock oil, GENTLY pump shock shaft up and down MV1394T several times MV1384T to eliminate air bubbles. For FRONT and REAR x4 MV1382 Step 51 MV1385 MV1382 MV1381 / MV1391 MV112 For Front MV1383GA...
  • Page 25 All manuals and user guides at all-guides.com Step 52 MV1382 For FRONT 53A -- PA Nut / Washer 3 mm -- 2 53B -- F/H Screw 3 x 20 mm -- 2 Step 52 MV1382 For REAR 54A -- PA Nut/Washer 3 mm -- 2 54B -- F/H Screw 3 x 20 mm -- 2...
  • Page 26 All manuals and user guides at all-guides.com 55A -- TP F/H Screw 3 x 10 mm -- 5 55B -- F/H Screw 3 x 16 mm -- 1 55C -- PA Nut/Washer 3 mm -- 1 MV3001 MV3001 Apply glue Apply glue For FRONT and REAR x4 MV3692...
  • Page 27 All manuals and user guides at all-guides.com 57A -- Wheel Nut 17 mm -- 4 Step 53 Step 56 For FRONT Step 54 Step 56 For REAR...
  • Page 28 All manuals and user guides at all-guides.com SPARE PARTS ERSATZ-TEILE PIECES DE RECHANGE VERVANGONDERDELEN MV3011TA MV1321TA MV1331TA CHASSIS REX-X 1/8 ALLOY FRONT SHOCK TOWER REAR SHOCK TOWER AL- ELOX. ALLOY Item-No.: 223287-EQ Item-No.: 223386-EQ Item-No.: 223365-EQ CHASSIS REX-X 1 :8 ALU ALU DÄMPFERBRÜCKE ALU STOSSDÄMPFERBRÜ- ELOXIERT...
  • Page 29 All manuals and user guides at all-guides.com MV3481 MV134 MV3461 HUB CARRIER FRONT L/R WHEEL HUB FRONT 2PCS HUB REAR L/R 2 PCS 2PCS Item-No.: 223304-EQ Item-No.: 223334-EQ Item-No.: 223305-EQ ACHSSCHEMKELHALTER ALU ACHSSCHENKEL ACHSSCHENKEL HINTEN VORNE LINKS / RECHTS (2) VORNE (2) LINKS / RECHTS (2) Best.-Nr.: 223304-EQ...
  • Page 30 All manuals and user guides at all-guides.com MV162D1 MV162D3TA MV162D2TA SUSPENSION HOLDER 0-3 SUSPENSION PLATE REAR SUSPENSION PLATE FRONT DEGREE ALLOY 3 DEGREE ALLOY 2 DEGREE Item-No.: 223337-EQ Item-No.: 223325-EQ Item-No.: 223329-EQ QUERLENKERHALTER QUERLENKERHALTER QUERLENKERHALTER DIFFERENZIAL SEITE DIFFERENZIAL SEITE KUNSTST.0-3 GRAD VORNE HINTEN ALU VORNE ALU Best.-Nr.: 223337-EQ...
  • Page 31 All manuals and user guides at all-guides.com MV3612 MV3611 MV110 STABILZIER ROD SET STABILIZING MOUNT 2PCS SHOCK STUD 4 PCS 2,5/2,8 mm Item-No.: 223307-EQ Item-No.: 223348-EQ Item-No.: 223306-EQ STOßDÄMPFER- STABILISATOR-SET 2,5 mm STABILISATORBEFESTIGUN ABSTANDSHALTER VORNE VORNE / HINTEN (2) G KUNSTSTOFF (2) / HINTEN (4) Best.-Nr.: 223307-EQ Best.-Nr.: 223348-EQ...
  • Page 32 All manuals and user guides at all-guides.com MV139TAY MV138TGA MV139TGA SHOCK ABSORBER REAR SHOCK ABSORBER FRONT SHOCK ABSORBER REAR 125 mm W/ DUSTPROOF SILVER SILVER Item-No.: 223314-EQ Item-No.: 232871-EQ Item-No.: 232872-EQ 1:8 ALU 1:8 ALU 1:8 ALU ÖLDRUCKSTOSSDÄMPFER ÖLDRUCKSTOSSDÄMPFER ÖLDRUCKSTOSSDÄMPFER HINTEN 125 mm MIT VORNE SILBER HINTEN SILBER...
  • Page 33 All manuals and user guides at all-guides.com MV1383W MV1383BA MV1383YR20 1/8 SHOCK ABSORBER SHOCK SPRING SHOCK ABSORBER SPRING SPRING 60 MM X 1,55 mm FRONT (L=58,5, R=2) (60x1,75 mm BLACK) WHITE Item-No.: 227844-EQ Item-No.: 227845-EQ Item-No.: 229056-EQ 1:8 STOSSDÄMPFERFEDER 1:8 STOSSDÄMPFERFEDER 1:8 STOSSDÄMPFERFEDER 60 x 1,55 mm WEISS (2) 60 x 1,75 mm SCHWARZ (2)
  • Page 34 All manuals and user guides at all-guides.com MV3041 MV3043 MV126 BRAKE DISC ORIENTATION CENTER DIFF. MOUNT 2PCS BRAKE LEVEL HEAD 2PCS Item-No.: 223366-EQ Item-No.: 223363-EQ Item-No.: 223384-EQ HALTERUNG BREMSSCHEIBEN BREMSEXCENTER (1) MITTELDIFFERENZIAL (2) ARRETIERUNG REX-X (2) Best.-Nr.: 223366-EQ Best.-Nr.: 223363-EQ Best.-Nr.: 223384-EQ SUPPORT POUT DISPOSITIF D'ARRET POUR...
  • Page 35 All manuals and user guides at all-guides.com MV227 MV22811 MV22821 F/R DIFF. GEAR ASSEMBLY PINION GEAR 43T (STEEL) PINION GEAR 13T (STEEL) Item-No.: 223308-EQ Item-No.: 232736-EQ Item-No.: 232737-EQ DIFFERENTIAL MONTIERT KEGELRAD STAHL KEGELRAD KLEIN MIT KEGELRAD VORNE / 43 ZÄHNE 13 ZÄHNE HINTEN Best.-Nr.: 223308-EQ...
  • Page 36 All manuals and user guides at all-guides.com MV1171 MV1173 MV11721 SWING SHAFT JOINT BRAKE JOINT 1/8 21 mm JOINT 8 mm L=21 mm 2PCS 36 x 6 mm Item-No.: 223297-EQ Item-No.: 223299-EQ Item-No.: 232876-EQ MITNEHMER MITNEHMER ANTRIEBSWELLEN BREMSSCHEIBE 21 mm ZENTRALWELLEN VORNE / MITNEHMER 36 x 6 mm SECHSKANT...
  • Page 37 All manuals and user guides at all-guides.com SEM1170Y SEM1170BA BU061003 DUSTPROOF FOR JOINT DUSTPROOF FOR JOINT BUSHING 6x10x3 (1PCS) (4PCS) YELLOW (4PCS) BLACK Item-No.: 229090-EQ Item-No.: 229088-EQ Item-No.: 215775-EQ MANSCHETTEN FÜR MANSCHETTEN FÜR KUGELLAGER 10 x 6 x 3 RADACHSEN/KARDANWELL RADACHSEN/KARDANWELL EN GELB (4) EN SCHWARZ (4)
  • Page 38 All manuals and user guides at all-guides.com CB198 CB199 MV1241 CLUTCH 3-SHOES W/ 3- CLUTCH SHOE W/ SPRING CLUTCH SHOE SPRING SPRING (1,0 mm) Item-No.: 223442-EQ Item-No.: 223452-EQ Item-No.: 229050-EQ 3-BACKEN-KUPPLUNG FEDER FÜR SPORT 3-BACKEN-KUPPLUNG SPORT MIT FEDER KUPPLUNG RACING MIT 3 FEDERN Best.-Nr.: 223442-EQ Best.-Nr.: 223452-EQ Best.-Nr.: 229050-EQ...
  • Page 39 All manuals and user guides at all-guides.com MVC17T3 MVC18T3 MV3074 CLUTCH BELL 17 T CLUTCH BELL 18 T SERVO SAVER BAG Item-No.: 226117-EQ Item-No.: 226118-EQ Item-No.: 223324-EQ KUPPLUNGSGLOCKE KUPPLUNGSGLOCKE SERVO-SAVER SCHRAUBEN-LAGER-SET 17 ZÄHNE 18 ZÄHNE Best.-Nr.: 226117-EQ Best.-Nr.: 226118-EQ Best.-Nr.: 223324-EQ CLOCHE D'EMBRAYAGE CLOCHE D'EMBRAYAGE SET DE VIS POUR SERVO...
  • Page 40 All manuals and user guides at all-guides.com MV1502 MV1501 MV1503 UP ARM STUD FRONT L=30 HUB STUD L=37,5 mm 4PCS HUB STUD REAR L=43,5 mm Item-No.: 223372-EQ Item-No.: 223356-EQ Item-No.: 223371-EQ SCHAFTSCHRAUBEN MIT SCHAFTSCHRAUBEN SCHAFTSCHRAUBEN MUTTER FÜR QUERLENKER VORNE / QUERLENKER HINTEN / ACHSSCHENKEL L = 37,5 OBEN / INNEN L = 30 mm...
  • Page 41 All manuals and user guides at all-guides.com V221514 V211301 V211302 COOPER BAL 7 x 3 mm BALL END FOR 7 mm BALLS ALLOY BALLS 7 x 3 4PCS 4PCS Item-No.: 223367-EQ Item-No.: 223404-EQ Item-No.: 223323-EQ ALU KRAGENKUGEL KUGELPFANNEN FÜR ALU-KUGELN 7 x 3 mm (4) LENKUNG 7 mm KUGELN 7 x 3 mm (4) Best.-Nr.: 223367-EQ...
  • Page 42 All manuals and user guides at all-guides.com SEM2032 SE120 MV3741 AIR FILTER SPONGE FOR AIR CLENER OIL 2 OZ RECIVER BOX ROUND 1/8 Item-No.: 223275-EQ Item-No.: 228680-EQ Item-No.: 223313-EQ SCHAUMSTOFFÜBERZUG LUFTFILTERÖL EMPFÄNGERBOX FÜR LUFTFILTER 1:8 "GREENLUBE" Best.-Nr.: 223275-EQ Best.-Nr.: 228680-EQ Best.-Nr.: 223313-EQ REVETEMENT EN MOUSSE HUILE POUR FILTRE A AIR...
  • Page 43 All manuals and user guides at all-guides.com SE009 MV2051G MV376B MAINFOLD REAR ADAPTER MUFFLER 3,5 ccm BLUE SILICONE TUBE FOR 3,5 ccm ENGINE PAINT 1/8 Item-No.: 223407-EQ Item-No.: 223296-EQ Item-No.: 223282-EQ SILICON-VERBINDER KRÜMMER FÜR RESONANZROHR 3,5 ccm 3,5 ccm KRÜMMER- HECKAUSLASS KOMPLETT BLAU 1:8 RESOROHR...
  • Page 44 All manuals and user guides at all-guides.com DEL20080 200802X01 MV142 BODY REX-X BUGGY DECAL SHEET REX-X BODY SUPPORT-SET FOR “PROMO” WITH DECAL W/PAINT MASK BUGGY SHEET Item-No.: 223414-EQ Item-No.: 232870-EQ Item-No.: 223347-EQ DEKORBOGEN REX-X MIT 1:8 KAROSSERIE REX-X KAROSSERIEHALTER - SET SCHEIBENABKLEBER BUGGY PROMO mit Dekor REX-X...
  • Page 45 All manuals and user guides at all-guides.com MV106 MV36921SBA1 1:8 WHEEL BLACK GLUED WHEEL NUT 4 PCS (blue) Item-No.: 231362-EQ Item-No.: 234920-EQ ALU RADMUTTERN 17 mm 1:8 KOMPLETTRAD BLAU (4) SCHWARZ (2) VERKLEBT Best.-Nr.: 231362-EQ Best.-Nr.: 234920-EQ ECROUS DE ROUE ALU 1:8 NOIRE AVEC PNEU (2) 17 mm (bleu) (4) N°...
  • Page 46 All manuals and user guides at all-guides.com OPTION PARTS TUNING-TEILE PIÈCES TUNING TUNING-ONDERDELEN SEM3011BA SEM1325B SEM1335B Zur Zeit keine Abbildung vorhanden CHASSIS (3 mm 7075) FRONT SHOCK TOWER REAR SHOCK TOWER BLUE BLACK BLUE 5 mm 7075 X-TER 5 mm 7075 X-TER Item-No.: 228078-EQ Item-No.: 229092-EQ Item-No.: 229093-EQ...
  • Page 47 All manuals and user guides at all-guides.com SEM3461B SEM349F2B ALUMINUM UPPER INNER DAMPER STAY FRONT 4 mm HUB REAR (ALU) BLUE ARM BLUE REX-X CARBON Item-No.: 229099-EQ Item-No.: 229106-EQ Item-No.: 223274-EQ ALU ACHSSCHENKEL ALU QUERLENKER CARBON HINTEN BLAU (7075) CNC AUSSEN/OBEN BLAU (2) STOSSDÄMPFERBRÜCKE GEFRÄST...
  • Page 48 All manuals and user guides at all-guides.com SEM162D2B SEM162D3B SEM3492 SUSPENSION PLATE FRONT SUSPENSION PLATE REAR ROD M5XL=30 mm 64 TITA- 7075 (BLUE) 7075 (BLUE) NIUM Item-No.: 229096-EQ Item-No.: 229097-EQ Item-No.: 229103-EQ ALU QUERLENKERHALTER ALU QUERLENKERHALTER TITAN SPANNSCHRAUBE VORDERACHSE BLAU HINTERACHSE BLAU (7075) LINKS / RECHTS M5X36 mm (7075) CNC GEFRÄST...
  • Page 49 All manuals and user guides at all-guides.com MV0451 MV31217 MV3131 2 SPEED SPUR GEAR 45T 2 SPEED CLUTCH HOUSING CLUTCH BELL W/O PINION <FOR REX> (12T&17T) W/BELL BEARING GEAR Item-No.: 227736-EQ Item-No.: 230470-EQ Item-No.: 229076-EQ HAUPTZAHNRAD 45 ZÄHNE KUPPLUNGSGLOCKE 12 / 17 2-GANG- (2 GANG) FÜR REX-X BUG- ZÄHNE 2-GANG-GETRIEBE...
  • Page 50 All manuals and user guides at all-guides.com ACCESSORIES ZUBEHÖR ACCESSOIRES TOEBEHOREN OEM-700118 OEM-700119 OEM-700120 SILICON SHOCK OIL # 400 SILICON SHOCK OIL # 500 SILICON SHOCK OIL # 600 Item-No.: 232634-EQ Item-No.: 232635-EQ Item-No.: 232636-EQ SILIKON-STOßDÄMPFER-ÖL SILIKON-STOßDÄMPFER-ÖL SILIKON-STOßDÄMPFER-ÖL VISKO 400 VISKO 500 VISKO 600 Best.-Nr.: 232634-EQ...
  • Page 51 All manuals and user guides at all-guides.com SE93010G SE095 SET007 MICRO CORNER MARKER WRENCH (17 mm) CLUTCH TOOLS Item-No.: 232717-EQ Item-No.: 232749-EQ Item-No.: 232753-EQ RACING DISK GELB STECKSCHLÜSSEL FÜR 17 WERKZEUG KUPPLUNGS- Ø 150 mm (5) mm RADMUTTERN MONTAGE Best.-Nr.: 232717-EQ Best.-Nr.: 232749-EQ Best.-Nr.: 232753-EQ DISQUES RACING JAUNES...
  • Page 52 All manuals and user guides at all-guides.com These operating instructions are published by Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau/Germany. www.conrad.com The operating instructions reflect the current technical specifications at time of print. We reserve the right to change the technical or physical specifications ©...
  • Page 53 All manuals and user guides at all-guides.com Schnell – einfach – zuverlässig Ersatzteilbestellung bei Conrad Electronic Für viele Artikel können wir schnell und zuverlässig Ersatzteile liefern. Unser Lager hält im Bedarfsfall mehrere Tausend Teile für Sie bereit. Bestellung per Telefon: 0180 - 531 21 11* Bestellung per Telefax: 0180 - 531 21 10* Bestellung per Mail: sales@conrad.de...
