1. Prepare the Site
CAUTION: Risk of property damage. Select a cutting tool
appropriate for the deck/rim surface type. Refer to the
surface manufacturer's instructions for proper cutting
procedures.
NOTE: To simplify future servicing, install an access panel to reach
the plumbing.

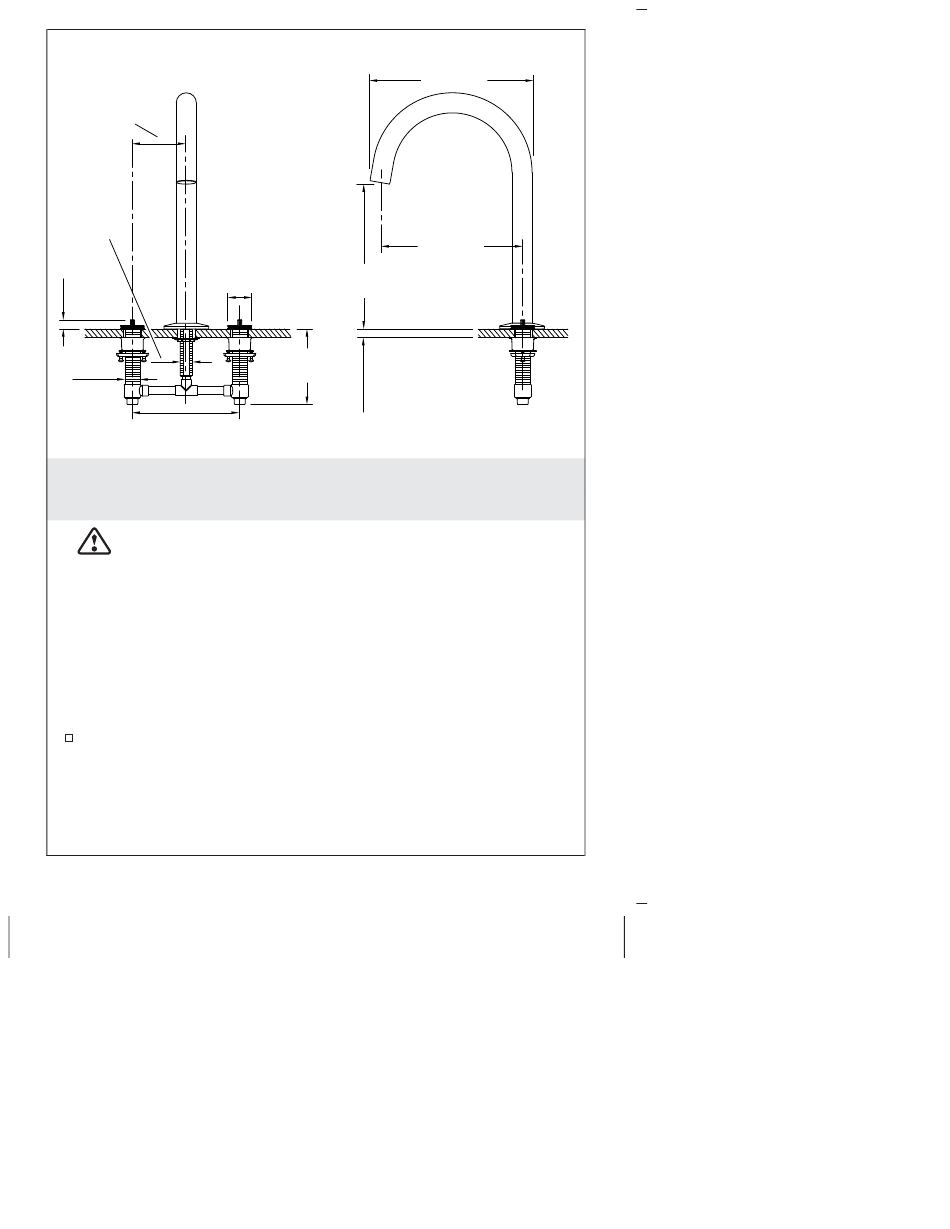

NOTICE: In standard installations, locate the valve bodies 4" (102
mm) from the spout center, as shown in the diagram. The valve
bodies may be installed anywhere on the deck. Adjust the
dimensions as needed.
For a finished bath deck/rim less than 5/8" (16 mm) thick: Install
wood reinforcement to the underside of the deck/rim. The
combined thickness of the reinforcing material and the deck/rim
must not exceed 3" (76 mm).
