INSTALLATION INSTRUCTION - STEP 2
There are two different installation options for the hand dryer.
Option 1 - Semi- Permanent Installation - Option 1 is using the supplied mounting bracket. Simply attach the bracket to
the wall for quick and easy installation (see below).
Option 2 - Permanent Installation (recommended) - Option 2 is using mounting screws to securely attach the hand dryer
to the wall. Proceed as per below for for Permanent installation (see below).
Semi- Permanent Installation (Using Mounting Bracket)
1. During installation, ensure the Power button is turned 'OFF' - Refer to
Description of the manual.
2. Use the supplied Mounting bracket and mount the hand dryer at the ideal
location (refer to Mounting the Unit - Recommended Mounting Heights)
for placement.
3. Run the power cable to the electrical outlet. Ensure that the power cable
is not exposed.
4. On the hand dryer turn the Power button 'ON'. Set the Heat Control button
to the desired heat setting.
Permanent installation
1. Select the ideal mounting location for the hand dryer. Refer refer to
Mounting the Unit - Recommended Mounting Heights - for placement
2. Use the supplied drill hole template sheet and proceed to mark and
drill the holes as indicated.
3. If not done already, remove the hand dryer cover from the base, and
follow Step 1 for connection of the wires (Positive/Negative).
4. During installation, ensure the Power button is turned 'OFF' - refer to
HAND DRYER ON/OFF section. Use wall screws and mount the Hand dryer
5. For Plug and Play Operation, plug into the electrical outlet, ensuring
the power supply cable is not exposed. For Hard Wired Installation,
ensure that the unit has the required power and is connected properly.
6. Test the setting selected by placing your hand underneath the hand dryer.
7. Place the cover back on the Hand Dryer unit and tighten the screws.
All manuals and user guides at all-guides.com
9

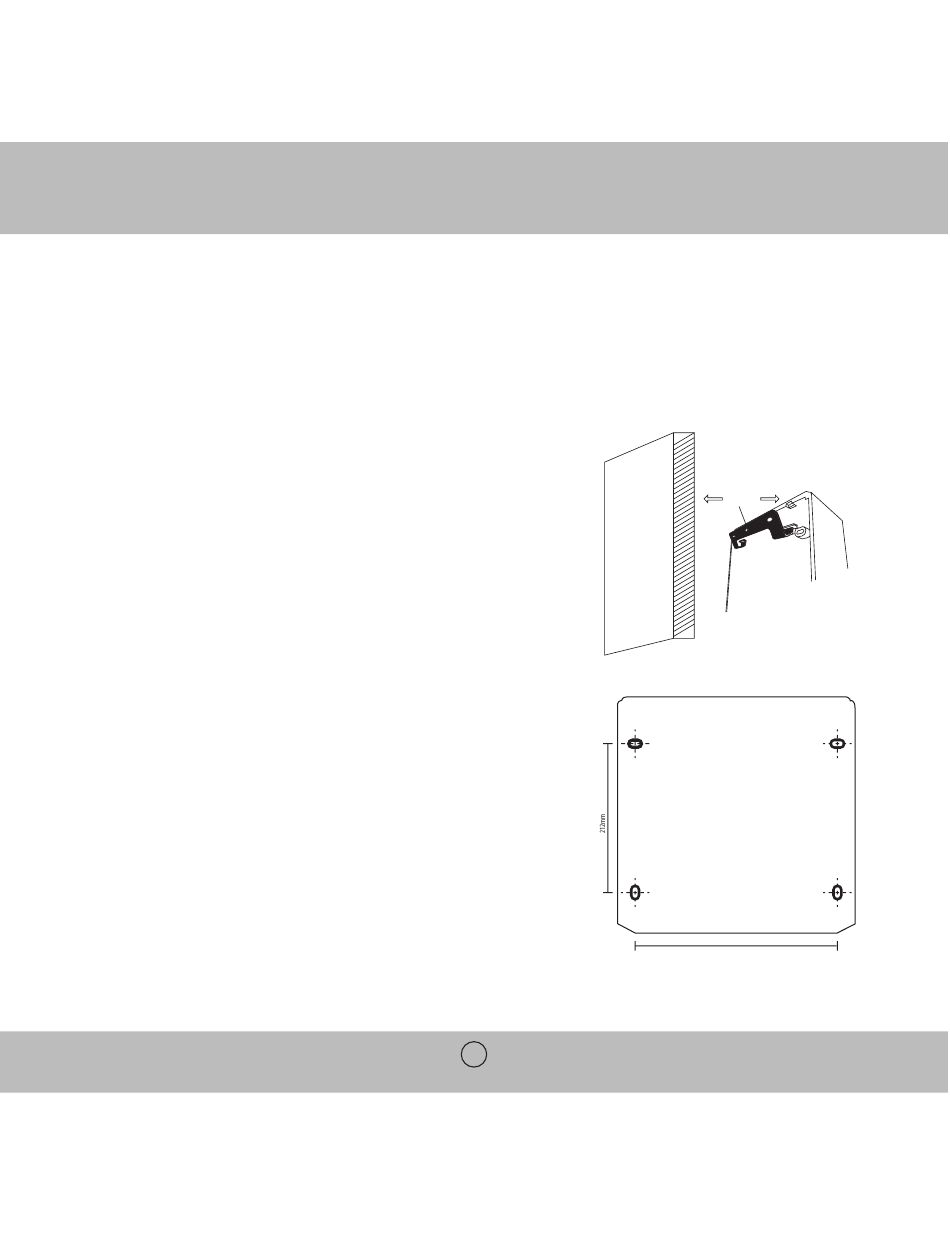

RTHD-421S
wall
stand
(5/16" Drill bit)
(5/16" Drill bit)
(5/16" Drill bit)
(5/16" Drill bit)
155mm
