2/ Connecting the device
- The device must be supplied with 230V, 50Hz.
- Mains connection must be ensured using the 3-wire cable factory fitte to the heater , through a
connecting box. In damp premises, such as bathrooms and kitchens, install the connecting box at least
25cm from the ground..
- The installation must comply with local national regulation. If in doubt, ask the national Atlantic dis-
tributor.
- Ground connection is forbidden.
Do not connect the pilot wire (black) to ground.
- If power cable is damaged or too short, to avoid any danger it must be replaced by a qualified elec-
trician using special tools.
- If a heater pilots or is piloted by a 30mA differential (e.g. bathroom), the pilot wire supply must be pro-
tected on this differential.
3) Programming
The device can be controlled remotely if its pilot wire is connected to a device fitted with a program-
mer, a programming unit or an energy management unit.
Chart indicating the orders the device can receive over
Mode
COMFORT
achieved
Ref/neutral
oscilloscope
Measurement
between the
0 Volt
control cable
and neutral
All manuals and user guides at all-guides.com

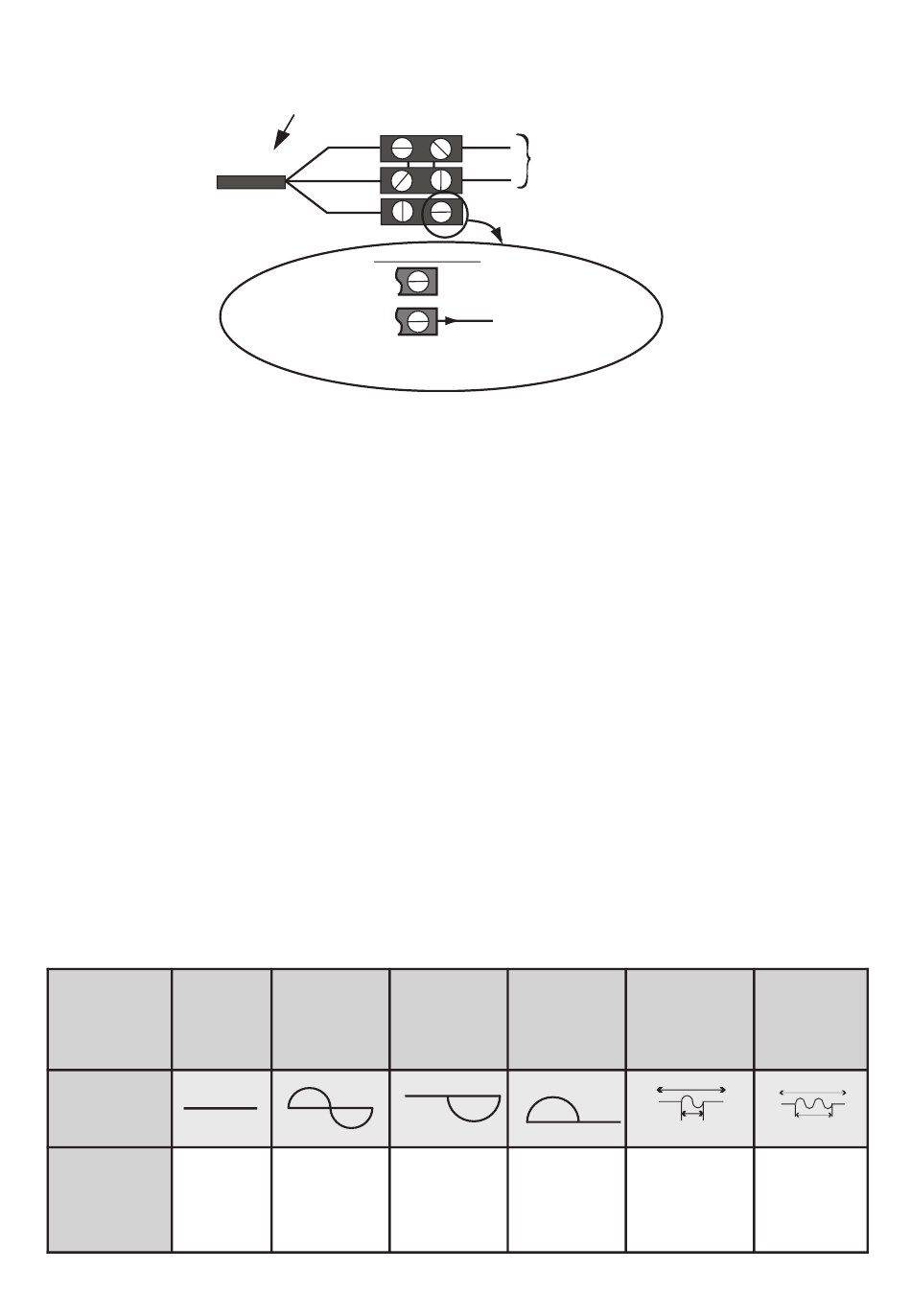

Panel heater cable
Live=brown
Neutral=blue
Pilot wire=Black
Two possible cases
1st case: only one heater
2nd case: multiple heaters
its pilot wire
(to be measured between the pilot wire and the neutral).
ECO
STANDBY
-115 Volts
230 Volts
LIVE
Electricity
grid
NEUTRAL
The pilot wire end is insulated
and not further connected
The pilot wire of all heaters in a
control group, up to a maximum
of 20 units with any one them used
as the Master, are connected
2
by a 1.0mm
220-240V insulated cable
STOP HEA-
TING
LOAD SHED-
DING
+115 Volts
negative
positive
14
COMFORT
COMFORT
-1°C
-2°C
5'
5'
3''
7''
230 Volts
230 volts
for 3 sec
for 7 sec
