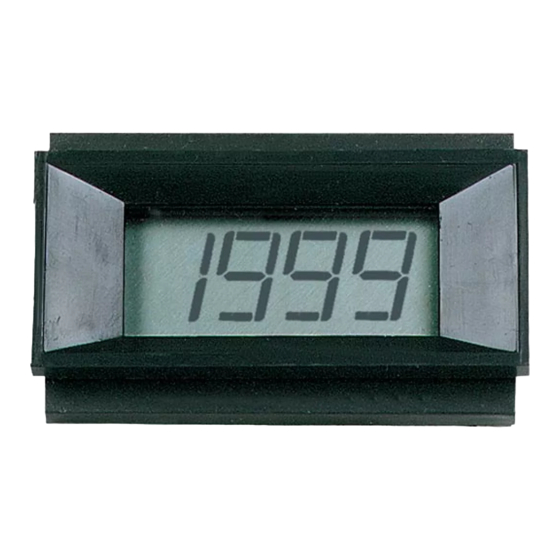

Velleman PMLCD Mode D'emploi

! ! " #
&$ ' &
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
" ( ) *
Thank you for buying our product! Please read the manual thoroughly before bringing this device into service.
If the device was damaged in transit, don't install or use it and contact your dealer.
, !
• 200mV full scale input sensitivity
• Decimal point selectable
• 14mm (0.56") figure height
• Automatic polarity indication
• Guaranteed zero reading for 0V input
• High input impedance (> 100Mohm)
$$ !
Voltmeter, thermometer, PH meter, dB meter, Watt meter, current meter, capacitance meter, Lux meter, LCR meter,
other industrial & domestic uses
- .$ " !
Maximum input
Maximum display
Indication method
Measurement method
Over range indication
Reading rate time
Input impedance
Accuracy
Power dissipation
Decimal point
Supply voltage
Size
/$
If needed, add proper voltage dividers (not included) and decimal point wire jumper:
(RA and RB are 1/2 W 0.5% metal film resistors)
PMLCD PMLCD/L PMLED PMLED/5
$ %
" & ( # ! $
+ ! !$ !
199.9mVDC
1999 counts (3 1/2 digits) with automatic polarity indication
( ): LED display;
Dual Slope integration A/D converter system
"1" shown in the display
2 3 readings per sec
>10MA
+/ 0.5% (23° +/ 5°C, <80% RH)
50 60mA DC
Selectable with wire jumper
: +5VDC; others: +9VDC
68 x 44mm
# !
( ): LCD display
1 VELLEMAN
