Percentage of
heating time *
Temperature adjustment buttons
* The thermostat displays the percentage of heating time required to
maintain the desired temperature. For example,
heating is activated 40 percent of the time.
Applications
The RLV3100 thermostat can be used to control an electric heating
system such as an electric baseboard heater, a radiant ceiling, a
radiant floor, a convector, etc.
The thermostat cannot be used with the following:
• a resistive load under 2 A
• a resistive load over 12.5 A
• systems driven by a contactor or a relay (inductive load)
• fan-forced heating systems
• central heating systems
Supplied Parts
• One (1) thermostat
• Two (2) 6-32 mounting screws
• Two (2) solderless connectors

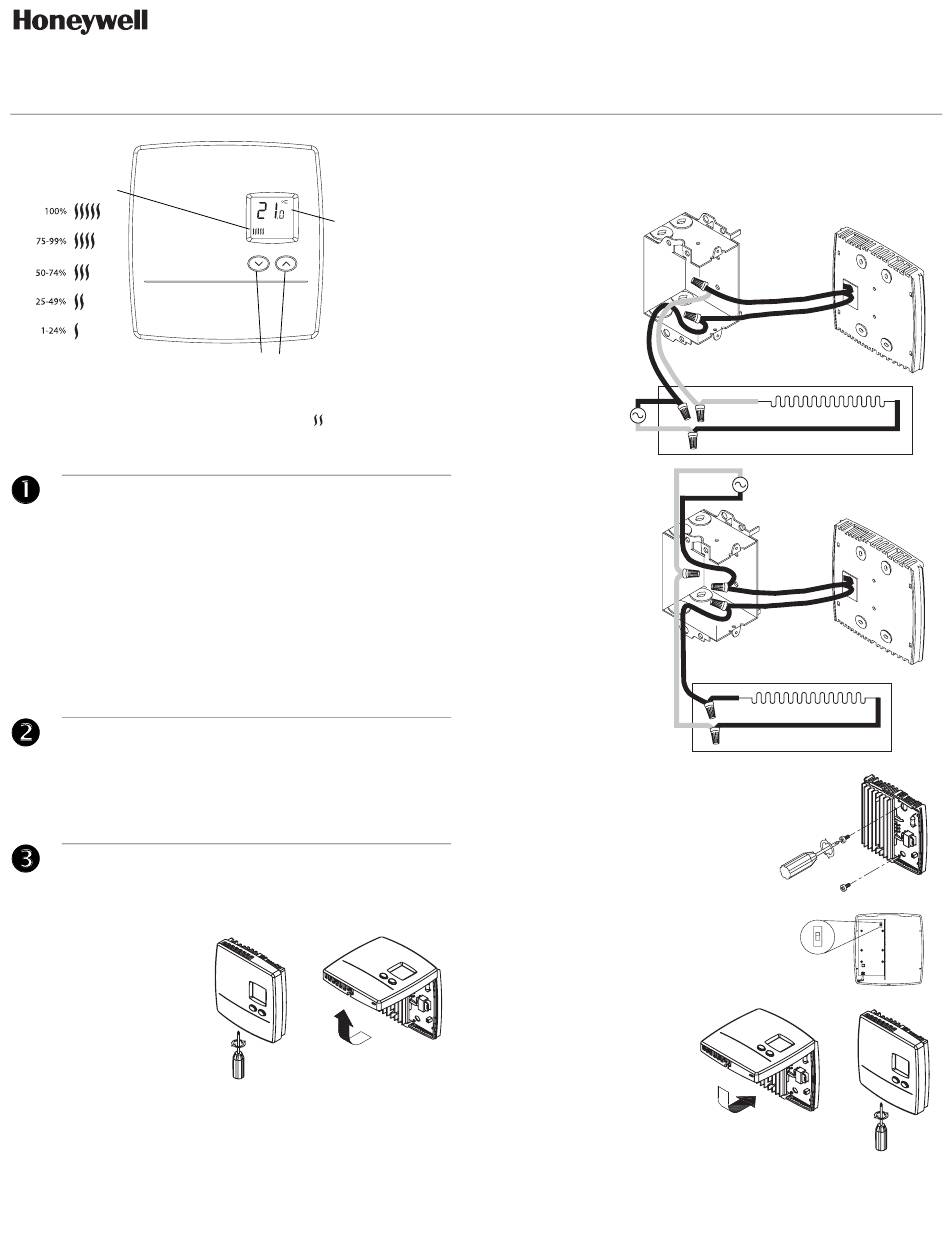

Installation Procedure
TURN OFF POWER OF THE HEATING SYSTEM AT THE MAIN
POWER PANEL TO AVOID ELECTRIC SHOCK.
Loosen the screw
underneath the thermostat
and separate the front plate
from the base plate.
NOTE: The screw cannot be
completely removed.
Connect the thermostat wires to the power and to the load using
solderless connectors for copper wires. The thermostat wires are not
polarized; meaning either wire can be connected to the load or to the
power supply.
RLV3100
NOTE: All cables and connections must comply with local electrical
codes. This thermostat has tinned copper wires for line and load
connections. Special CO/ALR solderless connectors must be used if
these wires will be connected to aluminium conductors.
Temperature
display
is displayed when
1.
2.
Mount the back plate to the electrical
box using the provided screws. Insert
the screws through the left or right pair
of mounting holes of the back plate.
3.
Set the switch on the back of the
front plate to °C or °F to select
the temperature display format.
Re-install the front plate of
the thermostat on the base
plate and secure it in place
with the screw underneath
the thermostat.
NOTE: If there is a protective film or sticker on the display, peel it off.

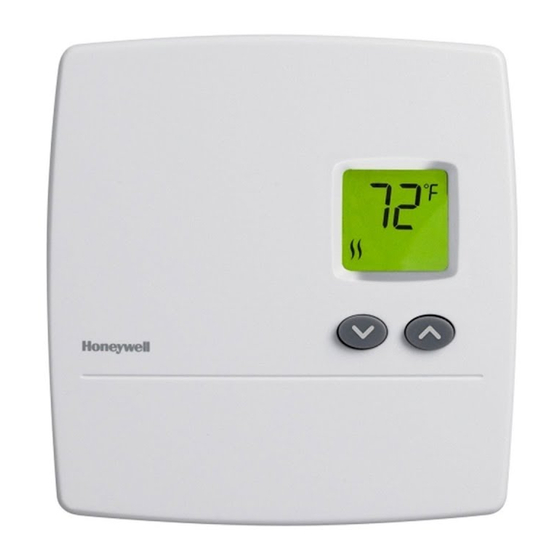

Digital Non-programmable Thermostat
2-wire Installation
4-wire Installation
RLV3100
User Guide
69-1917EF 7/24/06 1/2
