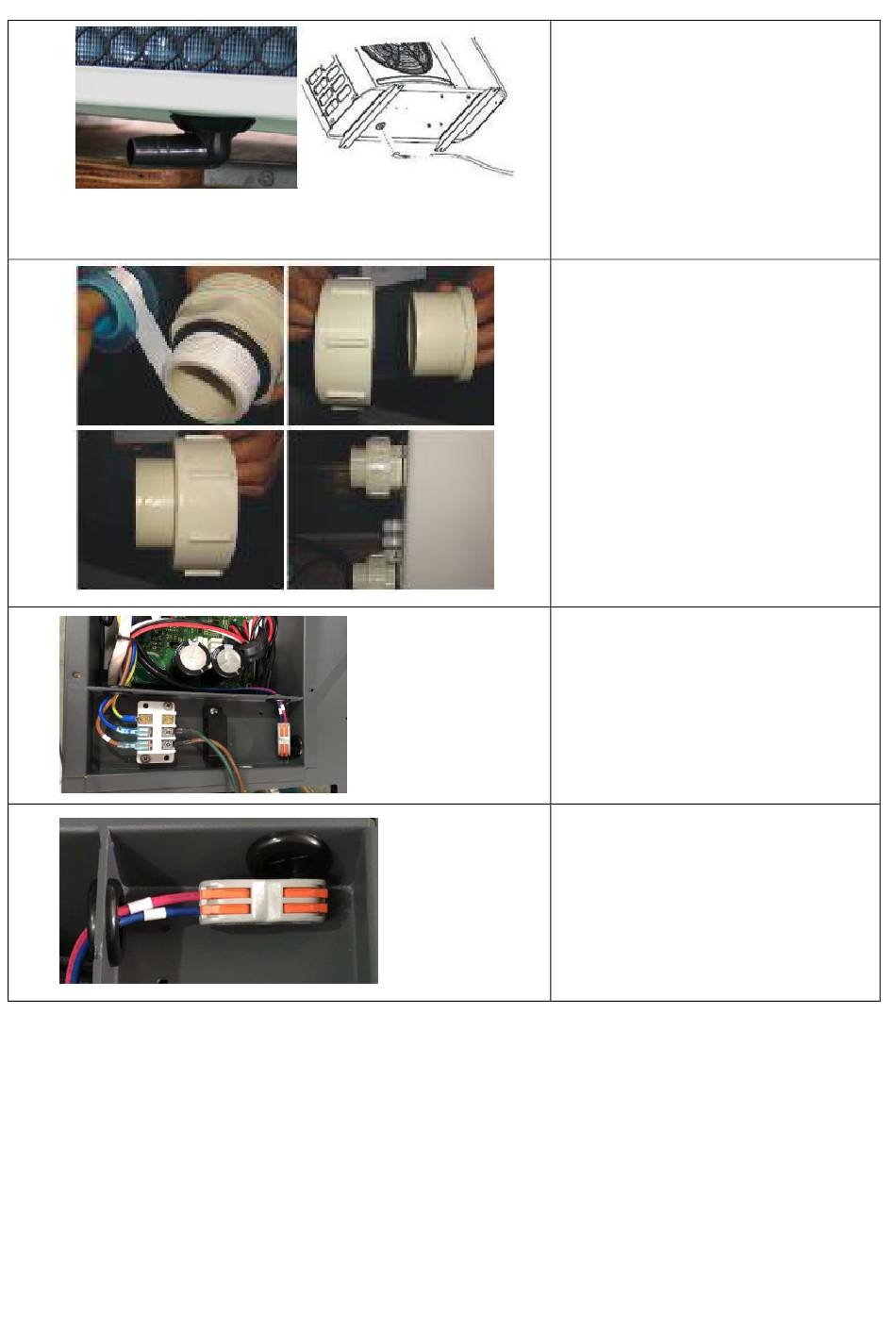

Draining jet
1. Install the draining jet under the
bottom panel
2. Connect with a water pipe to drain out
the water.
Note: Lift the heat pump to install the jet.
Never overturn the heat pump, it could
damage the compressor.
Water Inlet & outlet junction
1. Use the pipe tape to connect the
water Inlet & outlet junction onto the
heat pump
2. Install the two joints like the picture
shows
3. Screw them onto the water Inlet &
outlet junction
Mains Cable wiring
1. Open the cover of the electric box
inside the machine
2. Connect the cables in the correct
terminal according to electric diagram.
Filtration pump wiring (Dry contact)
1. Open the cover of the electric box
inside the machine
2. Connect the cables in the correct
terminal according to electric diagram.
