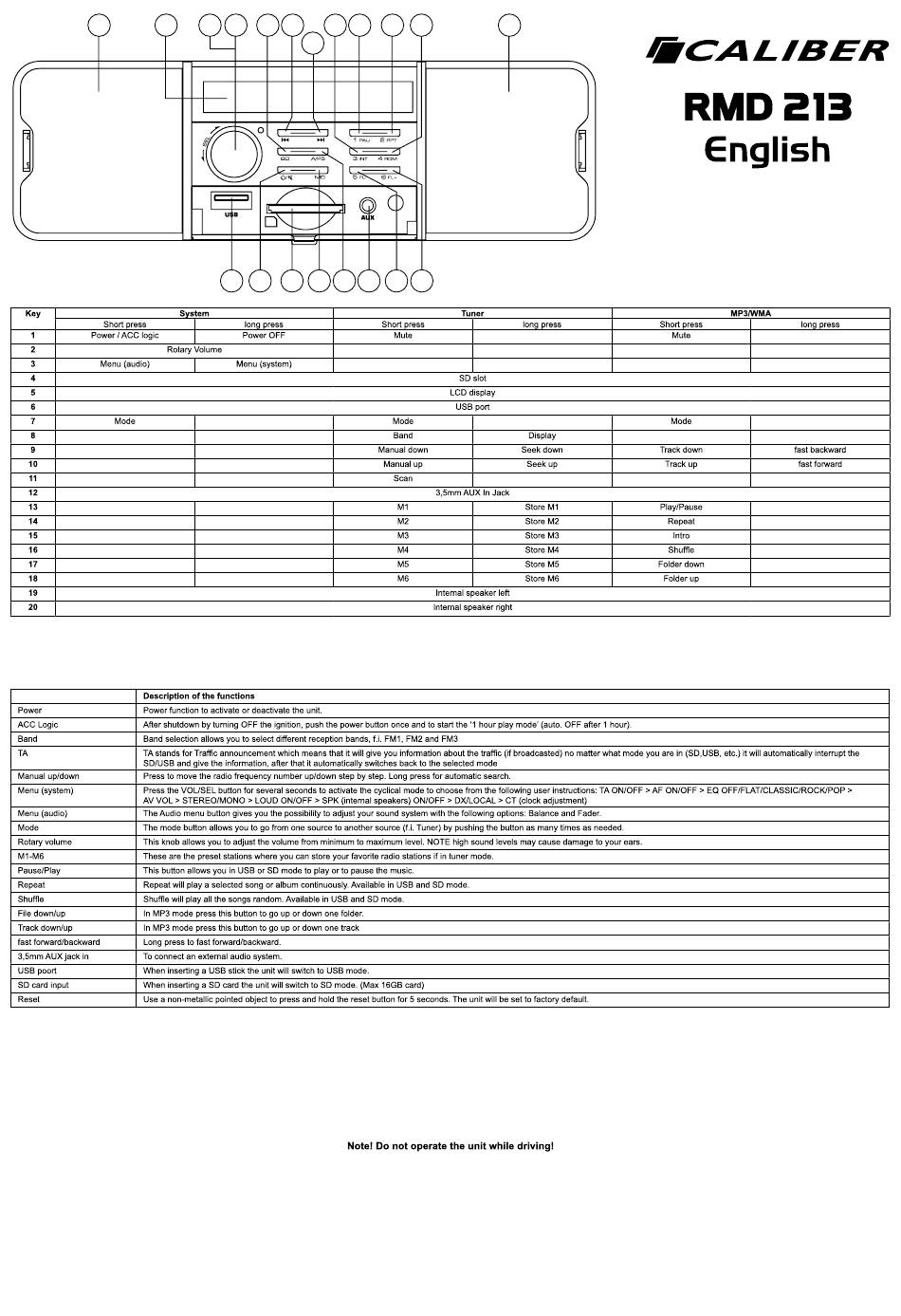

Caliber RMD 213 Mode D'emploi page 8

19 5
Key System
Short press
Power / ACC logic
1
Rotary Volume
2
3 Menu (audio)
4
5
6
7 Mode
8
9
10
11
12
13
14
15
16
17
18
19
20
Description of the functions
Power Power function to activate or deactivate the unit.
After shutdown by turning OFF the ignition, push the power button once and to start the '1 hour play mode' (auto. OFF after 1 hour).
ACC Logic
Band selection allows you to select different reception bands, f.i. FM1, FM2 and FM3
Band
TA stands for Traffic announcement which means that it will give you information about the traffic (if broadcasted) no matter what mode you are in (SD,USB, etc.) it will automatically interrupt the
TA
SD/USB and give the information, after that it automatically switches back to the selected mode
Manual up/down Press to move the radio frequency number up/down step by step. Long press for automatic search.
Press the VOL/SEL button for several seconds to activate the cyclical mode to choose from the following user instructions: TA ON/OFF > AF ON/OFF > EQ OFF/FLAT/CLASSIC/ROCK/POP >
Menu (system)
AV VOL > STEREO/MONO > LOUD ON/OFF > SPK (internal speakers) ON/OFF > DX/LOCAL > CT (clock adjustment)
The Audio menu button gives you the possibility to adjust your sound system with the following options: Balance and Fader.
Menu (audio)
The mode button allows you to go from one source to another source (f.i. Tuner) by pushing the button as many times as needed.
Mode
Rotary volume This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears.
These are the preset stations where you can store your favorite radio stations if in tuner mode.
M1-M6
Pause/Play This button allows you in USB or SD mode to play or to pause the music.
Repeat Repeat will play a selected song or album continuously. Available in USB and SD mode.
Shuffle Shuffle will play all the songs random. Available in USB and SD mode.
File down/up In MP3 mode press this button to go up or down one folder.
Track down/up In MP3 mode press this button to go up or down one track
fast forward/backward Long press to fast forward/backward.
3,5mm AUX jack in To connect an external audio system.
USB poort When inserting a USB stick the unit will switch to USB mode.
SD card input When inserting a SD card the unit will switch to SD mode. (Max 16GB card)
Reset Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default.
3 2 8 9 15 13
10
6 1 4 7 11 12 17 18
long press
Power OFF
Menu (system)
14 16 20
Tuner
Short press
long press
Mute
SD slot
LCD display
USB port
Mode
Display
Band
Manual down Seek down
Seek up
Manual up
Scan
3,5mm AUX In Jack
Store M1
M1
Store M2
M2
Store M3
M3
Store M4
M4
Store M5
M5
Store M6
M6
Internal speaker left
Internal speaker right
MP3/WMA
Short press
long press
Mute
Mode
Track down fast backward
fast forward
Track up
Play/Pause
Repeat
Intro
Shuffle
Folder down
Folder up
