WIRING CONNECTION

8
WIRING CONNECTION

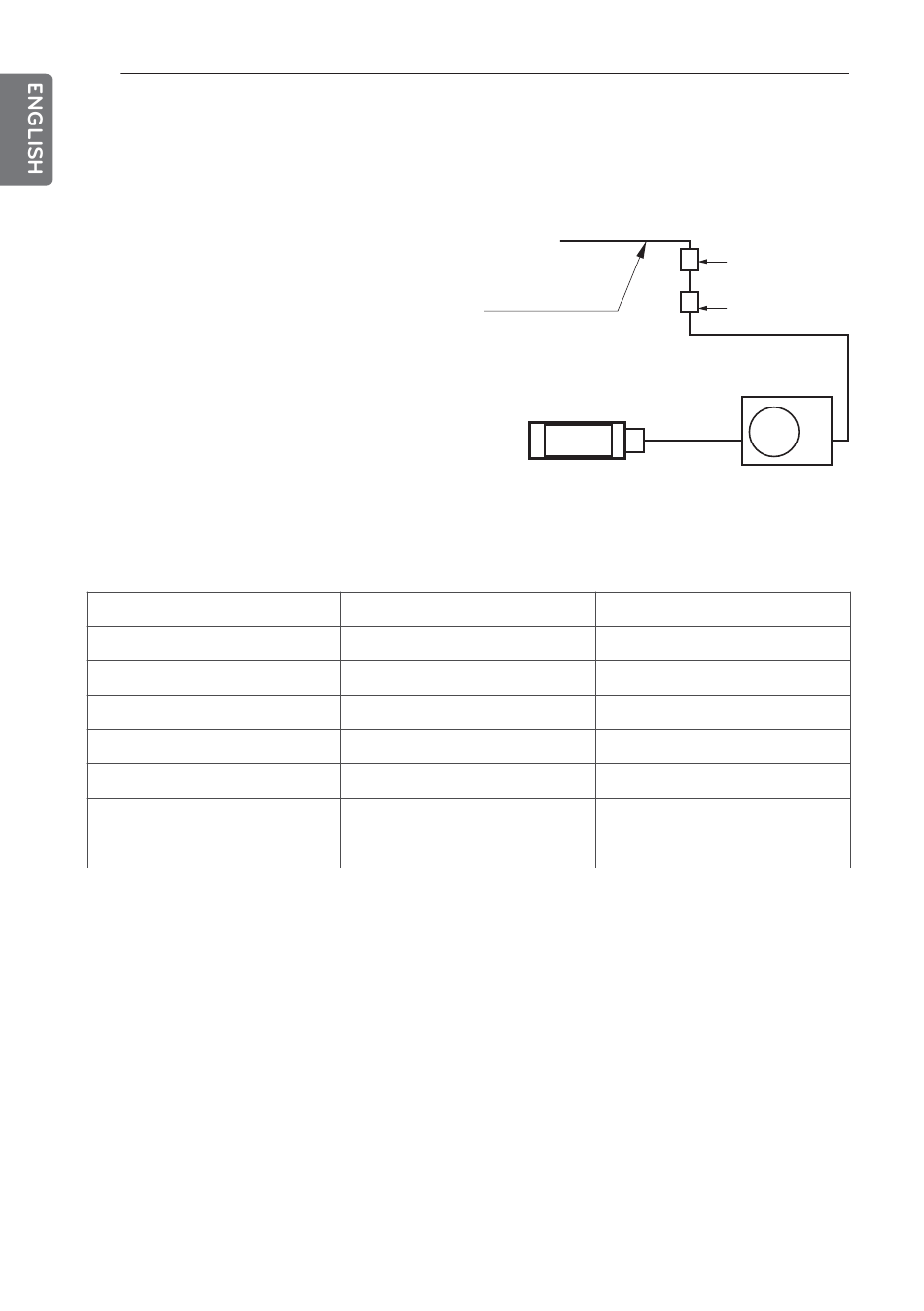

Electrical Wiring

Perform the electrical wiring work according
to the electrical wiring connection.
- All wiring must comply with local require-
ments.
- Select a power source that is capable of sup-
plying the current required by the air condi-
tioner.
- Use a recognized ELCB(Electric Leakage
Circuit Breaker) between the power source
and the unit. A disconnection device to ade-
quately disconnect all supply lines must be
fitted.
- Model of circuit breaker recommended by
authorized personnel only
Model
ATUW18GPLS1
ABUW18GM1S1
ATUW48LMLS1
ATUW54LMLS1
ABUW48LM3S1
ABUW54LM3S1
APUW48LT3S1
Main
power source
Indoor
Phase(Ø)
1
1
3
3
3
3
3
ELCB
Switch box
Outdoor
ELCB
15A
15A
20A
20A
20A
20A
20A
