Checking the Chain Brake

Service Interval: Before each use or daily
After each battery drain cycle
1. Place the chain saw on a flat surface and
remove the battery pack; refer to
Battery Pack (page
2. Engage the chain brake by moving the chain
brake forward to the

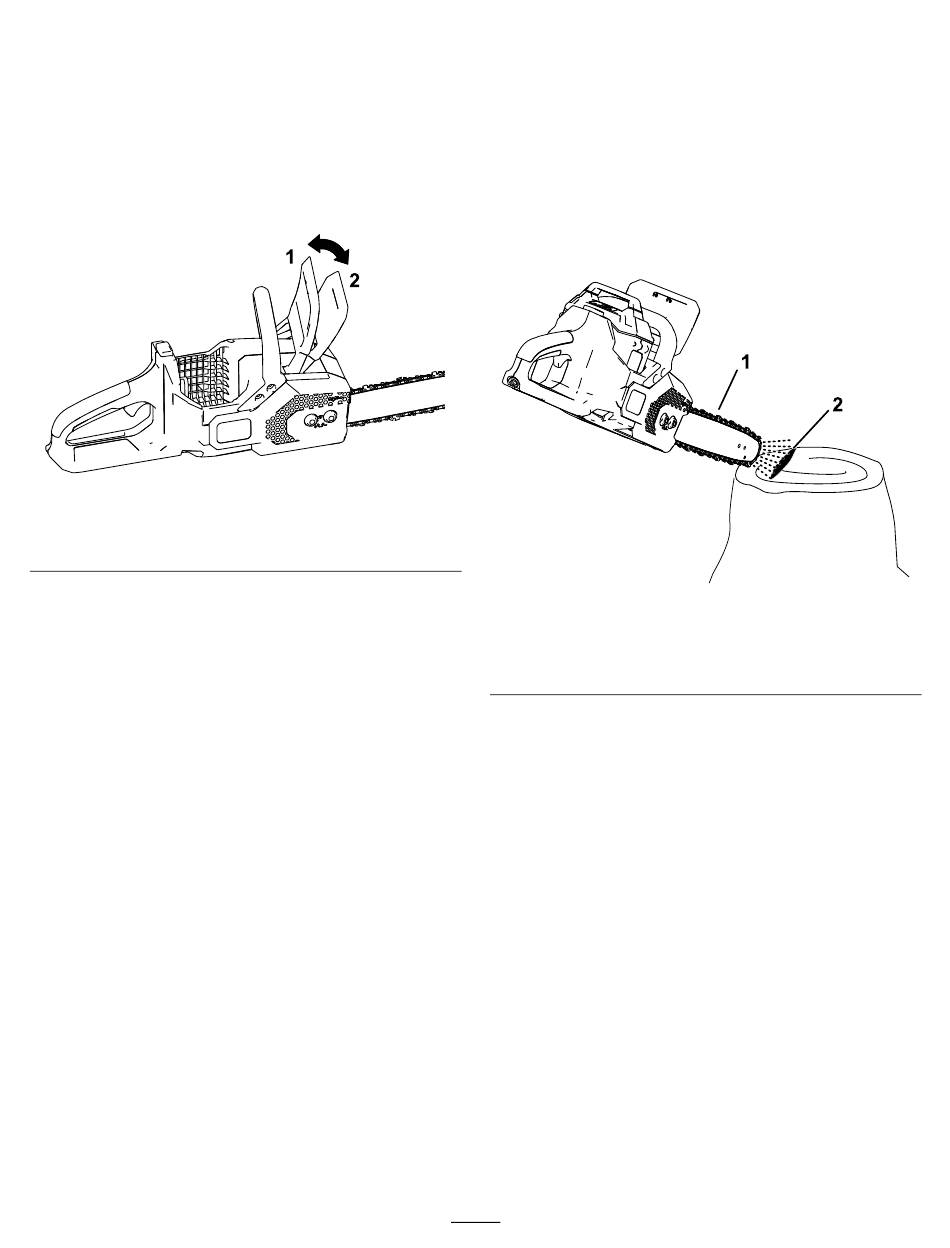

Figure 27
1. Chain brake (O
PERATING
position)
3. Grip the chain with a gloved hand and attempt
to pull it around the guide bar; the chain should
not move around the guide bar. If it does, take
the chain saw to an Authorized Service Dealer
for repair.
4. Disengage the chain brake by moving the
chain brake rearward to the O
(Figure 27).
5. Grip the chain with a gloved hand and attempt
to pull it around the guide bar; the chain should
move around the guide bar. If it does not, take
the chain saw to an Authorized Service Dealer
for repair.
Removing the
17).
position (Figure
STOP
2. Chain brake (
STOP
position)
position
PERATING
Checking the Flow of Bar
and Chain Oil
Service Interval: Before each use or daily
1. Prepare to use the chain saw; refer to
Using the Chain Saw (page
2. To ensure that oil is flowing to the chain, point
the nose of the chain saw a few inches from a
27).
surface (e.g. paper, cardboard, a stump) and
run the chain saw; you should be able to see a
light spray of oil on the surface
g315840
1. Run the chain saw a few
inches from a surface.
3. If oil is not flowing, ensure that there is oil in the
tank and that the area under the side cover is
clean; refer to
Bar and Chain Oil (page 19)
Guide Bar, Chain, and Drive Sprocket (page
20
10).
(Figure
Figure 28
2. If the oil is flowing, it will
spray off the chain and
accumulate.
Checking the Oil Level and Adding
and Servicing the
Before
28).
g317663
22).
