Setup

Important:
The battery pack is not fully charged
when it is purchased. Before using the machine
for the first time, refer to
Pack (page 18).
Filling the Chain Saw with
Bar and Chain Oil
Important:
Use only bar and chain oil (sold
separately).
Fill the chain saw with bar and chain oil; refer to
Checking the Oil Level and Adding Bar and Chain
Oil (page 19).
Charging the Battery

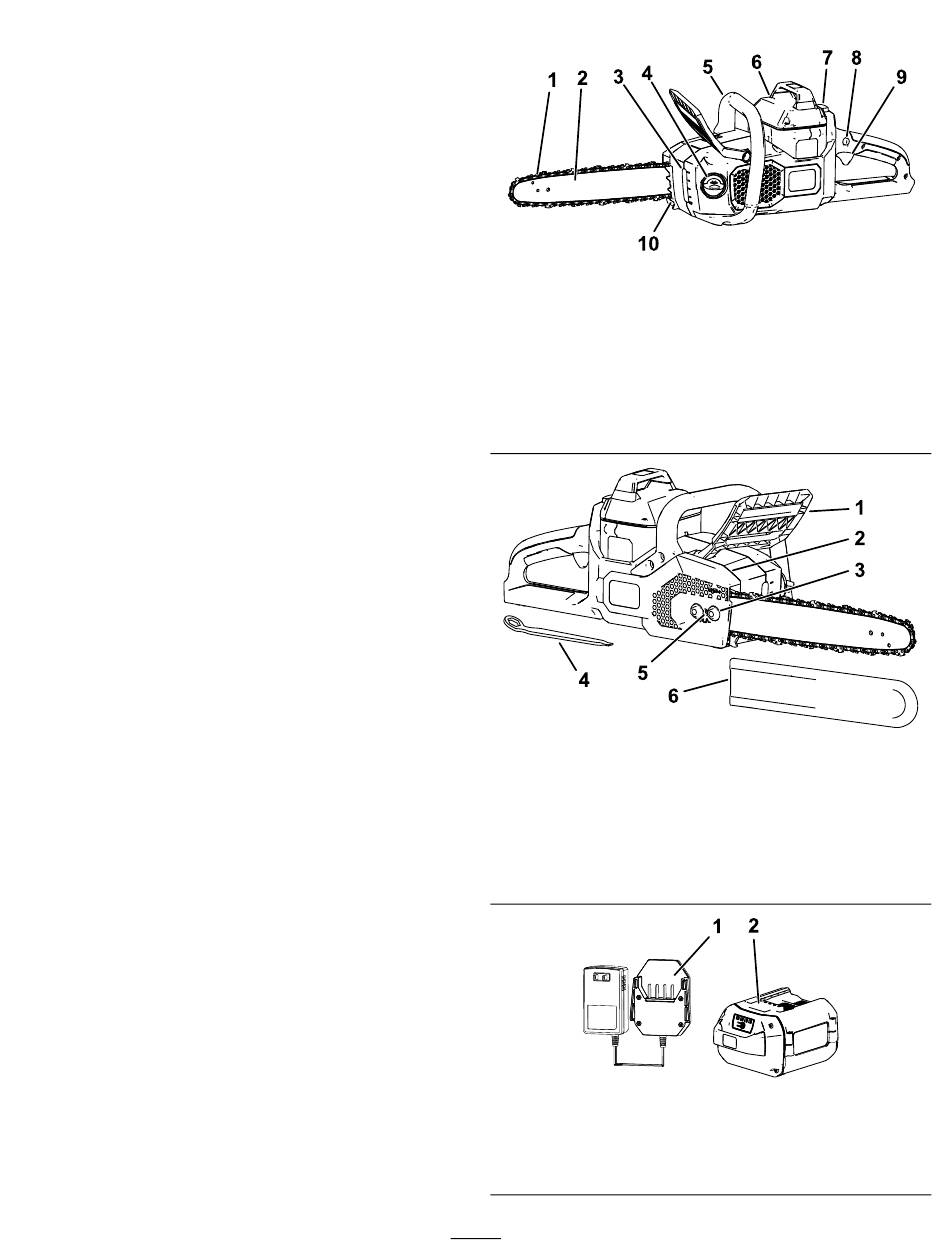

Product Overview

1. Chain
2. Guide bar
3. Oil window
4. Oil cap
5. Front handle
Right side shown
1. Chain brake
2. Side cover
3. Captive cover nut
1. Battery charger Model
88610 (included with
Model 51851)
9
Figure 4
Left side shown
6. Battery pack
7. Button latch
8. Trigger lock
9. Trigger
10. Bucking teeth
Figure 5
4. Multitool (located beneath
rear handle)
5. Chain tensioning screw
6. Guide bar cover
Figure 6
2. Battery pack Model 88620
(included with Model
51851)
